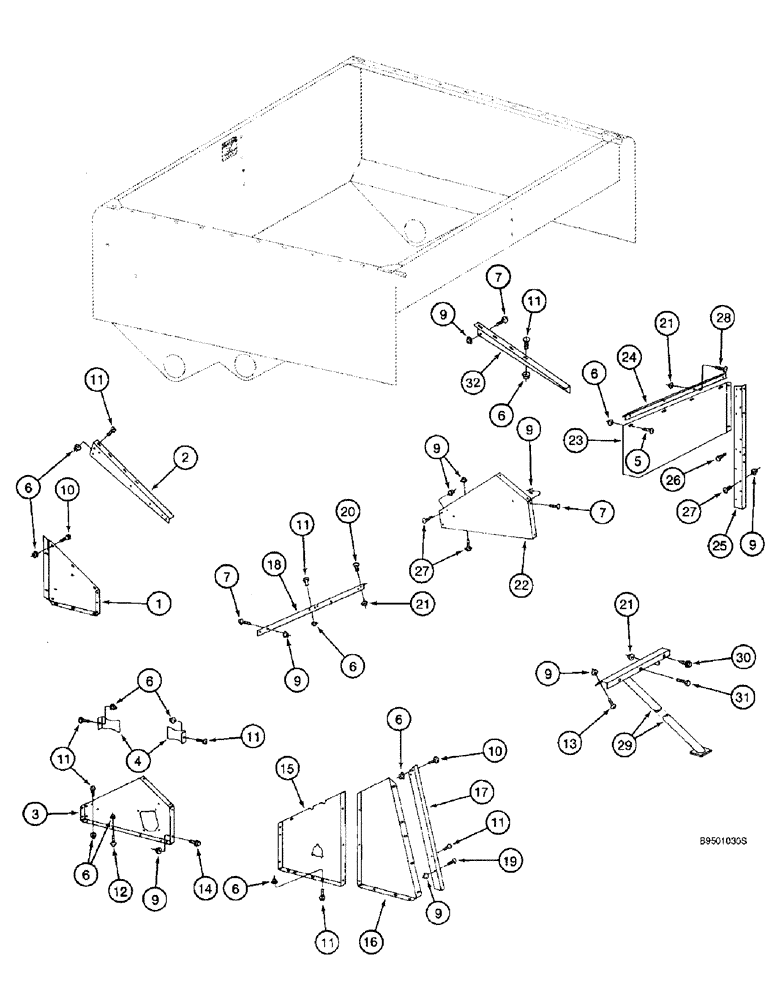

Запчасти Case IH 2166 (9E-04) - GRAIN TANK LOWER SUPPORTS (17) - GRAIN TANK & UNLOADER

1

176192A1

COVER

SUPPORT - grain tank, left-hand front

1шт.

2

192768C2

SUPPORT

- grain tank, diagonal left-hand

1шт.

3

192771C2

SUPPORT

- grain tank, center left-hand

1шт.

4

193531C1

SUPPORT

- filler

4шт.

5

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

7

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

9

231-5146

FLANGE NUT,3/8"-16

1шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

13

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

15

1347380C2

SUPPORT

- grain tank, left-hand rear

1шт.

16

192777C2

SUPPORT

- grain tank, left-hand rear

1шт.

17

192775C2

SUPPORT

- grain tank, vertical, left-hand rear

1шт.

18

192773C1

ANGLE

BRACKET - grain tank, lower left-hand rear

1шт.

19

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

20

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

1шт.

21

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

22

192772C2

SUPPORT

- grain tank, center right-hand

1шт.

23

192474C1

SUPPORT

- grain tank, right-hand

1шт.

24

192774C1

SUPPORT

- grain tank, lower right-hand rear

1шт.

25

181392C2

SUPPORT

- grain tank, vertical, right-hand rear

1шт.

26

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

16шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

28

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

1шт.

29

125382A1

SUPPORT

- grain tank, rear

1шт.

30

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

31

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

32

192769C2

SUPPORT

- grain tank, diagonal right-hand

1шт.

14

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.
