Запчасти Case IH 2166 (9D-22[01]) - KIT BEARING TAILINGS AUGER (16) - GRAIN ELEVATORS & AUGERS

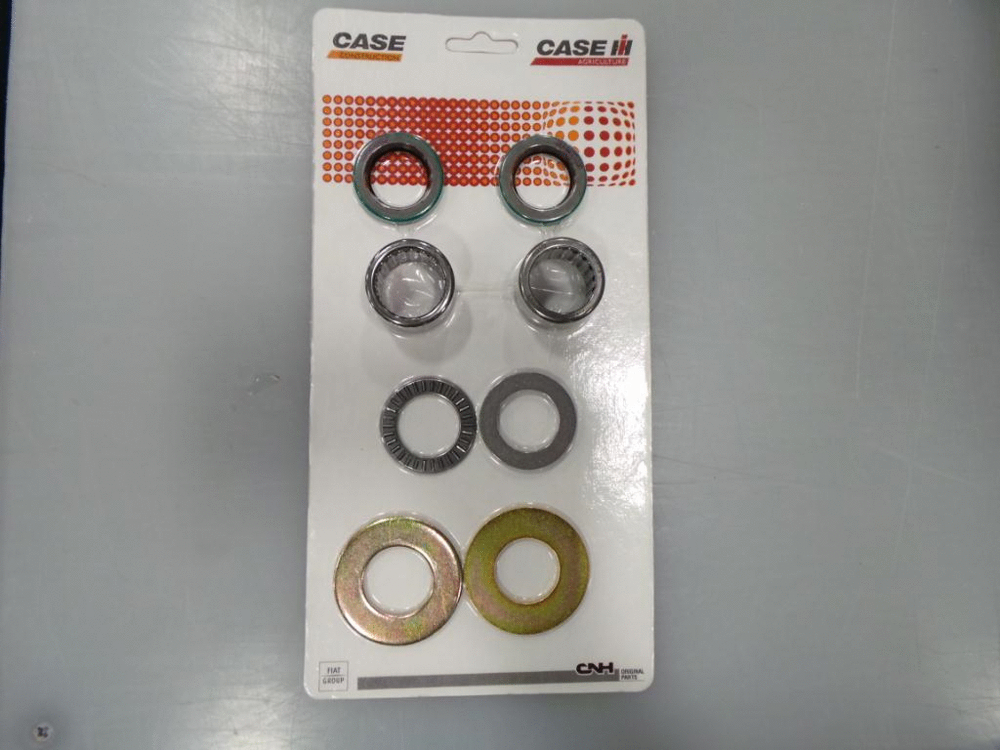

Схема запчастей Case IH 2166 - (9D-22[01]) - KIT BEARING TAILINGS AUGER (16) - GRAIN ELEVATORS & AUGERS

Артикул

Название

Примечание

Количество

1

B94599

KIT

Incl 2 - 7

1шт.

2

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

1шт.

3

495-81076

WASHER,26.19mm ID x 50.8mm OD x 1.7mm Thk

3шт.

4

564592R91

SEAL,23.5mm ID x 36.6mm OD x 6.5mm Thk

2шт.

5

574940R91

NEEDLE BEARING,Needle, 25.39mm ID x 33.35mm OD x 25.4mm W

2шт.

6

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

1шт.

7

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

2шт.

Выбрано товаров: 7
