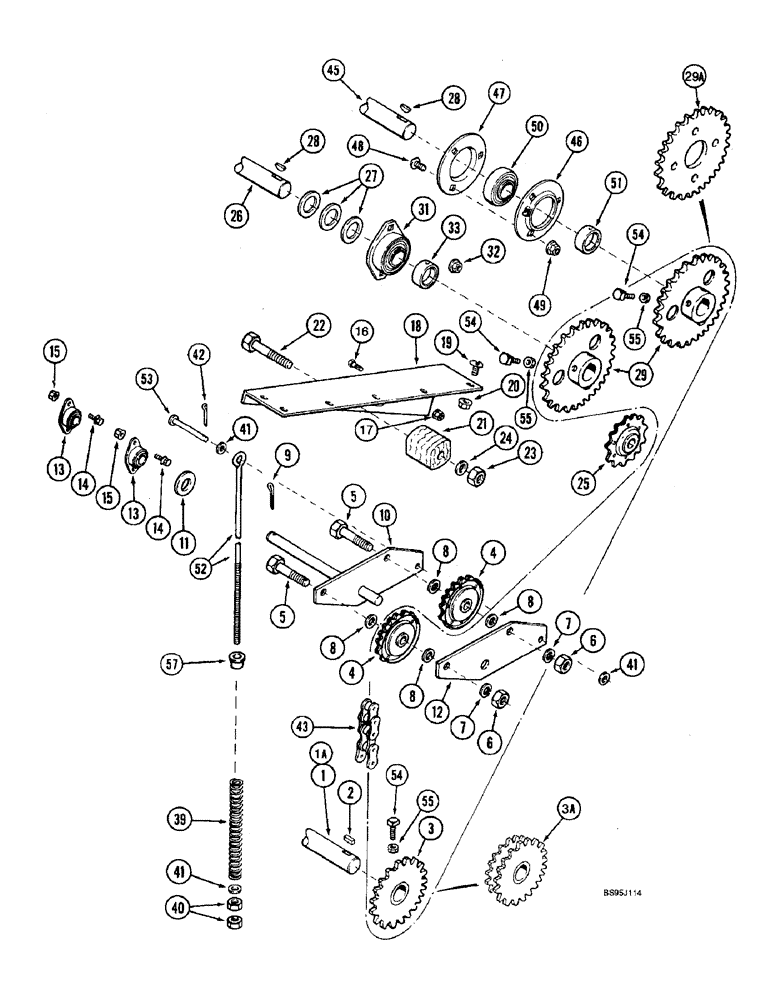

Запчасти Case IH 2166 (9D-18) - GRAIN ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS
№
Артикул
Название
Примечание
Количество
1
1321347C1
SHAFT
- elevator drive, jackshaft, prior to P.I.N. JJC0180000
1шт.
1a
195185A1
SHAFT
- elevator drive, jackshaft, P.I.N. JJC0180000 and after
1шт.
2
581306R1
KEY,5/16" Sq x 1 1/4", Par
2шт.
3
192139C2
SPROCKET
- drive, 25 teeth, if used
2шт.
4
631905R91
SPROCKET
- idler drive, 17 teeth
2шт.
5
413-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
- hex, 5/8 NC x 2-3/4 inch
2шт.
6
425-1010
NUT,5/8"-11, G5
2шт.
7
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
8
495-81175
WASHER,21/32" x 1" x .120"
- flat, 21/32 x 1 x 7/64 inch
4шт.
9
432-1224
COTTER PIN,3/16" x 1-1/2"
3/16" x 1 1/2"
1шт.
10
1345064C1
SUPPORT
- idler sprocket
1шт.
11
495-81041
WASHER,25/32" x 1 1/2" x .060"
- flat, 25/32 x 1-1/2 x 1/16 inch
1шт.
12
1345066C1
PLATE
- tightener support
1шт.
13
A63366
SPHERICAL BEARING,19mm ID
BEARING - pivot
2шт.
14
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
- hex serrated flange, 5/16 NC x 3/4 inch
4шт.
15
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
4шт.
16
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
- hex, 5/16 NC x 1 inch
1шт.
17
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
1шт.
18
1317476C3
ANGLE BAR
STIFFENER - block
1шт.
19
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch
6шт.
20
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
5шт.
21
582018R1
BLOCK
- tightener
2шт.
22
413-1056
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
2шт.
23
232-41110
NUT,5/8"-11, GC
NUT, LOCK, 5/8"-11, GC
2шт.
24
495-81175
WASHER,21/32" x 1" x .120"
- flat, 21/32 x 1 x 7/64 inch
2шт.
26
1317429C1
SHAFT
- headshaft sprocket
1шт.
27
495-81202
WASHER,1 9/32" x 1 3/4" x .060"
- flat, 1-9/32 x 1-3/4 x 1/16 inch
6шт.
28
126-125
WOODRUFF KEY,#B, 5/16" x 1", HT
2шт.
29
1317412C1
SPROCKET
- headshaft, 32 teeth, one used on inclined elevator
1-2шт.
29a
1321039C1
SPROCKET
- driven, 29 teeth, used on inclined elevator, See Figure 9D-24 for inclined delivery auger
1шт.
31
1317250C91
FLANGED BEARING,31.75mm ID
BEARING - headshaft
2шт.
32
231-5146
FLANGE NUT,3/8"-16
4шт.
33
557995R11
COLLAR
- bearing, with set screw
2шт.
39
523677R1
SPRING
- tightener
1шт.
40
425-106
NUT,3/8"-16, Cl 5
2шт.
41
495-71041
WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk
- flat, 13/32 x 1-1/4 x 3/32 inch
4шт.
42
432-612
COTTER PIN,3/32" x 3/4"
PIN , SPLIT (COTTER), 3/32" x 3/4"
1шт.
43
REF
INSTRUCTION
CHAIN - drive, 165 inch long, use 259 links of 1791D bulk chain, (3) 241-1315 connecting links and (2) 241-1115 roller links, use with horizontal delivery auger elevator
1шт.
43
1321307C91
CHAIN (AG)
CHAIN - drive, 153-3/4 inch long, use 241 links of 1791D chain, (3) 241-1315 connector links and (2) 241-1115 roller links, use with inclined delivery auger elevator
1шт.
45
1318912C3
AUGER
- delivery, horizontal, See Figure 9D-2, use with horizontal delivery auger elevator
1шт.
46
670375R11
FLANGE
- bearing, use with horizontal delivery auger elevator
1шт.
47
939461R1
FLANGE
- bearing, use with horizontal delivery auger elevator
1шт.
48
SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"
BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch, use with horizontal delivery auger elevator
3шт.
49
231-5146
FLANGE NUT,3/8"-16
Use with horizontal delivery auger elevator Flg, USR, 3/8"-16
3шт.
50
156011C92
BALL BEARING
BEARING - ball, use with horizontal delivery auger elevator
1шт.
51
557995R11
COLLAR
- bearing, with set screw, use with horizontal delivery auger elevator
1шт.
52
1345005C1
BOLT,3/8" - 16 x 815mm
ROD - chain tightener
1шт.
53
427-6240
CLEVIS PIN,9.53mm OD x 61.11mm L
PIN - clevis, 3/8 x 2-13/32 inch, hardened
1шт.
54
385-13820
SET SCREW,3/8" - 16 x 1-1/4"
SCREW - set, square head, 3/8 NC x 1-1/4 inch, cup point
2-4шт.
55
425-146
JAM NUT,3/8" - 16, Gr 5
- hex, jam, 3/8 inch NC
2-4шт.
57
S113843
BUSHING,9.65mm ID x 15.75mm OD x 15.75mm L
- chain tightener rod
1шт.
Выбрано товаров: 53
