Запчасти Case IH 2166 (9C-20) - LEFT-HAND INLET SHIELDS AND SEPARATOR (15) - BEATER & CLEANING FANS

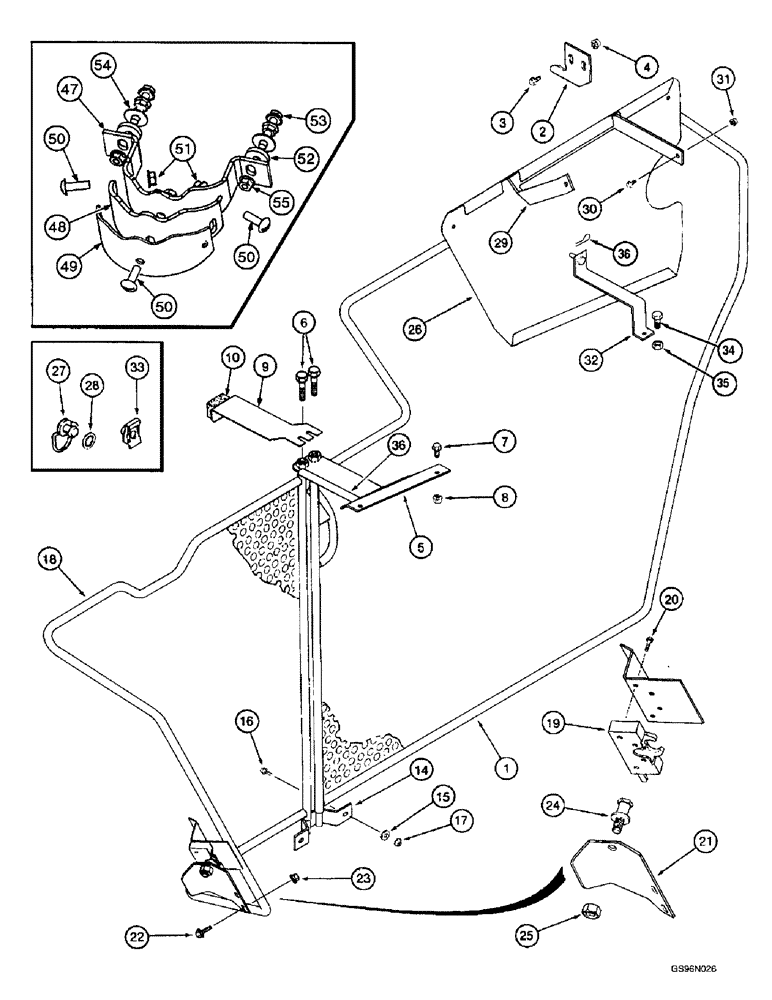

Схема запчастей Case IH 2166 - (9C-20) - LEFT-HAND INLET SHIELDS AND SEPARATOR (15) - BEATER & CLEANING FANS
9
30
1
34
8
24
2
17
4
16
54
33
29
10
31
14
36
28
47
6
3
15
52
35
26
18
53
49
50
51
32
27
48
5
36
7
21
20
23
22
25
50
19
50
55

Артикул

Название

Примечание

Количество

1

189385A2

GUARD

SHIELD - inlet, left-hand front, Includes: decals, See Figure 9H-37 for decals

1шт.

2

142532A2

SUPPORT

BRACKET - shield support, left-hand front

1шт.

3

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

5

143619A2

SUPPORT

- shield, left-hand upper

1шт.

6

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

9

143622A2

SUPPORT

BRACKET - left-hand support, bumper

1шт.

10

187885C1

SEALING STRIP

- 26 inch (660 mm) long, cut from 87281C1 bulk seal below

1шт.

14

142430A2

SUPPORT

- shield, left-hand lower

1шт.

15

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

18

143623A2

GUARD

SHIELD - inlet, left-hand rear

1шт.

19

141224A1

LATCH

- door

1шт.

20

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

21

143627A2

LARGE PLATE

PLATE - latch striker

1шт.

22

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

24

142903A1

BOLT,Hex, 1/2" - 13 x 2.048", W/ Wshr

BOLT - special, door latch striker

1шт.

25

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

26

243165A1

GUARD

SHIELD - unloader drive, Includes: decal, replaces seal 189307A1, use with support 243168A1, See Figure 9H-37 for decal

1шт.

27

178352A1

STUD

- bail style, slotted ring attaching, if used

1шт.

28

1981869C1

WASHER

WASHER - retainer, stud, if used

1шт.

29

185515A2

SUPPORT

- unloader drive shield

1шт.

30

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

31

231-5146

FLANGE NUT,3/8"-16

2шт.

32

185517A1

SUPPORT

- shield bracket, if used (See Note)

1шт.

When replacing support 185517A1, also order shield 243165A1, Ref. 26.

1шт.

32

243168A1

SUPPORT

- shield, use with 610784R1

1шт.

33

A36042

CLIP

RETAINER - quarter turn

1шт.

34

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

36

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - locking, use with support 243168A1

1шт.

87281C1

RUBBER STRIP,38mm W x 749mm L x 19mm Thk

- bulk, 600 inch (15240 mm) long

1шт.

37

229268A1

LARGE PLATE

BRACKET - latch support, not shown

1шт.

38

188103C1

BRACKET

- hood anchor, not shown

1шт.

39

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

PIN, HEADED, , Not shown 1/4" x 1 1/2", G2

1шт.

40

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , Not shown 1/8" x 3/4"

1шт.

41

494307C1

LATCH

HOOK - hold down, latch, not shown

1шт.

42

L105124

LATCH HOOK

HOOK - latch, not shown (Replaces hook 764071C1)

1шт.

43

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch, not shown

2шт.

44

231-51409

SERRATED NUT,Flg, USR, #10-24

Not Shown Flg, USR, #10-24

2шт.

45

241070A1

SUPPORT

BRACKET - left-hand shield, not shown, no longer available, order kit 252272A2 below

1шт.

46

126046A1

GASKET,287.02mm L

TRIM - edge, black, 11-1/2 inch (292 mm) long, cut from 1330108CX bulk trim below

1шт.

252272A2

PACKAGE

KIT - shield index, left-hand, Includes: Ref. 47 - 55 instructions

1шт.

47

241070A2

SUPPORT

BRACKET - shield index, left-hand

1шт.

48

246444A2

INDEX

- left-hand

1шт.

49

251517A1

SUPPORT

RETAINER - left-hand shield index

1шт.

50

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

- slotted, 5/16 NC x 1 inch

3шт.

51

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

52

251987A1

RUBBER WASHER

- rubber

2шт.

53

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

- hex serrated flange, 5/16 NC x 1 inch

2шт.

54

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

2шт.

55

231-5345

FLANGE NUT,Flg, 5/16"-18

NUT - hex flange, self-locking, 5/16 inch NC

2шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long

1шт.

Выбрано товаров: 57
