Запчасти Case IH 2166 (9C-10) - CLEANING FAN, SHAFT AND SUPPORTS (15) - BEATER & CLEANING FANS

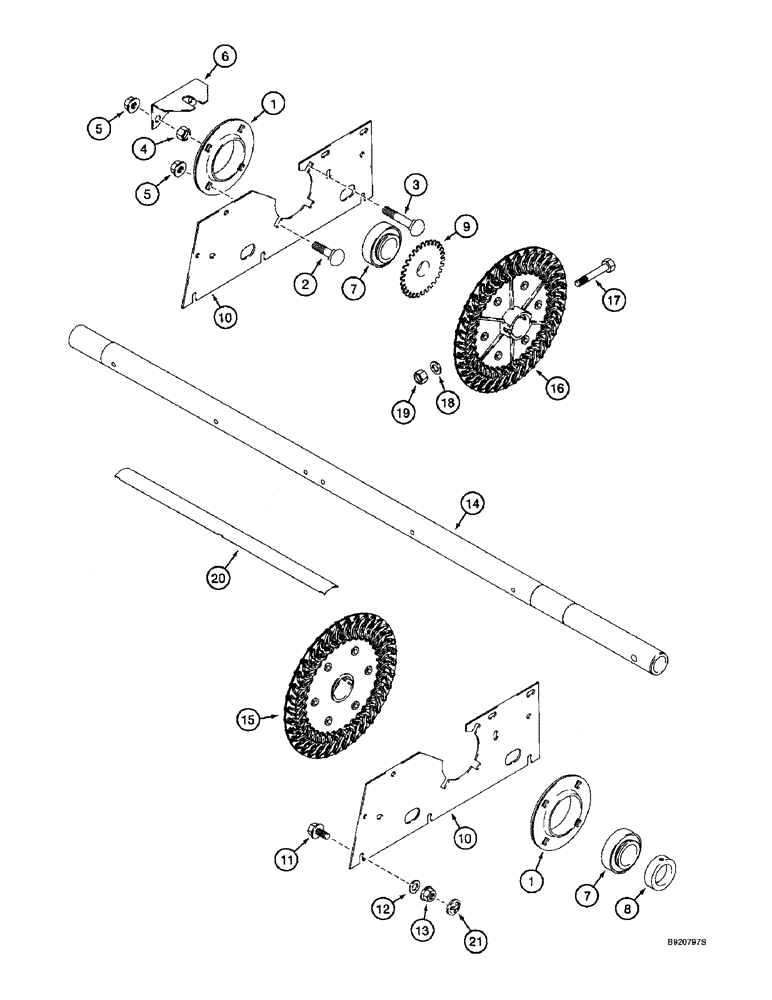

Схема запчастей Case IH 2166 - (9C-10) - CLEANING FAN, SHAFT AND SUPPORTS (15) - BEATER & CLEANING FANS
18
21
17
3
1
16
2
15
12
5
7
10
11
14
5
8
6
20
10
1
4
13
7
9
19

Артикул

Название

Примечание

Количество

1

76079C1

FLANGE

- fan shaft bearing

4шт.

2

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

6шт.

3

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

6

1541554C1

SUPPORT

BRACKET - mounting

1шт.

7

668719R92

BEARING ASSY,1.7505" ID x 3.346" OD x 1.1875" Thk

BEARING - ball

2шт.

8

582816R11

COLLAR

- bearing lock, Includes: set screw

1шт.

9

1541555C1

SPROCKET

- fan speed tachometer

1шт.

10

120870A1

SUPPORT

- fan shaft bearing, Includes: decal, See Figure 9H-37 for decal

2шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

12

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

6шт.

13

231-5146

FLANGE NUT,3/8"-16

6шт.

1541935C2

FAN

ASSEMBLY - cleaning, Includes: Ref. 14 - 20

1шт.

14

1989550C2

SHAFT

- cleaning fan

1шт.

15

1541570C1

FAN BLADE

- fan blade, LH

3шт.

16

1541560C1

FAN BLADE

- fan blade, RH

3шт.

17

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

6шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

12шт.

19

230-4115

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

6шт.

20

1541631C1

PADDLE

BLADE - cleaning fan

72шт.

21

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

3шт.

Выбрано товаров: 22
