Запчасти Case IH 2166 (9C-08) - CLEANING FAN, HOUSING (15) - BEATER & CLEANING FANS

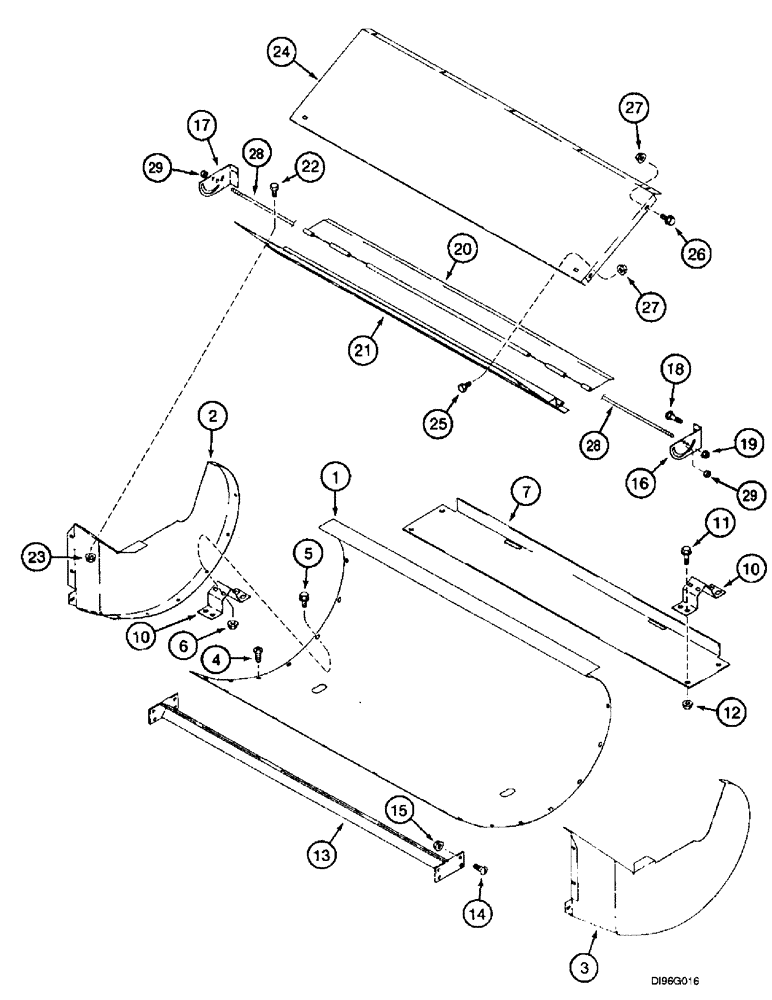

Схема запчастей Case IH 2166 - (9C-08) - CLEANING FAN, HOUSING (15) - BEATER & CLEANING FANS
26
22
12
23
29
29
11
16
3
17
28
1
10
7
13
19
18
20
28
5
27
15
10
25
21
27
24
6
4
2
14

Артикул

Название

Примечание

Количество

1

1989379C1

HOUSING

- cleaning fan

1шт.

2

1347012C2

PLATE

- end, left-hand

1шт.

3

1347013C2

PLATE

- end, right-hand

1шт.

4

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

14шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

9шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

21шт.

7

1541641C2

SUPPORT

- housing mounting brackets, front

1шт.

10

1541543C1

BRACKET

- mounting, fan housing, front

2шт.

11

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

4шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

13

191703C3

SUPPORT ASSY.

SUPPORT - fan housing, rear

1шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

16

1989694C1

LARGE PLATE

PLATE - lock, fan cutoff, right-hand (Replaces plate 1541536C1)

1шт.

17

1989693C1

LARGE PLATE

PLATE - lock, fan cutoff, left-hand (Replaces plate 1541535C1)

1шт.

18

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

20

1989611C1

HOOD

PLATE - fan cutoff

1шт.

21

1541628C1

HOOD

DOOR - cleaning fan

1шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

24

1989377C2

SUPPORT

PLATE - filler

1шт.

25

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

7шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

9шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

16шт.

28

185198C1

ROD

- door, auger trough

1шт.

29

231-5345

FLANGE NUT,Flg, 5/16"-18

NUT - hex flange, self-locking, 5/16 inch NC

2шт.

Выбрано товаров: 27
