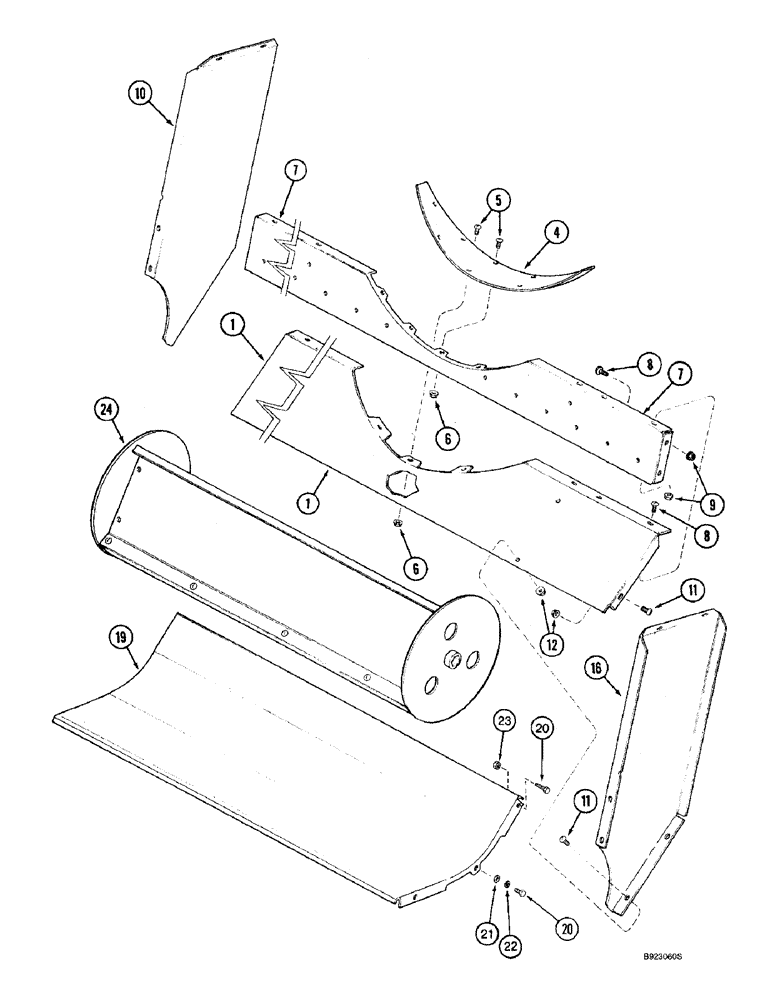

Запчасти Case IH 2166 (9C-04) - DISCHARGE BEATER PAN, CORN AND GRAIN, FIXED (15) - BEATER & CLEANING FANS

1

192028C2

SUPPORT

- beater discharge

1шт.

4

193909C2

SUPPORT

- beater pan, front

1шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

9шт.

6

231-5146

FLANGE NUT,3/8"-16

9шт.

7

182929C1

SUPPORT

- cage, lower rear

1шт.

8

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

10шт.

9

231-5146

FLANGE NUT,3/8"-16

10шт.

10

193452C1

DEFLECTOR

- discharge, left-hand

1шт.

11

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

12шт.

12

231-5146

FLANGE NUT,3/8"-16

12шт.

16

193453C1

DEFLECTOR

- discharge, right-hand

1шт.

19

195426C3

SUPPORT ASSY.

PAN - beater

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

21

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

24

REF

INSTRUCTION

BEATER - discharge, See Figure 9C-02

1шт.
