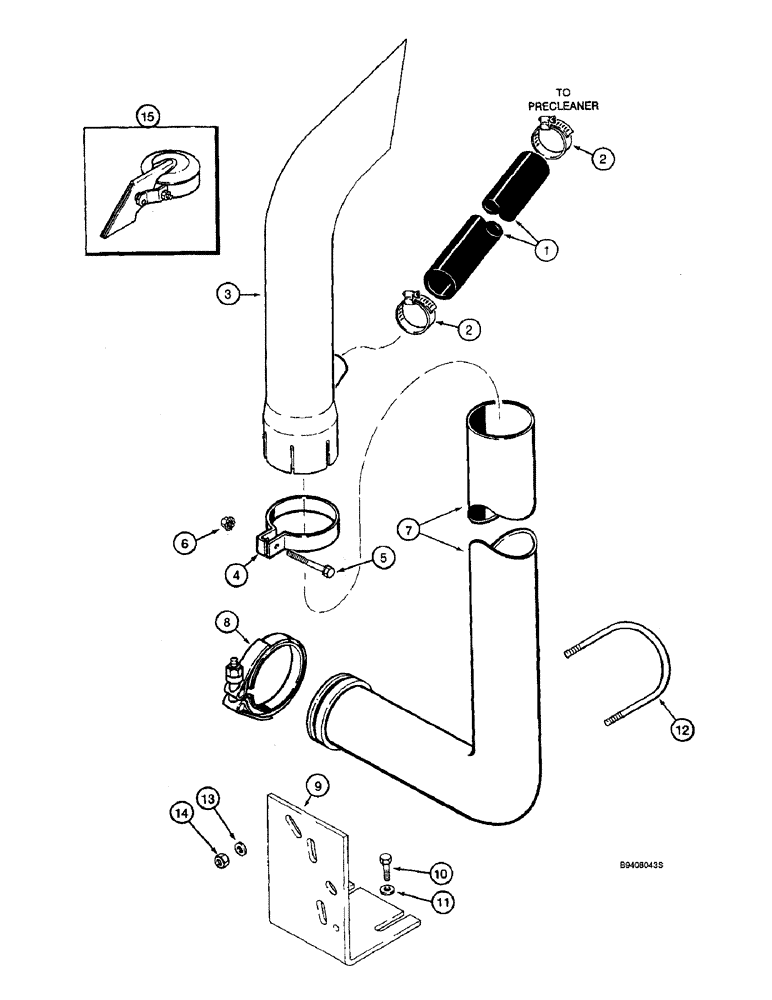

Запчасти Case IH 2166 (2-18) - EXHAUST SYSTEM, PRIOR TO COMBINE P.I.N. JJC0180000 (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

HOSE - exhaust aspirator, 10 inch (254 mm) long, cut from 407001R1 bulk hose below

1шт.

2

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

3

116706A1

TUBE,228.6, 203.2 mm Length

- exhaust aspirator top

1шт.

4

1321280C2

CLAMP,92mm

- exhaust pipe

1шт.

5

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

1шт.

6

231-5146

FLANGE NUT,3/8"-16

1шт.

7

116708A1

TUBE,88.77 mm OD, 491, 290 mm Length

- exhaust aspirator

1шт.

8

A170807

CLAMP,102mm ID

retaining, special

1шт.

9

84569C8

SUPPORT TUBE

BRACKET - tube support

1шт.

10

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

11

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

12

S93558

U-BOLT

- 3/8 inch NC

1шт.

13

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

14

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

15

1541961C2

CAP

- exhaust pipe, if used

1шт.

407001R1

HOSE,31.75mm ID x 914.4mm L, SAE 20R1

- bulk, (1-1/4) ID 32 x 36 inch (914 mm) long

1шт.
