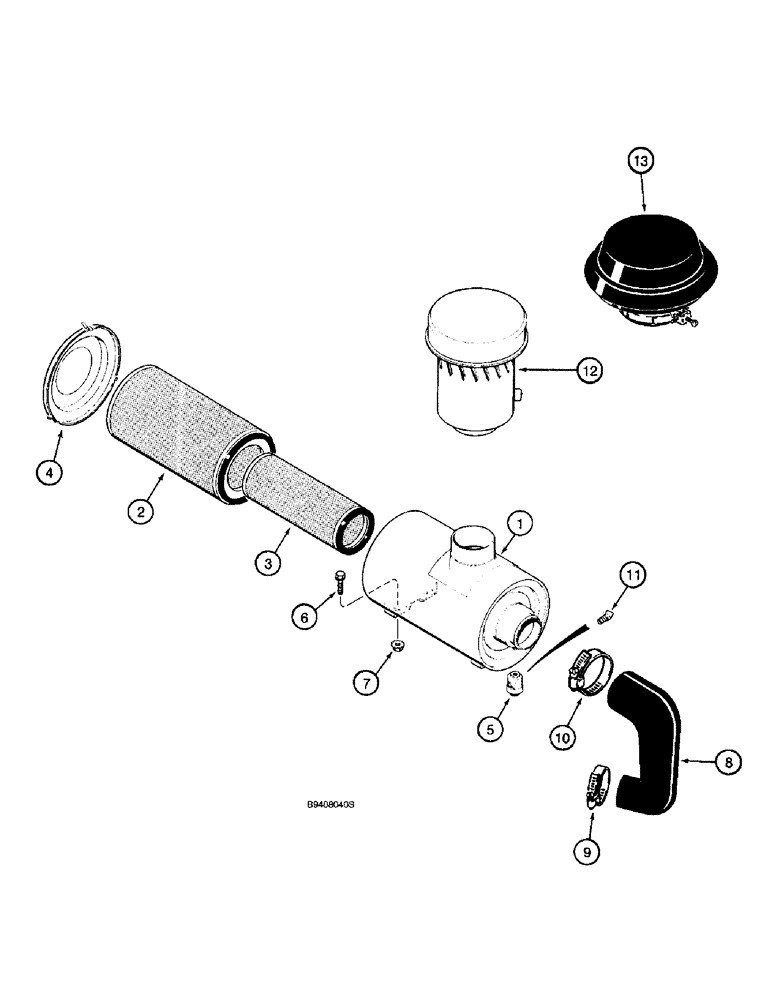

Запчасти Case IH 2166 (2-14) - AIR CLEANER (01) - ENGINE

117408A2

AIR CLEANER

CLEANER ASSEMBLY - air, engine, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner, order cleaner assembly 117408A2

1шт.

2

132151A1

AIR FILTER

ELEMENT - primary

1шт.

3

132149A1

AIR FILTER

ELEMENT - secondary

1шт.

4

134610A1

COVER

- end, air cleaner

1шт.

5

1541610C1

INDICATOR

- air restriction

1шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

Air induction system Hex Flg, 3/8"-16 x 3/4", Serr

4шт.

7

231-5146

FLANGE NUT,3/8"-16

Air induction system Flg, USR, 3/8"-16

4шт.

8

118094A1

INTAKE AIR HOSE,102.00 mm ID, 152.00 mm ID x 326.00 mm

HOSE - turbo inlet, air induction system

1шт.

9

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adjustable, Air Induction System 4.25/5.125 HD Worm, W/liner

1шт.

10

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Air induction system 6.25/7.125 HD Worm, W/liner

1шт.

11

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street, Air induction system 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

12

117407A1

PRECLEANER

- air induction, Includes: clamp and hardware, system

1шт.

During transport only, remove 117407A1 precleaner and replace with 9-128 cap to meet height regulations.

1шт.

13

9-128

CAP

- precleaner, air induction system

1шт.

During transport only, remove 117407A1 precleaner and replace with 9-128 cap to meet height regulations.

1шт.
