Запчасти Case IH 2166 (9B-22) - CAGE, REAR (14) - ROTOR, CONCANVES & SIEVE

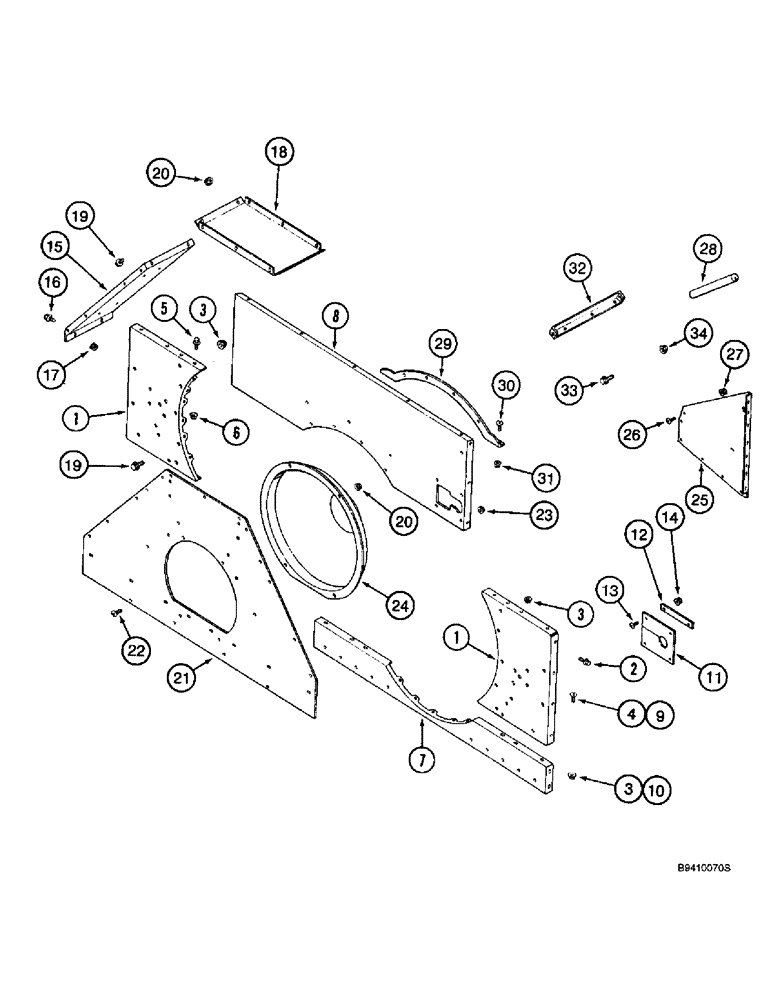

Схема запчастей Case IH 2166 - (9B-22) - CAGE, REAR (14) - ROTOR, CONCANVES & SIEVE
11
19
10
22
3
3
31
21
20
2
30
33
1
26
6
28
34
16
5
13
12
27
14
17
24
32
1
7
25
29
9
3
4
8
20
18
15
19
23

Артикул

Название

Примечание

Количество

1

1994850C2

SUPPORT

- rotor cage, rear

2шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

16шт.

3

231-5146

FLANGE NUT,3/8"-16

24шт.

4

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

8шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

12шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

7

182929C1

SUPPORT

- cage, lower rear

1шт.

8

176202A1

SHEET

SUPPORT - rotor, upper rear

1шт.

9

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

23шт.

10

231-5146

FLANGE NUT,3/8"-16

23шт.

11

191191C2

GASKET,6.35mm Thk

SEAL - dust, drive line

1шт.

12

191192C1

BAR

- dust seal

2шт.

13

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

15

193169C1

SUPPORT

- discharge side

2шт.

16

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

12шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

18

193170C1

COVER

- discharge top

1шт.

19

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

10шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.

21

193966C1

PLATE

- discharge back

1шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

9шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

24

182545C2

HOUSING

RETAINER - rotor gear housing

1шт.

25

191398C2

SHEET

SUPPORT - gear housing inner

1шт.

26

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

27

231-5146

FLANGE NUT,3/8"-16

4шт.

28

191498C1

SEALING STRIP

SEAL - gear housing support, 20-13/16 inch (528 mm) long, if used

1шт.

29

1308695C1

SUPPORT

- rotor rear upper

1шт.

30

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

7шт.

31

231-5146

FLANGE NUT,3/8"-16

7шт.

32

182634C3

SUPPORT

STIFFENER - cage grate, rear

1шт.

33

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1 inch

2шт.

34

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

Выбрано товаров: 34
