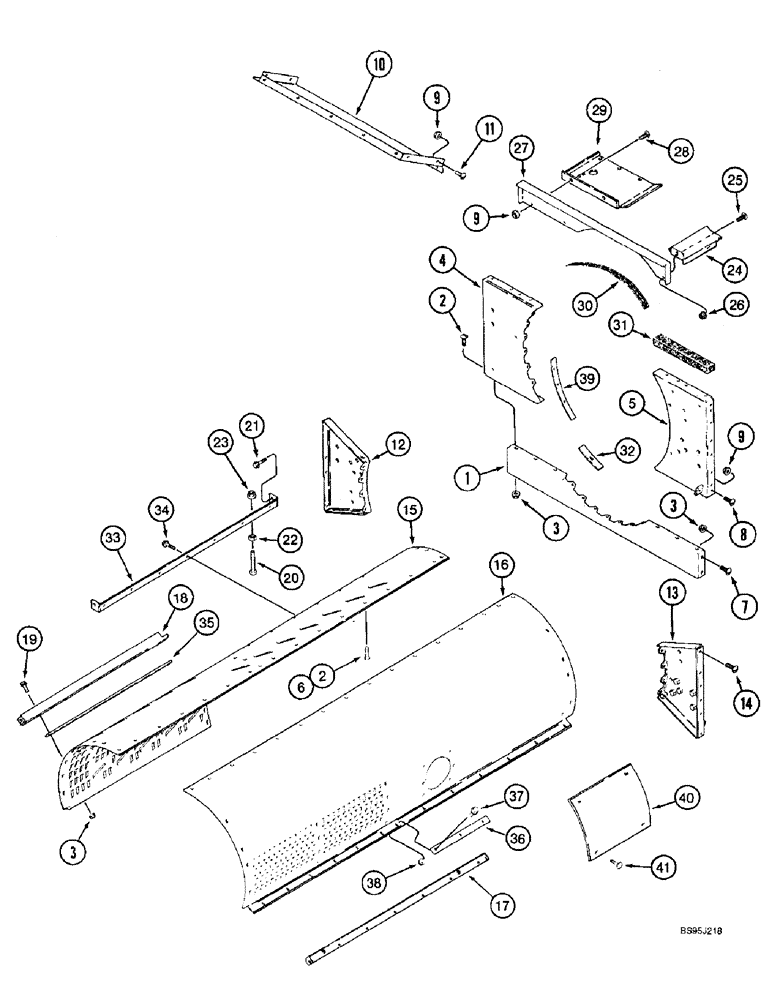

Запчасти Case IH 2166 (9B-20) - CAGE, FRONT (14) - ROTOR, CONCANVES & SIEVE

1

192297C2

SUPPORT

- lower seal

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

4

1994848C1

SUPPORT

- rotor cage, left-hand front

1шт.

5

1338045C2

SUPPORT

- rotor cage, right-hand front

1шт.

6

139727A1

SERRATED SCREW,Truss HD, 3/8" x 1"

BOLT - round head, special, 3/8 NC x 1 inch

6шт.

7

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

8шт.

8

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

12шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

10

176195A1

SUPPORT

- grain tank, front

1шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

9шт.

12

1338056C1

SUPPORT

- rotor cage, left-hand intermediate

2шт.

13

1338044C1

SUPPORT

- rotor cage, right-hand intermediate

1шт.

14

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

18шт.

15

1318829C1

CAGE

SUPPORT - rotor, left-hand

1шт.

16

1318419C2

CAGE

SUPPORT - rotor, right-hand

1шт.

17

188333C1

SUPPORT

- cage, right-hand

1шт.

18

185386C1

SUPPORT

- cage, left-hand

1шт.

19

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT - hex flange, special, 3/8 NC x 1 inch

15шт.

20

931008R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

- hex, 1/2 NC x 3-1/2 inch

2шт.

21

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1 inch

2шт.

22

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

23

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

24

193862C1

SUPPORT

- gear housing inner extension

1шт.

25

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

3шт.

26

488837C1

SPRING NUT

- speed, 5/16 inch

2шт.

27

186169C1

SUPPORT

- grain, Serial Range: tank-cage

1шт.

28

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

10шт.

29

186168C4

SHEET

SUPPORT - side, Serial Range: panel-cage

1шт.

30

191498C1

SEALING STRIP

SEAL - grain tank support, 20-13/16 inch (528 mm) long

1шт.

31

318103R2

SEAL

- grain tank support, 9-1/2 inch (243 mm) long, cut from 73220C1 bulk seal below

2шт.

32

186797C2

SUPPORT

PLATE -

1шт.

33

1309191C1

SUPPORT

- cage, left-hand

1шт.

34

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT - hex flange, special, 3/8 NC x 1 inch

5шт.

34

135320A1

SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - round head, special, 3/8 NC x 1-1/4 inch

2шт.

35

183323C1

STRAP

BAR - cage grate

1шт.

36

186785C2

REINFORCEMENT

BAR - cage reinforcement, front

1шт.

37

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1 inch

1шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

39

1318899C1

SUPPORT

- rotor cage, left-hand front

1шт.

40

1979540C1

COVER

- rotor separator, upper right-hand

2шт.

41

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

- flat raised head, special

8шт.

73220C1

FILLING STRIP

SEAL - bulk, adhesive-backed, 1/2 (13) x 3/4 (19) x 48 inch (1219 mm) long

1шт.
