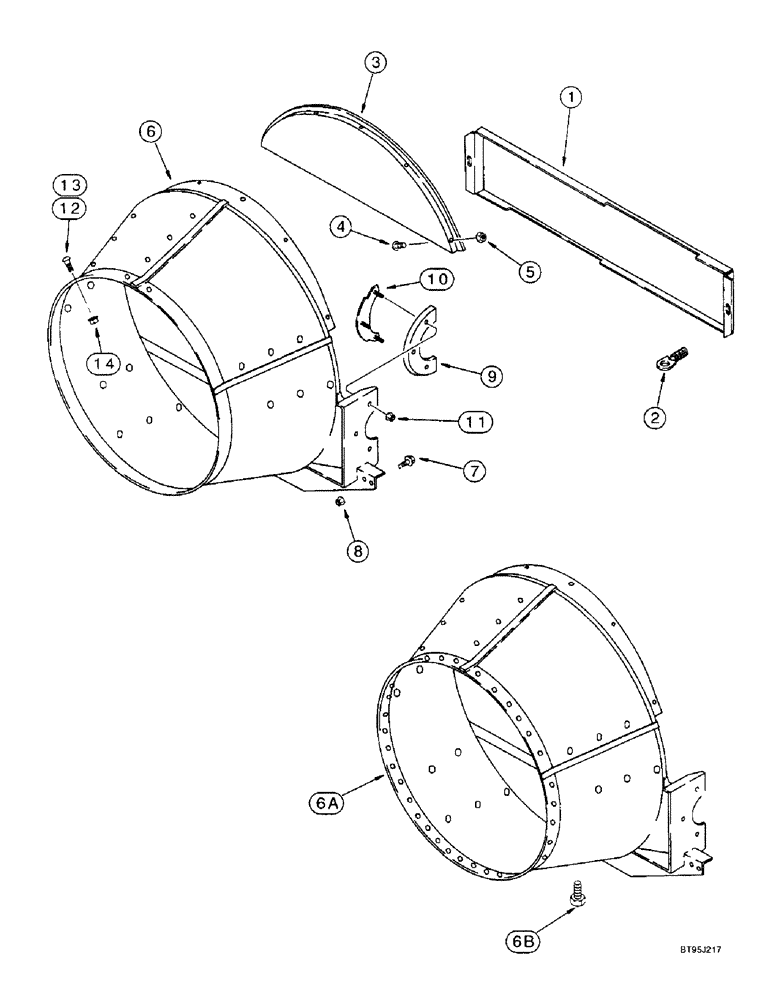

Запчасти Case IH 2166 (9B-18) - CONE (14) - ROTOR, CONCANVES & SIEVE

1

137607A2

TRAP DOOR

PANEL - rotor, front

1шт.

2

188029C1

LATCH

- separator, front door

2шт.

3

1302515C1

DOOR

- rotor, front, support

1шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

5шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

6

1317770C3

CONE

- transition, corn and grain, no longer available, order cone assembly 194047A2, Ref. 6A

1шт.

6

1309419C2

CONE

- transition, rice, if used

1шт.

6a

194047A2

CONE

ASSEMBLY - transition, Includes: bolt, corn and grain, if used

1шт.

6a

198101A2

CONE

ASSEMBLY - transition, Includes: bolt, rice, if used

1шт.

6b

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

- hex, 1/2 NC x 1/2 inch

1шт.

7

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

9

195202C1

SEAL

- feeder

2шт.

10

195409C1

PLATE

- with weld bolt, seal backup

2шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

12

135320A1

SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - round head, special, 3/8 NC x 1-1/4 inch

2шт.

13

139727A1

SERRATED SCREW,Truss HD, 3/8" x 1"

BOLT - round head, special, 3/8 NC x 1 inch

17шт.

14

231-5146

FLANGE NUT,3/8"-16

19шт.

252276A1

PACKAGE

KIT - seal, rotor front door, Includes: instructions

1шт.
