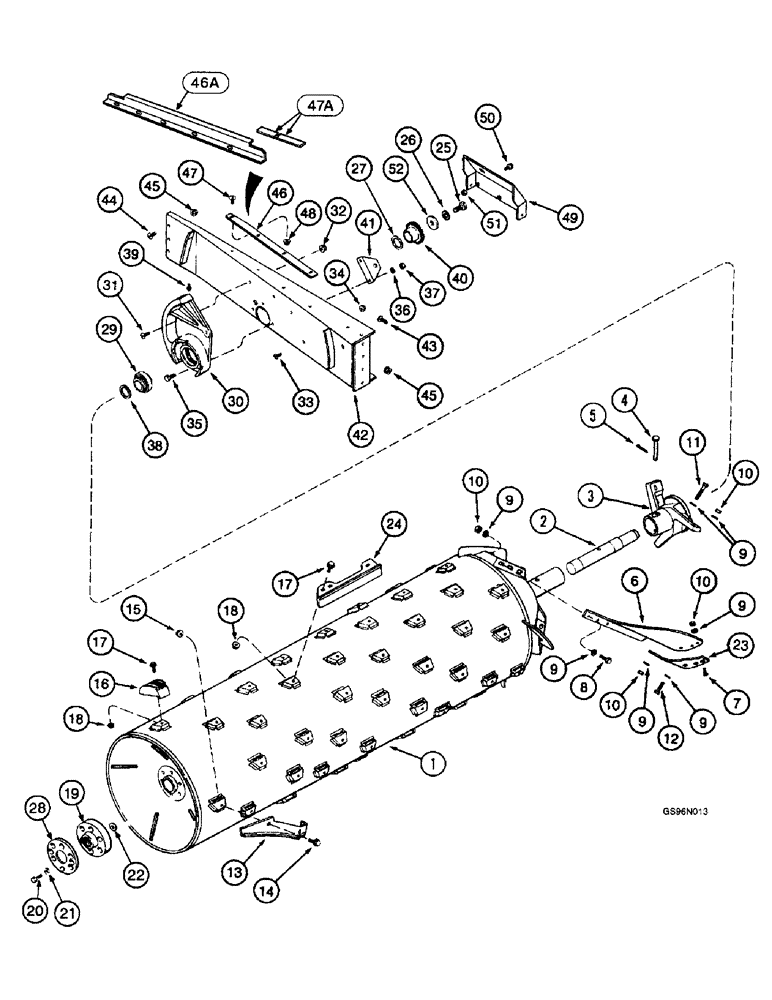

Запчасти Case IH 2166 (9B-14) - ROTOR, SPECIALTY CROP (14) - ROTOR, CONCANVES & SIEVE

1347121C2

ROTOR

ASSEMBLY - threshing, without spiked bars, Includes: Ref. 1 - 28

1шт.

1317405C92

ROTOR

ASSEMBLY - threshing, with spiked bars, rice, Includes: Ref. 1 - 28

1шт.

104347A1

ROTOR

ASSEMBLY - threshing, without spiked bars, corn and edible bean, no longer available, order rotor assembly 1347121C2 and change out rasp bars, Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

ROTOR - threshing, order rotor assembly

1шт.

2

191545C2

SHAFT

- rotor, front

1шт.

3

191546C2

IMPELLER

- rotor, front

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

PIN - headed, 3/4 x 4-1/2 inch

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

1957446C3

SET OF BLADES

KIT - rotor blade, set of 3, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

BLADE - rotor, order kit 1957446C3

3шт.

7

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT - hex socket, 1/2 NC x 1-1/2 inch

9шт.

8

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

9шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

1шт.

10

199528A1

NUT

- hex, self-locking, 1/2 inch NC, grade 8

24шт.

11

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

3шт.

12

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

3шт.

13

1317690C1

ANGLE

- kicker

3шт.

13

1968967C2

BAR

ANGLE - kicker, chrome

3шт.

14

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex flange, 1/2 NC x 1-1/4 inch, grade 8

6шт.

15

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

6шт.

16

1309336C1

BAR

- rasp, without spike, rice

33шт.

16

1309175C1

BAR

- rasp, with spike, rice

21шт.

16

1309336C1

BAR

- rasp, without spike, edible bean

48шт.

16

1968743C2

BAR

- rasp, without spike, chrome, edible bean

48шт.

16

1309336C1

BAR

- rasp, without spike, corn and edible bean

42шт.

16

111709A1

RASP BAR

BAR - rasp, without spike, corn

42шт.

16

1968743C2

BAR

- rasp, without spike, chrome

33шт.

17

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex flange, 1/2 NC x 1-1/4 inch, grade 8

1шт.

18

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

1шт.

19

1345307C1

COUPLING

- rotor drive

1шт.

20

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

6шт.

21

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

6шт.

22

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- flat, hardened, special, 17/32 x 1-1/2 x 1/8 inch

6шт.

23

1309185C3

BAR

PLATE - wear, chrome

3шт.

24

1318976C2

BAR,Straight Seperator

- separator

3-6шт.

24

1968969C3

BAR

- separator, chrome

3шт.

25

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

- hex, 3/4 NC x 1-3/4 inch, grade 2

1шт.

26

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

27

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

28

221189A1

SPACER

PLATE - rotor load ring, rear drive

1шт.

1345453C1

RUBBER INSULATOR

INSULATOR - rotor drive coupling, not used, not shown

1шт.

140500A1

PACKAGE

KIT - rotor drive hub update

1шт.

29

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

BEARING - rotor front

1шт.

30

1309076C1

BEARING HOUSING

- rotor front bearing

1шт.

31

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

32

231-5146

FLANGE NUT,3/8"-16

2шт.

33

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

2шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

35

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

37

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

38

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER - flat, special

1шт.

39

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

40

1979965C1

ROTOR

- multi-position tachometer

1шт.

41

1301239C1

BRACKET

- rotor tachometer

1шт.

42

193163C8

SUPPORT

- front bearing, if used

1шт.

43

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

4шт.

44

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex flange, 1/2 NC x 1-1/4 inch, grade 8

3шт.

45

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

7шт.

46

1308967C1

BAR

- front door hold-down, if used

1шт.

46a

231850A1

BAR

- rotor front, if used

1шт.

47

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch, four used with bar 1308967C1, Ref. 46; five used with retainer 231850A1, Ref. 46A

1шт.

47a

231851A1

DOOR SEAL,828mm L

- rotor, adhesive-backed, used with retainer 231850A1, Ref. 46A

1шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, Four used with bar 1308967C1, Ref. 46; five used with retainer 231850A1, Ref. 46A

1шт.

49

182845C4

SHIELD

- sensor

1шт.

50

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

51

131-872

SPRING NUT,Ret, 3/8"-16

- hex, 3/8 inch NC

3шт.

52

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

- flat, special, 25/32 x 2-1/2 x 1/4 inch, rotor front shaft

1шт.
