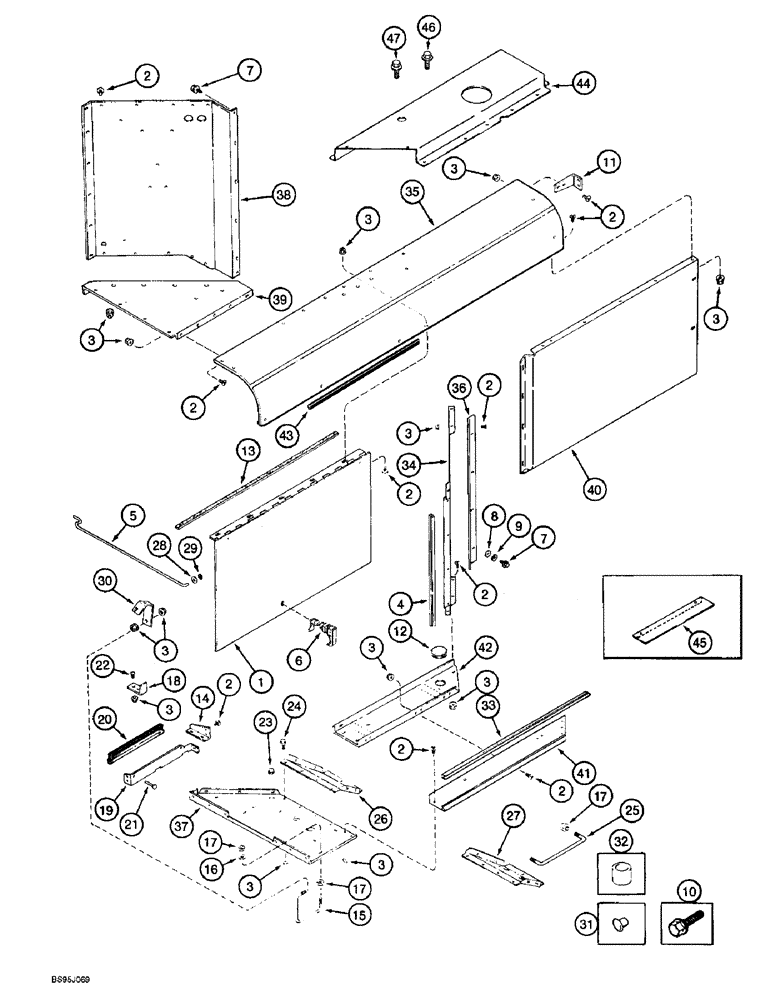

Запчасти Case IH 2166 (2-13A) - ROTARY AIR SCREEN CHUTE, COMBINE P.I.N. JJC0180000 AND AFTER (01) - ENGINE

1

1979861C2

TRAP DOOR

DOOR - radiator access

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

57шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

89шт.

4

1347460C1

DOOR SEAL,648mm L

- radiator access door, side, 25-1/8 inch (648 mm) long

2шт.

5

1979919C1

STEM

ROD - door

1шт.

6

1302494C2

LATCH

- access door

1шт.

7

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

20шт.

8

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

11шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

10

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

13шт.

11

1317704C1

SUPPORT

- top chute mounting

1шт.

12

1302758C1

PLUG

- plastic, 89 mm OD

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - door hinge, 37-1/2 inch (953 mm) long, cut from 1338148CX bulk seal below

1шт.

14

1968548C1

SUPPORT

BRACKET - chute, discharge side

1шт.

15

1979918C1

HANDLE

- assist

1шт.

16

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch

1шт.

17

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

18

1347430C1

SUPPORT

BRACKET - latch retainer

1шт.

19

1968546C2

SUPPORT

- discharge chute

1шт.

20

1338012C1

BRUSH, COMMUTATOR

BRUSH - block off

1шт.

21

151-507

RIVET,Pop, 1/8" x .575"

- break mandrel, 1/8 x 1/2 inch

2шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

5шт.

23

1970461C1

GROMMET

- rubber, 1-3/8 x 2 x 5/16

2шт.

24

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

If used Hex Flg, 5/16"-18 x 1/2", Serr

6шт.

25

182995A1

BAR

HANDLE - assist

1шт.

26

1315674C2

SUPPORT

- chute, lower rear, corn and grain combines only

1шт.

27

1979728C2

SUPPORT

- chute, lower rear, rice combines only

1шт.

28

95-21044

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch

3шт.

29

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

1шт.

30

1347199C2

GUIDE

- radiator door

1шт.

31

205-77

HOLE PLUG BUTTON,11/32"

PLUG - button, 11/32 inch ID

2шт.

32

D81147

SPACER

- 1/2 x 3/4 x 1-1/4 inch

1шт.

33

221469A1

DOOR SEAL

- radiator access door, lower, 40-1/4 inch (1022 mm) long, cut from 1319691C1 bulk seal below

1шт.

1338148CX

SEAL

- bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.

1319691C1

SEAL

SEAL - 46-1/2 inch (1180 mm) long

1шт.

34

195083A3

DEFLECTOR

- screen chute

1шт.

35

195080A4

GUIDE

CHUTE - air screen, upper

1шт.

36

195084A2

ANGLE BAR

SUPPORT - deflector

1шт.

37

197091A4

LARGE PLATE

SUPPORT - lower, rear

1шт.

38

195079A3

SHEET

SUPPORT - screen chute, rear

1шт.

39

195086A3

SUPPORT

- screen, upper

1шт.

40

195082A3

SHEET

PANEL - radiator inlet

1шт.

41

195085A3

GUIDE

CHUTE - bottom rear outlet

1шт.

42

195090A2

SHEET

SUPPORT - radiator clean out

1шт.

43

NSS

NOT SOLD SEPARAT

SEAL - radiator upper and lower, 34 inch (865 mm) long, cut from F43996 bulk seal below

2шт.

44

195091A1

COVER

- radiator, upper

1шт.

45

195092A1

COVER

- radiator, rear

1шт.

46

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

6шт.

47

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

F43996

RUBBER SEAL,25.4mm W x 932.179mm L x 19.05mm Thk

SEAL - bulk, adhesive-backed, (3/4) 19 x (1) 25 x 36-3/4 inch (932 mm) long

1шт.
