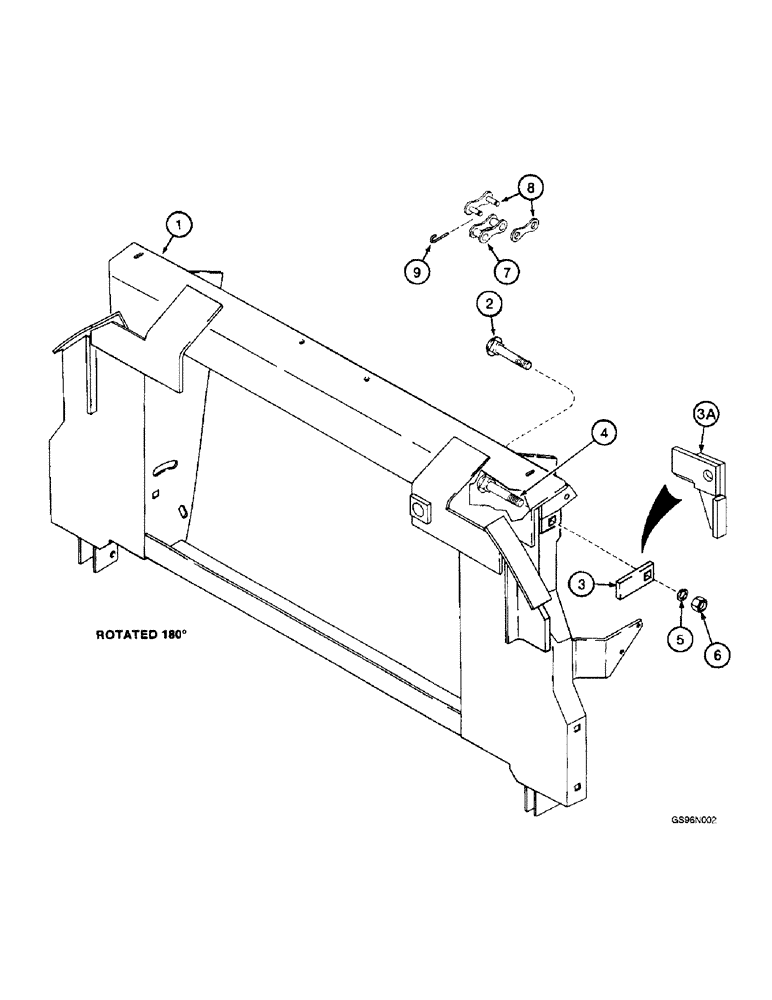

Запчасти Case IH 2166 (9A-52) - FIELD TRACKER, FEEDER PIVOT SUPPORT (13) - FEEDER

1

188073A2

FRAME

SUPPORT - pivot, header tilt rear

1шт.

Ref 188073a2 Pivot bracket that mounts to the bottom of this is 240587a1. bolt that acts as the pivot is 413-1680 1"-8 X 5" nut is 232-5148.

1шт.

2

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT - carriage, 5/8 NC x 2 inch

4шт.

3

100288A1

BAR

- vertical stop, if used

2шт.

3a

238369A1

STOP

- vertical, RH, if used

1шт.

3a

238370A1

STOP

- vertical, LH, if used

1шт.

4

433-1024

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

BOLT - carriage, 5/8 NC x 1-1/2 inch

2шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

100487A1

LINK

- connecting

2шт.

8

1324294C1

LINK,40.893mm Pitch

LINK - connecting, Includes: pin

2шт.

9

1329837C2

PIN,2.63mm OD

- S type, roller

4шт.
