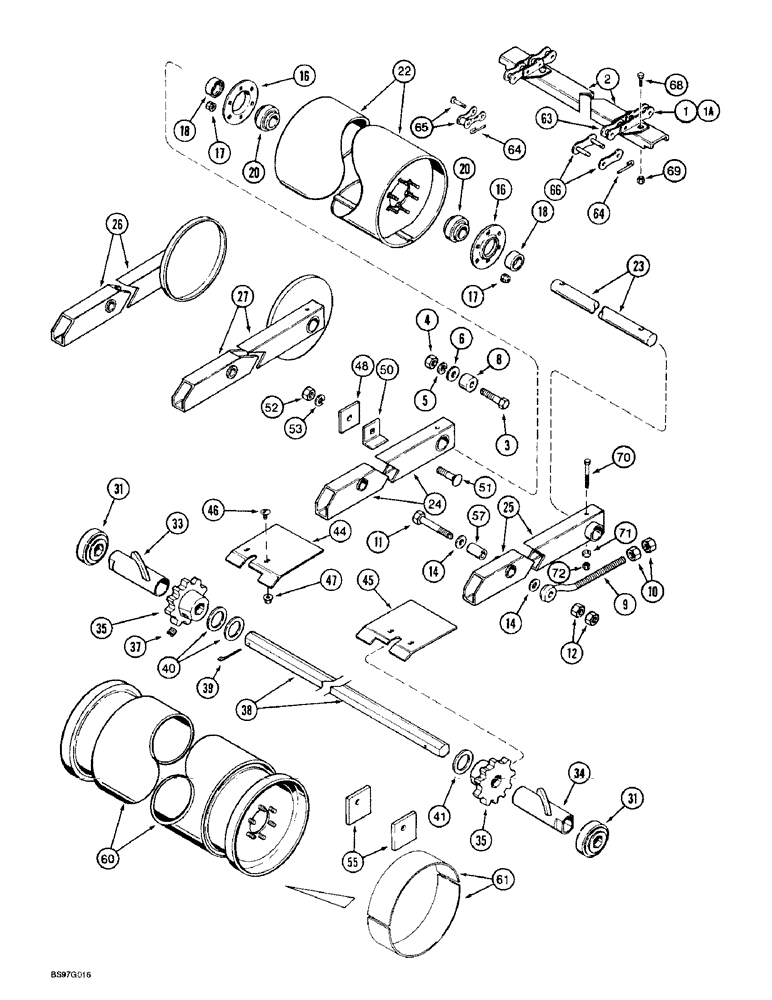

Запчасти Case IH 2166 (9A-40) - FEEDER, CONVEYOR (13) - FEEDER

1

117871A1

CHAIN,Feeder

CHAIN ASSEMBLY - conveyor, with 12 smooth slats, 54-1/2 inch feeder, A557 chain (Corn and Grain)

1шт.

1

136439A1

CHAIN,Feeder

CHAIN ASSEMBLY - conveyor, with 12 smooth slats, 60 inch feeder, A557 chain (Corn and Grain)

1шт.

1

117865A1

CHAIN (AG)

CHAIN ASSEMBLY - conveyor, with 9 serrated slats, 54-1/2 inch feeder, A557 chain (Corn, Grain and Rice)

1шт.

1

136438A1

CHAIN,Feeder

CHAIN ASSEMBLY - conveyor, with 10 serrated slats, 60 inch feeder, A557 chain (Corn, Grain and Rice)

1шт.

1a

107871A1

CHAIN (AG),A557, 69 Links x 41.4mm = 2856.6mm

CHAIN - conveyor, 54-1/2 inch feeder, A557 chain only, for use on models with bolted slats

2шт.

1a

118661A1

CHAIN,A557, 75 Links x 41.4mm = 3105mm

- conveyor, 60 inch feeder, A557 chain only, for use on models with bolted slats

2шт.

2

118268A1

SLAT

ASSEMBLY - smooth, Includes: channnel and hardware, 47 or 54-1/2 inch feeder

1шт.

2

118270A1

SLAT

ASSEMBLY - serrated, Includes: channel with angle and hardware, 54-1/2 or 60 inch feeder

1шт.

3

189709C1

BOLT,Hex, 1/2" - 13 x 3"

- hex, special

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

2шт.

8

197211C1

SPACER

- stop

2шт.

9

176508C1

BOLT,5/8" - 11 x 228.60mm

- tightening, special

2шт.

10

425-1010

NUT,5/8"-11, G5

4шт.

11

187218C2

BOLT

BOLT - hex, special, 5/8 NC x 4-1/2 inch

2шт.

12

425-1010

NUT,5/8"-11, G5

4шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

4шт.

16

1330461C1

FLANGED BEARING

- bearing

4шт.

17

1306680C1

FLANGE NUT

NUT - hex flange, self-locking, special, 3/8 inch NC

12шт.

18

557995R11

COLLAR

- bearing, with set screw

2шт.

20

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

- ball

2шт.

22

1957437C1

DRUM

- conveyor, models without stone retarder

1шт.

23

187207C2

SHAFT,31.75mm OD x 909.3mm L

SHAFT - drum

1шт.

24

1338287C3

ARM

- drum, LH, used on models with smooth slats and with or without stone retarder

1шт.

25

1338288C3

ARM

- drum, RH, used on models with smooth slats and with or without stone retarder

1шт.

26

1319875C5

ARM

- drum, left-hand, used on models with serrated slats and without stone retarder

1шт.

27

1319876C5

ARM

- drum, right-hand, used on models with serrated slats and without stone retarder

1шт.

31

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING - ball

2шт.

33

178780C2

SPACER

- sprocket, left-hand

1шт.

34

178781C2

SPACER

- sprocket, right-hand

1шт.

35

1970248C1

SPROCKET ASSY.

SPROCKET - chain

2шт.

37

197643C1

SET SCREW

- set

4шт.

38

1320160C3

SHAFT

- conveyor

1шт.

39

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

40

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-25/32 x 2-1/2 x 1/8 inch

1шт.

41

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

- flat, 1-25/32 x 2-1/2 x 3/64 inch

1шт.

1300464C91

PACKAGE

KIT - stripper, feeder pivot, no longer available, order components, Includes: Ref. 44 - 47

1шт.

Stripper plate in kit has a welded wear bar.

1шт.

44

185818C1

STRIPPER ASSY.

STRIPPER - pivot, left-hand

1шт.

45

185819C1

STRIPPER ASSY.

STRIPPER - pivot, right-hand

1шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

47

231-5146

FLANGE NUT,3/8"-16

4шт.

48

187347C1

PLATE

BAR - upper stop adjusting, models without stone retarder

2шт.

50

1345418C1

ANGLE

- stop bar

2шт.

51

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - carriage, 5/8 NC x 2-1/4 inch

2шт.

52

425-1010

NUT,5/8"-11, G5

2шт.

53

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

55

187225C1

BAR

- upper stop adjusting, models with stone retarder

2шт.

57

187217C1

SPACER,7/8" Tube x 1 13/16"

- 7/8 x 1-13/16 inch

2шт.

60

1957439C3

ROLLER

- conveyor, models with stone retarder

1шт.

61

112047A2

KIT

- filler strip, consists of (4) strips, use to service 1957439C3 conveyer drum, models with stone retarder

1шт.

63

1989692C1

LINK,A557, 3 Links

- attaching, 3 link section, Includes: brackets, does not include chain mounting hardware

1шт.

64

1329837C2

PIN,2.63mm OD

- S type, roller, A557 chain

1шт.

65

1324835C1

OFFSET LINK

LINK - offset, Includes: pin, A557 chain

1шт.

66

1324294C1

LINK,40.893mm Pitch

LINK - connecting, Includes: pin, A557 chain

1шт.

68

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

69

1306680C1

FLANGE NUT

NUT - hex flange, self-locking, special, 3/8 inch NC

1шт.

70

326-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

2шт.

71

314148R1

SPACER,10.7mm ID x 17.14mm OD x 11.9mm L

2шт.

72

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Hex, self-locking 3/8"-16, GB

2шт.
