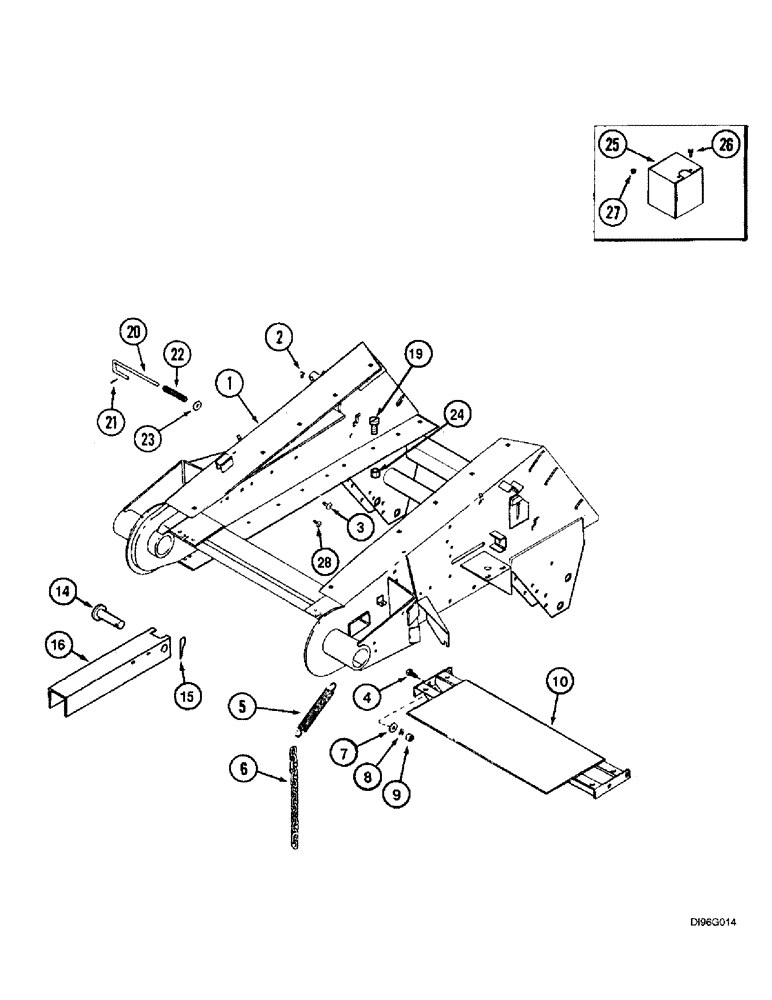

Запчасти Case IH 2166 (9A-36) - FEEDER, LIFT BRACKET AND SUPPORTS (13) - FEEDER

1

REF

INSTRUCTION

HOUSING - feeder, See Figure 9A-32

1шт.

2

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

8шт.

3

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

1шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

5

635503R1

SPRING,148.8mm Free Length

- latch

2шт.

6

167570C1

CHAIN,203.2mm L

- latch

2шт.

7

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

10

252124A1

SUPPORT

- feeder housing (Replaces support 1345329C2)

1шт.

14

439-52092

HEADED PIN,1 1/4" x 5 3/4"

PIN - headed, 1-1/4 x 5-3/4 inch

2шт.

14a

242303A1

PIN

- mounting, 1-1/4 x 6-1/2 inch, not shown

2шт.

15

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2-4шт.

16

124060A3

STAND

CHANNEL - lock, lift cylinder, prior to combine P.I.N. JJC0182025

1шт.

16a

243060A2

TUBE

CHANNEL - lock, lift cylinder, combine P.I.N. JJC0182025 and after, not shown

1шт.

19

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

8шт.

20

127411A1

PIN,7.92mm OD

- cylinder lift lock, 189 mm long, prior to combine P.I.N. JJC0182025

1шт.

20a

243058A3

PIN,9.53mm OD

ROD - cylinder lift lock, 183 mm long, combine P.I.N. JJC0182025 and after, not shown

1шт.

21

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

22

M296

SPRING

- cylinder lift lock

1шт.

23

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Prior to combine P.I.N. JJC0182025

1шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Combine P.I.N. JJC0182025 and after 3/8", SAE

1шт.

24

231-5146

FLANGE NUT,3/8"-16

8шт.

25

1327992C2

GUARD

SHIELD - sensor, feeder, See Figure 4-02 for sensor

1шт.

26

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

27

488837C1

SPRING NUT

- speed, 5/16 inch

2шт.

28

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 8

8шт.
