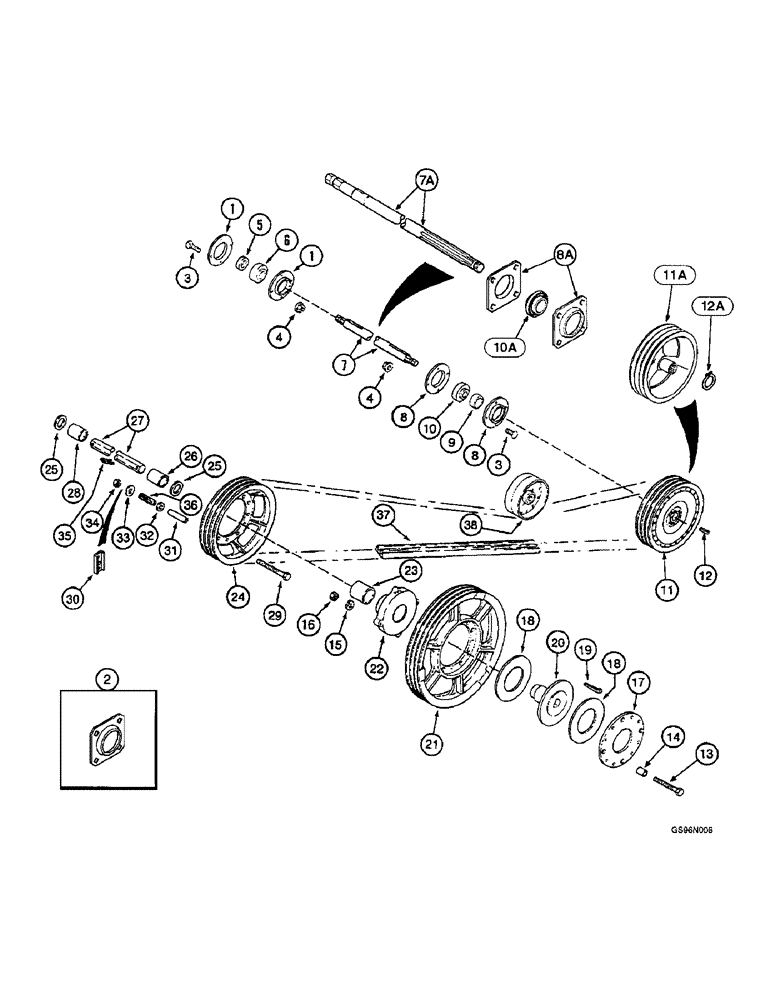

Запчасти Case IH 2166 (9A-26) - FEEDER, JACKSHAFT DRIVE, PRIOR TO COMBINE P.I.N. JJC0182025 (13) - FEEDER

1

663562R1

FLANGE

- bearing, round design, left-hand

2шт.

2

1307583C1

FLANGED BEARING

- bearing, used with shaft 1319482C2, Ref. 7

2шт.

2

241577A1

FLANGE

- bearing, used with shaft 241931A3, Ref. 7A

2шт.

3

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

8шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

5

455112R11

COLLAR

- locking, bearing

1шт.

6

455111R91

BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm

BEARING - ball, left-hand

1шт.

7

1319482C2

SHAFT

- cross, if used

1шт.

Ref # 7, is 1319482C2, which is OVERLENGTH IS 70" (1778 MM).

1шт.

The 1319482C2 has a keyway on each end of the shaft, and 241931A3 does not have keyway. bj 9-19-97

1шт.

7a

241931A3

SHAFT

- feeder, if used

1шт.

The 1319482C2 has a keyway on each end of the shaft, and 241931A3 does not have keyway. bj 9-19-97

1шт.

8

619333R1

FLANGED BEARING

- bearing, right-hand, used with shaft 1319482C2, Ref. 7

2шт.

8a

NSS

NOT SOLD SEPARAT

FLANGE - bearing, used with shaft 231931A3, Ref. 7A, order bearing assembly 241929A2

2шт.

9

664598R11

COLLAR

- lock, bearing

1шт.

10

664597R91

BALL BEARING,1.5005" ID x 90 mm OD x 1.625"

- ball, right-hand, used with shaft 1319482C2, Ref. 7

1шт.

10a

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

BEARING - ball, used with shaft 231931A3, Ref. 7A

1шт.

11

1321645C1

PULLEY

- driven, 13-1/2 inch OD, used with shaft 1319482C2, Ref. 7

1шт.

11a

238967A2

PULLEY,335.5mm OD

- driven, used with shaft 231931A3, Ref. 7A

1шт.

12

Q1376

KEY

- square tapered, 3/8 x 2-1/4 inch, used with shaft 1319482C2, Ref. 7

1шт.

12a

100-11200

SNAP RING,#200, Ext

Ring, Snap, , used with shaft 231931A3, ref. 7A #200, Ext

1шт.

13

326-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

1шт.

14

1305375C1

SPACER

- drive lug

4шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

329-106

NUT,3/8"-16, G8

4шт.

17

185955C1

PLATE

- friction

1шт.

18

181579C1

DISC

DISC - friction

2шт.

19

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

Tapered Gib, 3/8" Sq x 4 1/2"

2шт.

20

1305154C2

HUB

- slip clutch

1шт.

21

1305297C1

PULLEY

- driven, 22-9/16 inch OD, See Figure 9A-22

1шт.

22

1305220C91

HUB ASSY.

HUB ASSEMBLY - clutch, outer, Includes: Ref. 23

1шт.

23

610435C1

BUSHING,69.93mm ID x 82.65mm OD x 76.2mm L

- hub

1шт.

24

1305288C1

PULLEY

- drive, 16-11/16 inch OD

1шт.

25

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-25/32 x 2-1/2 x 7/64 inch

1шт.

26

584608R1

SPACER

- 3-3/8 inch long

1шт.

27

1320160C3

SHAFT

- conveyor, See Figure 9A-35

1шт.

28

1305393C1

SPACER

- 2-35/64 inch long, left-hand

1шт.

29

1315319C1

BOLT,Hex, 3/8" - 16 x 6", Gr 8

- hex, special, 3/8 x 6 inch, grade 8

8шт.

30

1315316C1

SUPPORT

- spring, models with rock trap

2шт.

31

1305370C3

SPACER

- spring clutch

8шт.

32

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

8шт.

33

495-81143

WASHER,13/32" x 1 1/2" x .120"

16шт.

34

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

8шт.

35

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

36

1305692C2

SPRING

- slip clutch, 10 used on models with rock trap

8-10шт.

37

1313097C3

V-BELT,22.33 mm W x 3706.69 mm L

Drive, Models with 54-1/2 Inch Feeder 22.33 mm W x 3706.69 mm L

1шт.

37

1308489C2

V-BELT,22.33 mm W x 3990.69 mm L

Drive, for 60 inch Feeder 22.33 mm W x 3990.69 mm L

1шт.

38

176579C1

IDLER

- drive tightener, 8 inch OD, See Figure 9A-28

1шт.
