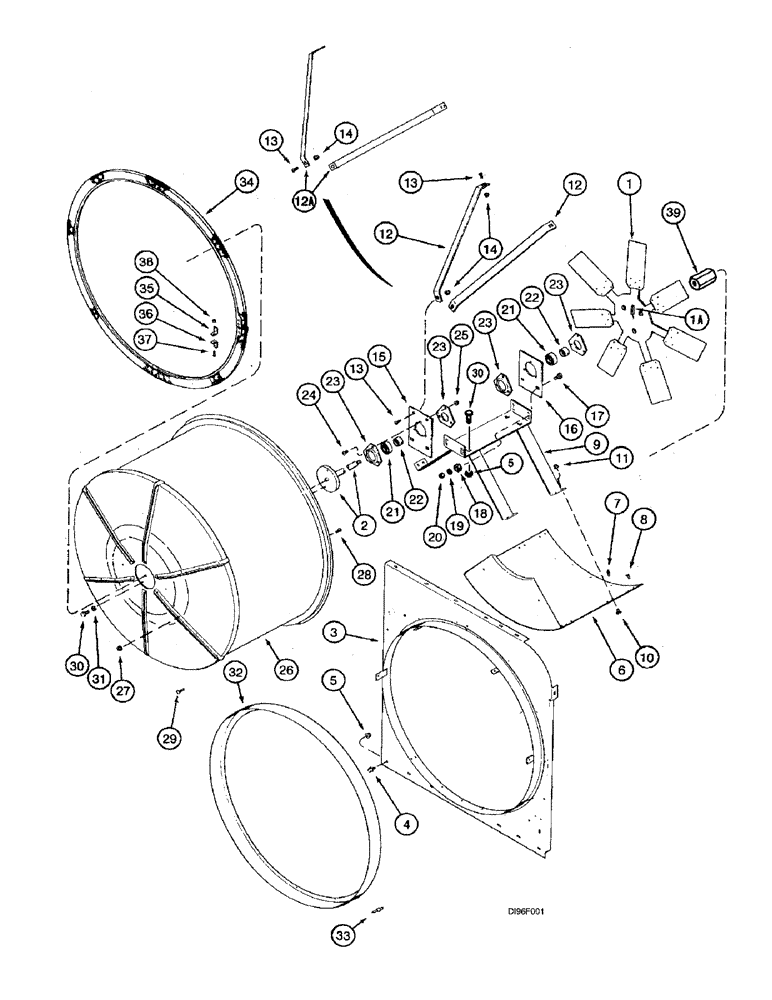

Запчасти Case IH 2166 (2-11C) - ROTARY AIR SCREEN, COMBINE P.I.N. JJC0180000 AND AFTER (01) - ENGINE

1347257C1

FAN,7 Blades, 685.8mm OD

ASSEMBLY - rotary air screen, Includes: Ref. 1 & 1A

1шт.

1

1957272C2

FAN

- rotary air screen

1шт.

1a

Q5024

KEY,3/16" Sq x 1", Par

Welded on 3/16" Sq x 1", Par

1шт.

2

234067A1

SHAFT

- fan, rotary air screen

1шт.

3

1317755C6

ADAPTER

SUPPORT - rotary air screen

1шт.

4

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

17шт.

4

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

23шт.

6

194224C1

BAFFLE ASSY.

BAFFLE - rotary air screen

1шт.

7

151-558

RIVET,Pop, 3/16" x .450"

- break mandrel, 3/16 x 1/2 inch

3шт.

8

104235

RIVET,FH, 3/16" x 1/2"

4шт.

9

234279A1

SUPPORT

- bearing, lower

1шт.

10

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

8шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

12

194221C2

STAY

SUPPORT - bearing, upper

2шт.

12a

175258A1

SUPPORT

- rear bearing

2шт.

13

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

8шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

15

164605C1

LARGE PLATE

SUPPORT - bearing flange, rear

1шт.

16

164605C1

LARGE PLATE

SUPPORT - bearing flange, front

1шт.

17

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

18

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

4шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

21

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

- ball, rotary air screen

2шт.

22

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

- lock, bearing

2шт.

23

H333534

FLANGED BEARING

FLANGE - bearing

4шт.

24

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

26

234633A1

SIEVE

ASSEMBLY - rotary screen, fine mesh, Includes: Ref. 27 - 29

1шт.

27

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

12шт.

28

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

12шт.

29

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

12шт.

30

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

32

1338011C1

SEALING RING

RETAINER - brush seal

1шт.

33

151-509

RIVET,Pop, 3/16" x .325"

- break mandrel, 3/16 x 5/16 inch

12шт.

34

164615C92

BRUSH, COMMUTATOR

BRUSH ASSEMBLY - rotary air screen, Includes: Ref. 35 - 38

1шт.

35

164616C1

ANGLE

CLIP - brush, short

1шт.

36

164617C1

ANGLE

CLIP - brush, long

1шт.

37

470-11016

SCREW,Pan HD, #10 - 24 x 1"

- machine, pan head slotted, No. 10 NC x 1 inch

1шт.

38

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.

39

106666A1

SPECIAL NUT

- hex, special, 3/8 inch NC, left-hand thread

1шт.
