Запчасти Case IH 2166 (9A-24) - FEEDER, FEEDER DRIVE SHIELDS (13) - FEEDER

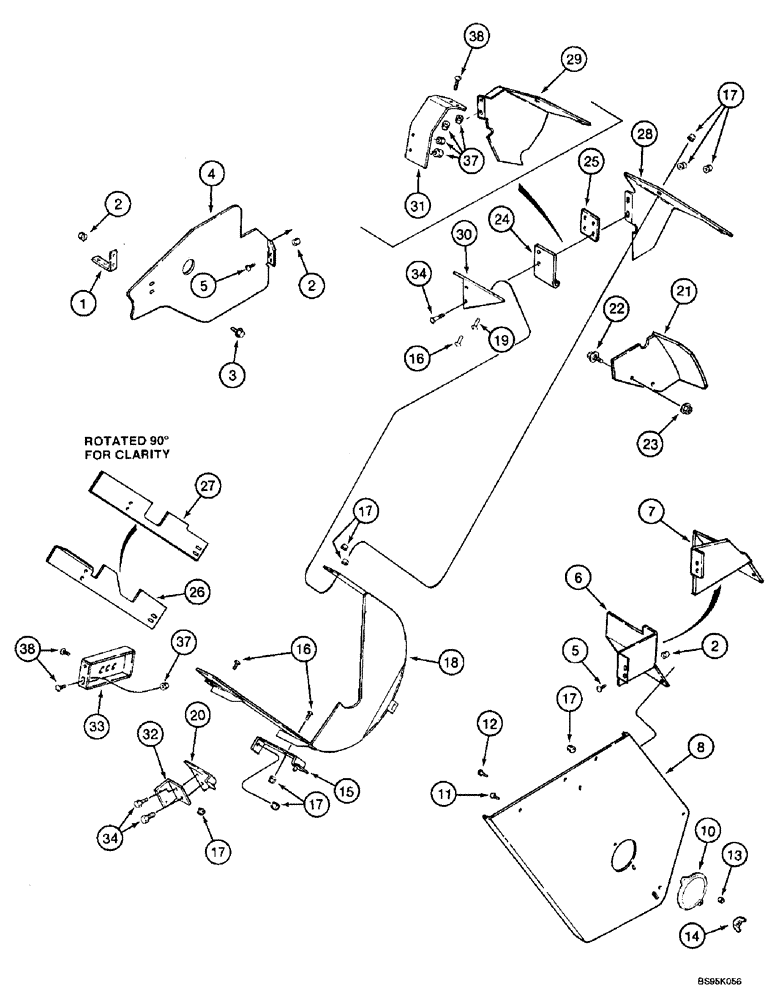

Схема запчастей Case IH 2166 - (9A-24) - FEEDER, FEEDER DRIVE SHIELDS (13) - FEEDER
25
37
33
5
3
22
12
26
16
14
17
7
34
13
21
29
2
34
17
30
15
17
19
8
37
2
16
32
17
18
38
20
17
6
38
31
10
1
11
24
2
4
5
27
28

Артикул

Название

Примечание

Количество

1

186081C1

ANGLE

- upper shield

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

3

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

4

135755A3

SUPPORT

- shield, upper

1шт.

5

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

6

175070A3

SHIELD

- upper, models without rock trap

1шт.

7

183584A1

GUARD

SHIELD - upper, models with rock trap

1шт.

8

192124C6

COVER

SHIELD - belt

1шт.

10

188315C1

DOOR

- access, belt drive cover

1шт.

11

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

1шт.

12

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

13

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

14

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

1шт.

15

135602A1

SUPPORT

- lower belt guard

1шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

12шт.

17

231-5146

FLANGE NUT,3/8"-16

16шт.

18

194380C4

HOUSING

GUARD - belt

1шт.

19

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

3шт.

20

188045C2

SUPPORT ASSY.

SUPPORT - belt guard, rear

1шт.

21

185334A2

SHIELD

- drive pulley

1шт.

22

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

24

194364C2

HINGE

- pivot

1шт.

25

182804A1

LARGE PLATE

PLATE - drive belt cover support

1шт.

26

132970A3

SHIELD

- lower, models without rock trap

1шт.

27

132968A3

SHIELD

- lower, models with rock trap

1шт.

28

132971A3

COVER

- drive belt, upper, models without trap

1шт.

29

132969A2

COVER

- drive belt, upper, models with rock trap

1шт.

30

192131C5

SUPPORT

- belt guide, upper, models without rock trap

1шт.

31

1989332C5

SUPPORT

- belt guide, upper, models with rock trap

1шт.

32

1315075C1

ANGLE

SUPPORT - shield rear extension, models with rock trap

1шт.

33

1315083C1

SUPPORT

- shield lower extension, models with rock trap

1шт.

37

231-5146

FLANGE NUT,3/8"-16

6шт.

38

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

34

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

4шт.

Выбрано товаров: 35
