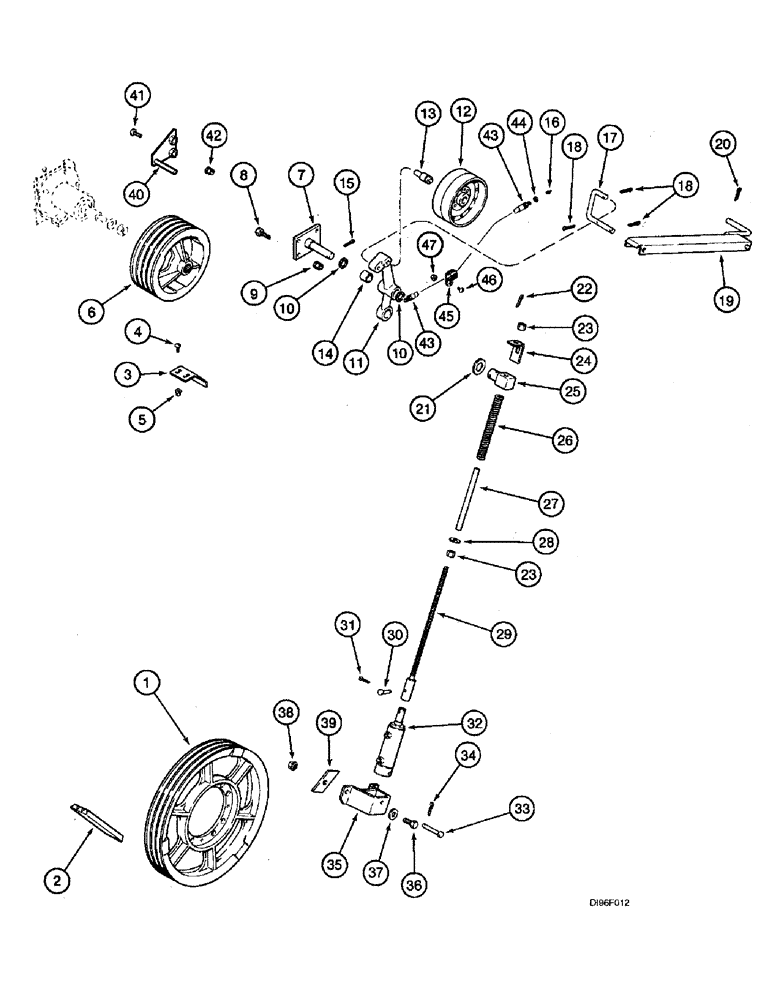

Запчасти Case IH 2166 (9A-22) - FEEDER, FEEDER DRIVE (13) - FEEDER

1

1305297C1

PULLEY

- driven, 22-9/16 inch OD

1шт.

2

192738C1

BELT,22.225 mm W x 3814.70 mm L, 3, Ribs

V-BELT , Drive, Models without rock trap 22.225 mm W x 3814.70 mm L, 3, Ribs

1шт.

2

1315168C1

V-BELT,22.23 mm W x 4228.70 mm L

Drive, Feeder, With Rock Trap 22.23 mm W x 4228.70 mm L

1шт.

3

194383C3

BRACKET

- support, upper, belt guide

1шт.

4

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

6

191603C2

PULLEY

- drive, 12 inch OD

1шт.

7

185414C2

SUPPORT

- pivot

1шт.

9

231-5146

FLANGE NUT,3/8"-16

4шт.

10

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.

192105C93

LEVER

ASSEMBLY - idler, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

LEVER - idler, order lever assembly 192105C93

1шт.

12

174757C1

PULLEY

- idler, 8 inch OD

1шт.

13

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

- lever

1шт.

14

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

- 1 ID x 1-1/4 OD x 1-1/8 inch wide

2шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

17

116032A1

HOOK

ROD - retainer

1шт.

18

432-1216

COTTER PIN,3/16" x 1"

3шт.

19

116028A2

HOLDER

GUIDE - belt retainer, models with rock trap (Replaces guide 116027A1)

1шт.

20

432-1216

COTTER PIN,3/16" x 1"

1шт.

21

495-81225

WASHER,1 17/32" x 2 1/2" x .060"

- flat, 1-17/32 x 2-1/2 x 3/64 inch

1шт.

22

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

24

182922A1

SUPPORT

CLIP - tightener, special

1шт.

25

186890C4

PIVOT

- spring rod

1шт.

26

PO23

SPRING

- tightener rod

1шт.

27

182921A1

SPACER

- spring rod

1шт.

28

495-81163

WASHER,17/32" x 1 1/2" x .120"

- flat, 17/32 x 1-1/2 x 7/64 inch

1шт.

29

194216C2

ROD

- tightener, feeder drive

1шт.

30

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

PIN, CLEVIS, , Hardened 3/8" x 1 9/16"

1шт.

31

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

32

REF

INSTRUCTION

CYLINDER ASSEMBLY - feeder, parts list Figure 8-58

1шт.

33

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - headed, 3/8 x 3-1/4 inch, grade 2

1шт.

34

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

35

194369C2

SUPPORT

- cylinder

1шт.

36

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

37

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

39

183373A1

LARGE PLATE

SPACER - cylinder support, models without rock trap

1шт.

40

195109C1

ROD ASSY.

BRACKET - belt trap rod

1шт.

42

231-5146

FLANGE NUT,3/8"-16

2шт.

43

937781R92

HOSE,3.02mm ID x 686mm L

Grease 3.56 mm ID x 686.00 mm

1шт.

44

F53473

LOCK NUT,1/8-27 NPSM

- special

1шт.

45

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

Retaining, Models without rock trap (Replaces clamp 363444R1) J, 9/16" Insul, 3/8" Bolt

1шт.

45

370383R1

CLIP

CLAMP - retaining, models with rock trap

1шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

47

231-5146

FLANGE NUT,3/8"-16

1шт.

8

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

4шт.

41

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.
