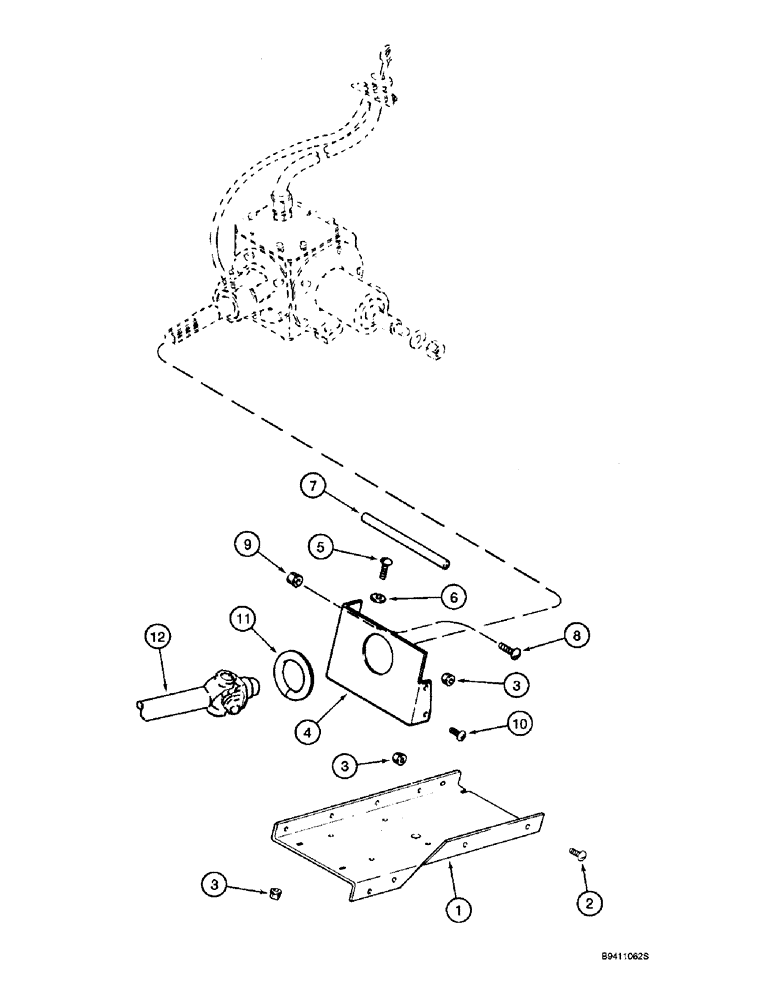

Запчасти Case IH 2166 (9A-20) - FEEDER, FEEDER DRIVE AND FAN GEAR MOUNTING (13) - FEEDER

1

194521C1

SUPPORT

- gear case

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

3

231-5146

FLANGE NUT,3/8"-16

6шт.

4

191399C1

SUPPORT

- gear housing rear

1шт.

6

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

4шт.

7

191497C1

SEALING STRIP

SEAL - 10-5/8 inch (270 mm) long

1шт.

8

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

BOLT - serrated Phillips truss head, 3/8 NC x 1 inch (Replaces screw 1319406C1)

2шт.

9

231-5146

FLANGE NUT,3/8"-16

7шт.

10

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

5шт.

11

191496C1

SEALING STRIP

SEAL - support, 11-7/8 inch (300 mm) long

1шт.

12

REF

INSTRUCTION

JOINT ASSEMBLY - drive, See Figure 9A-08

1шт.

5

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.
