Запчасти Case IH 2166 (9A-12) - SEPARATOR, DRIVE SHIELDS (13) - FEEDER

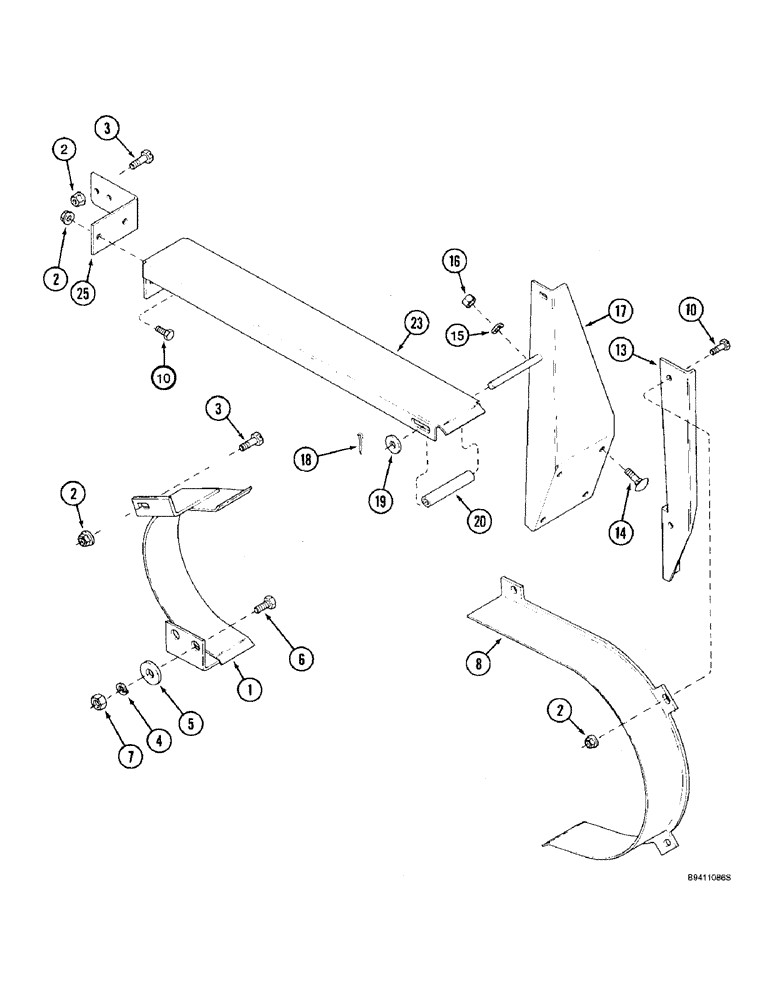

Схема запчастей Case IH 2166 - (9A-12) - SEPARATOR, DRIVE SHIELDS (13) - FEEDER
1
5
10
13
19
3
15
17
2
2
20
3
10
2
16
25
7
6
2
18
4
8
14
23

Артикул

Название

Примечание

Количество

1

1308774C1

GUARD ASSY.

SHIELD - drive pulley

1шт.

2

231-5146

FLANGE NUT,3/8"-16

9шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

191952C4

GUARD

SHIELD - driven pulley

1шт.

Ref. 8 - For retrofit of separator pulley drive shield to 2300 series configuration, see NHE SB 046-97 (1/15/98 T.R.)

1шт.

10

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

6шт.

13

181168C1

SUPPORT

BRACKET - shield, outer

1шт.

14

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

5шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

5шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

5шт.

17

181169C1

SUPPORT ASSY.

BRACKET - drive belt guide

1шт.

18

432-1216

COTTER PIN,3/16" x 1"

1шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE - 4-1/2 inch (115 mm) long, cut from 526602R1 bulk hose below

1шт.

23

191961C2

SUPPORT

- drive belt

1шт.

25

193686C1

ANGLE

- drive belt support

1шт.

526602R1

HOSE,12.7mm ID x 15240mm L

0.50" ID x 600.00"

1шт.

3

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

3шт.

Выбрано товаров: 21
