Запчасти Case IH 2166 (9A-04) - BELT DRIVE, RIGHT-HAND SIDE (13) - FEEDER

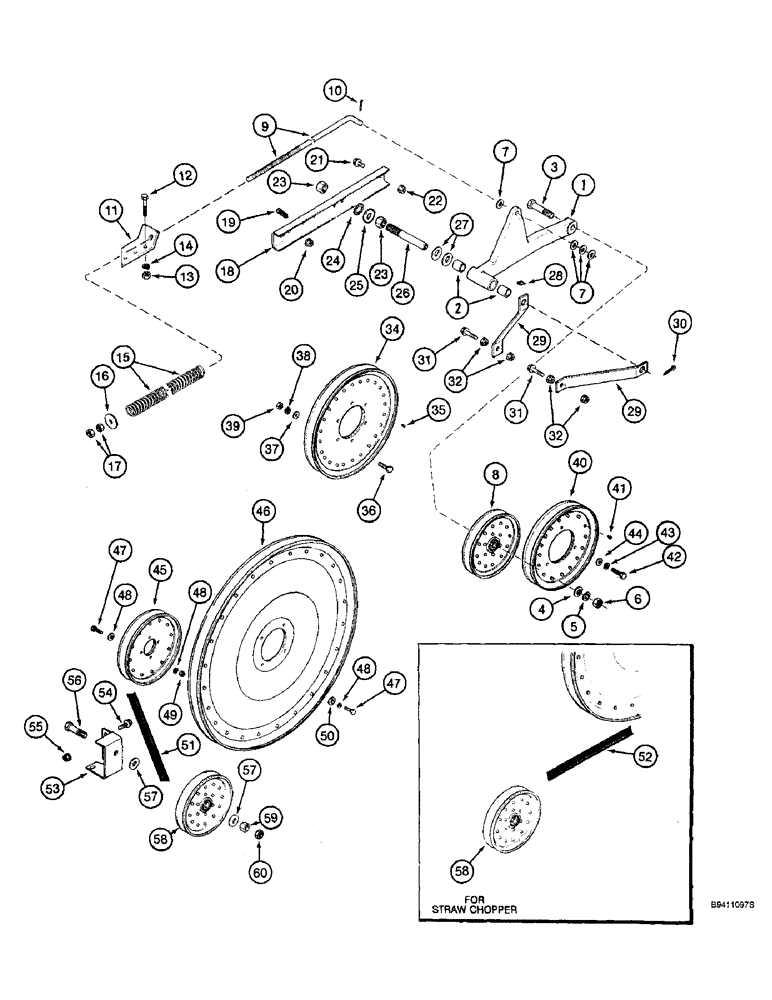

Схема запчастей Case IH 2166 - (9A-04) - BELT DRIVE, RIGHT-HAND SIDE (13) - FEEDER
38
52
41
4
44
56
12
7
5
20
30
28
15
48
42
23
8
32
24
29
2
26
31
35
19
3
60
39
22
34
48
18
53
13
57
27
47
10
9
48
17
57
29
32
1
6
51
58
31
21
7
37
59
23
25
47
50
45
16
58
11
55
36
40
49
54
46
43
14

Артикул

Название

Примечание

Количество

1

193447C91

ARM

LEVER ASSEMBLY - elevator jackshaft idler, Includes: Ref. 2

1шт.

2

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

- lever

2шт.

3

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

4

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

425-1010

NUT,5/8"-11, G5

1шт.

7

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

8

673214R91

PULLEY

- 7-5/16 inch (186 mm) OD, elevator drive

1шт.

9

191531C2

ROD

- idler lever

1шт.

10

432-1216

COTTER PIN,3/16" x 1"

1шт.

11

1315483C1

BRACKET

SUPPORT - elevator drive rod

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

15

155311C1

SPRING

- arm rod

1шт.

16

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

18

186588C2

CHANNEL

- pivot arm support

1шт.

19

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - set, square head, 3/8 NC x 1 inch, cup point

4шт.

20

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

4шт.

21

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

1шт.

22

231-5146

FLANGE NUT,3/8"-16

1шт.

23

425-1012

NUT,3/4"-10, G5

2шт.

24

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external tooth lock, 3/4 inch

1шт.

25

495-11081

WASHER,3/4", SAE

1шт.

26

188298C2

STUD

PIN - pivot

1шт.

27

495-11081

WASHER,3/4", SAE

1шт.

28

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

29

182676C2

SUPPORT

- elevator pivot

2шт.

30

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

31

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

34

183325C1

PULLEY

ASSEMBLY - driven, 13 inch OD, cleaning unit, Includes: Ref. 35

1шт.

35

104235

RIVET,FH, 3/16" x 1/2"

24шт.

36

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

37

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

3шт.

38

492-11038

LOCK WASHER,3/8"

3шт.

39

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

3шт.

40

193948C1

PULLEY,39.61mm W x 254mm OD

ASSEMBLY - drive, 9-3/4 inch OD, cleaning unit, Includes: Ref. 41

1шт.

41

47-49

RIVET,FH, 1/4" x 9/16"

- flat head solid, 1/4 x 9/16 inch

16шт.

42

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

43

492-11038

LOCK WASHER,3/8"

3шт.

44

495-81137

WASHER,13/32" x 1" x .224"

- flat, 13/32 x 1 x 15/64 inch

3шт.

45

195161C1

PULLEY

- drive, 8-3/8 inch OD, beater, models without straw chopper

1шт.

46

193682C1

PULLEY

- driven, 25 inch OD, shaker shaft

1шт.

47

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

8шт.

48

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

49

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

50

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

51

186509C2

BELT,0.879" W x 255.99" L

V-BELT , Drive, Over center, Models without straw chopper 0.879" W x 255.99" L

1шт.

52

181055C1

BELT,0.879" W x 200.99" L

V-BELT , Drive, Over center, Models with straw chopper 0.879" W x 200.99" L

1шт.

53

188253C2

SUPPORT

- elevator drive fixed idler

1шт.

54

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

4шт.

55

231-5146

FLANGE NUT,3/8"-16

4шт.

56

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

1шт.

57

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

5шт.

58

673214R91

PULLEY

- 7-5/16 inch (186 mm) OD, fixed idler

1шт.

59

425-1010

NUT,5/8"-11, G5

1шт.

60

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

1шт.

Выбрано товаров: 59
