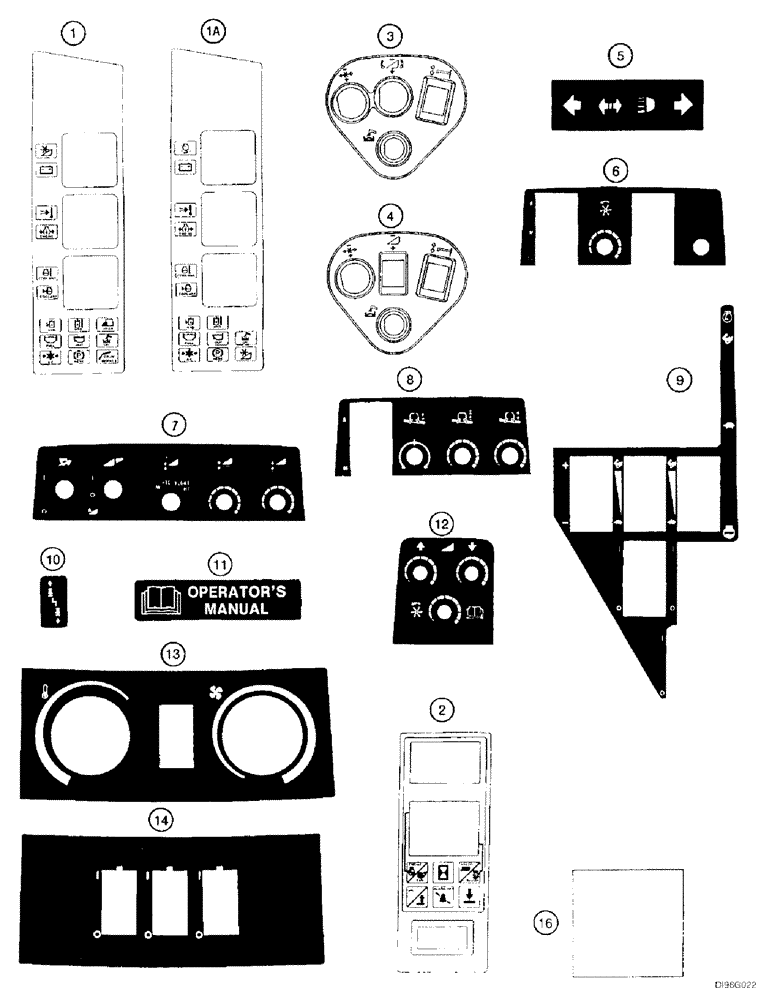

Запчасти Case IH 2166 (9H-42) - DECALS, CAB (12) - CHASSIS

1

139084A2

DECAL

- gauge and warning, instrument panel, prior to combine P.I.N. JJC0182025

1шт.

1a

238210A1

DECAL

- gauge and warning, instrument panel, combine P.I.N. JJC0182025 and after

1шт.

2

123716A1

DECAL

- keypad, instrument panel

1шт.

3

144107A2

DECAL

- propulsion control lever cover plate, models without field tracker

1шт.

4

144109A2

DECAL

- propulsion control lever cover plate

1шт.

5

120332A1

DECAL

- directional arrows, steering console cover

1шт.

6

NSS

NOT SOLD SEPARAT

DECAL - reel speed, right-hand console

1шт.

Part of right-hand console decal kit P/N 193469A1.

1шт.

7

NSS

NOT SOLD SEPARAT

DECAL - separator, right-hand console

1шт.

Part of right-hand console decal kit P/N 193469A1.

1шт.

8

NSS

NOT SOLD SEPARAT

DECAL - field tracker, right-hand console

1шт.

Part of right-hand console decal kit P/N 193469A1.

1шт.

9

NSS

NOT SOLD SEPARAT

DECAL - concave, right-hand console

1шт.

Part of right-hand console decal kit P/N 193469A1.

1шт.

10

NSS

NOT SOLD SEPARAT

DECAL - propulsion, right-hand console

1шт.

Part of right-hand console decal kit P/N 193469A1.

1шт.

11

NSS

NOT SOLD SEPARAT

DECAL - operators manual, right-hand console

1шт.

Part of right-hand console decal kit P/N 193469A1.

1шт.

12

NSS

NOT SOLD SEPARAT

DECAL - remote potentiometer, right-hand console

1шт.

Part of right-hand console decal kit P/N 193469A1.

1шт.

13

139641A2

DECAL

- heating and air conditioning, overhead

1шт.

14

139642A2

DECAL

- rocker switch, overhead

1шт.

16

224636A1

DECAL

- connector cover, cab exterior

1шт.

193469A1

PACKAGE

KIT - decal, right-hand console, Includes: Ref. 6 - 12

1шт.

279142A1

DECAL

THE 20TH ANNIVERSARY DECAL WHICH SAYS"20 ROTARY TECHNOLOGY" (SEE PRINT). CASE# 474159 JBEDFORD 10/10/97.

1шт.
