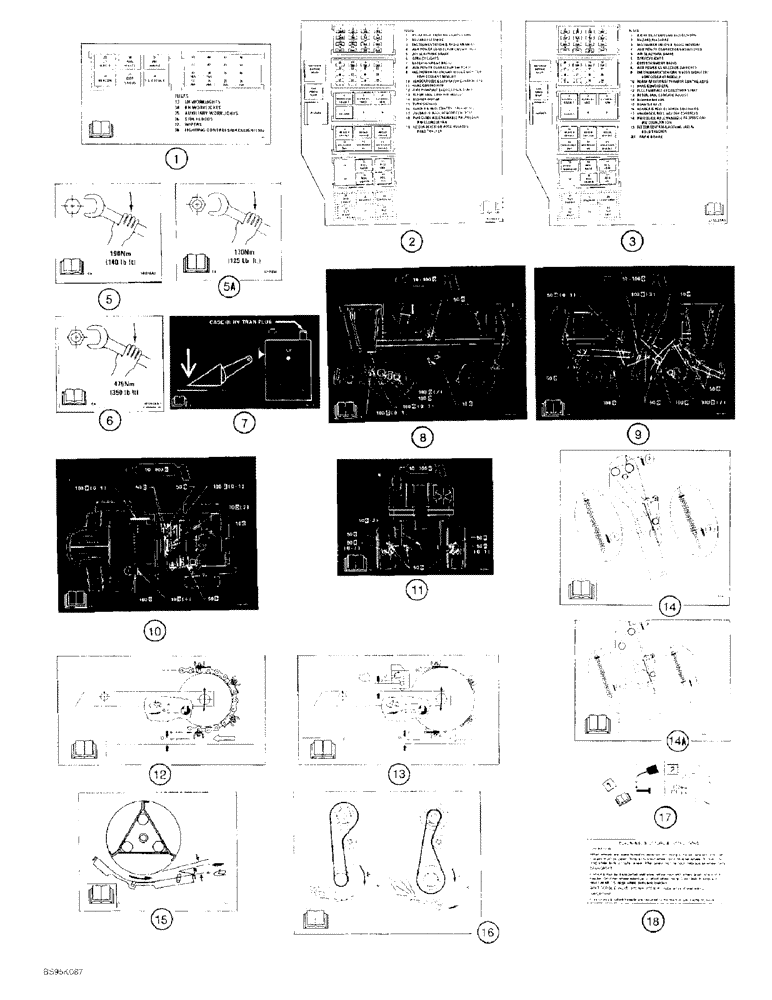

Запчасти Case IH 2166 (9H-38) - DECALS, INFORMATION DECALS WITH "READ OPERATORS MANUAL" SYMBOL (12) - CHASSIS

1

177343A1

DECAL

- upper fuse and relay, English

1шт.

1

177344A1

DECAL

- upper fuse and relay, French

1шт.

1

177345A1

DECAL

- upper fuse and relay, Spanish

1шт.

2

177346A4

DECAL

- lower fuse and relay, English, used with 184513A3 harness

1шт.

2

177347A3

DECAL

- lower fuse and relay, French, used with 184513A3 harness

1шт.

2

177348A3

DECAL

- lower fuse and relay, Spanish, used with 184513A3 harness

1шт.

3

225531A1

DECAL

- lower fuse and relay, English, used with 184513A4 harness

1шт.

3

225532A1

DECAL

- lower fuse and relay, French, used with 184513A4 harness

1шт.

3

225533A1

DECAL

- lower fuse and relay, Spanish, used with 184513A4 harness

1шт.

5

181916A2

DECAL

- wheel bolt torque, 140 lbs/ft, rear wheels, models with non-power axle, corn and grain

2шт.

5a

181992A1

DECAL

- wheel bolt torque, 125 lbs/ft, rear wheels, models with non-power axle, rice

2шт.

6

181917A1

DECAL

- wheel bolt torque, 350 lbs/ft, rear wheels, models with Power Guide Axle

2шт.

7

182570A2

DECAL

- hydraulic oil level

1шт.

8

179620A2

DECAL

- lubrication guide recommended hours, left-hand

1шт.

9

179621A2

DECAL

- lubrication guide recommended hours, right-hand

1шт.

10

179622A2

DECAL

- lubrication guide recommended hours, upper

1шт.

11

179623A2

DECAL

- lubrication guide recommended hours, rear

1шт.

12

175782A1

DECAL

- feeder drum adjuster without retarder

1шт.

13

175783A1

DECAL

- feeder drum adjuster with retarder

1шт.

14

175167A1

DECAL

- elevator, horizontal delivery

1шт.

14a

175168A1

DECAL

- elevator, inclined delivery

1шт.

15

175786A1

DECAL

- beater bottom adjuster

1шт.

16

175788A1

DECAL

- straw chopper drive

1шт.

17

135780A2

DECAL

- single drive wheel bolt torque, front wheels

2шт.

18

135786A2

DECAL

- dual wheel bolt torque instructions, front wheels

2шт.

Decal does not have the "Read operators manual" symbol and is shown on this Figure in order to keep similar decals on the same Figure.

1шт.
