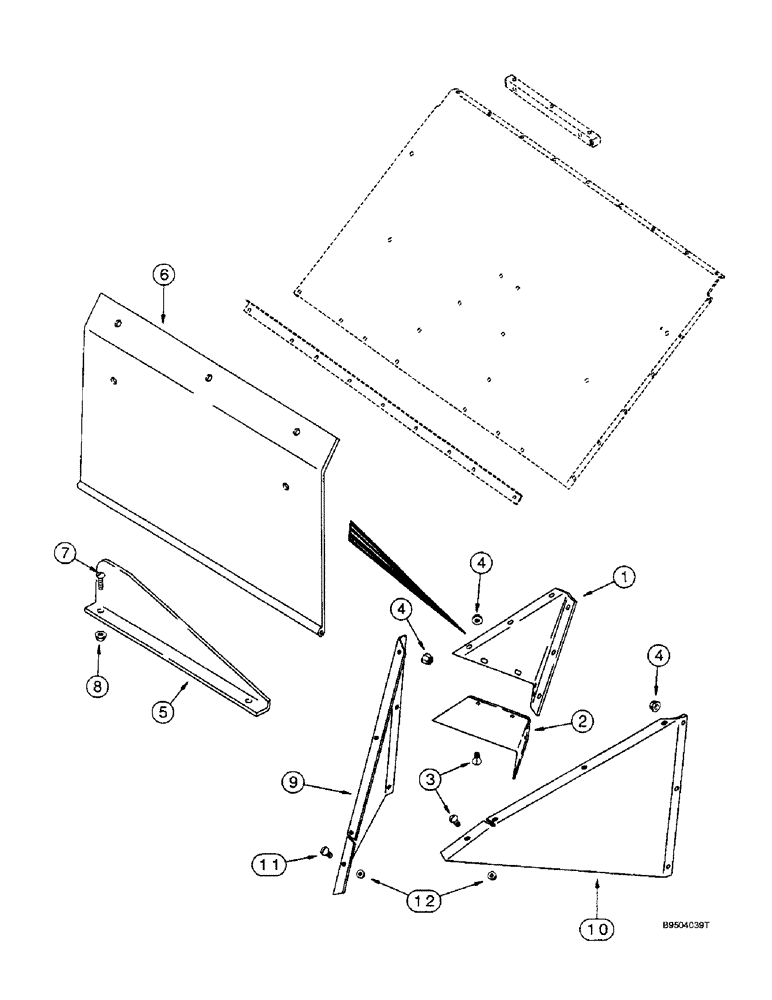

Запчасти Case IH 2166 (9H-16) - DEFLECTORS AND SUPPORTS (12) - CHASSIS

1

1319485C1

DEFLECTOR

- rear hood, models with straw spreader

1шт.

2

1321019C1

DEFLECTOR

- guard, models with straw spreader

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

5

115497A1

DEFLECTOR

- rotor discharge, models with straw and chaff spreader

1шт.

Ref. 5 - Rubber shield which is attached to this deflector is 140274A1.

1шт.

6

115498A2

DEFLECTOR

- rear hood, models with straw and chaff spreader

1шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

7шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.

9

1302105C2

DEFLECTOR

SUPPORT - corner, left-hand

1шт.

10

1302106C2

DEFLECTOR

SUPPORT - corner, right-hand

1шт.

11

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

10шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.
