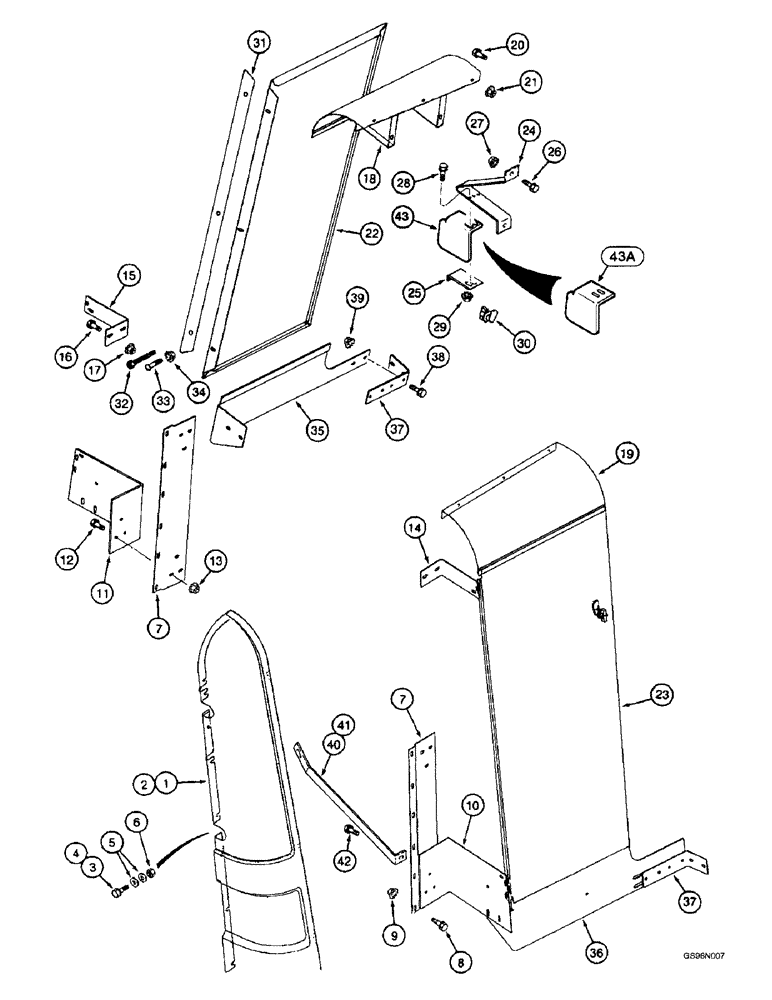

Запчасти Case IH 2166 (9H-14) - GRAIN TANK CORNER COVER PARTS (12) - CHASSIS

1

115773A2

SHEET

COVER - tank corner, left-hand

1шт.

2

115774A2

SHEET

COVER - tank corner, right-hand

1шт.

3

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

12шт.

4

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

6шт.

5

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

36шт.

6

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

18шт.

7

128913A2

SUPPORT

BRACKET - vertical support

2шт.

8

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4-6шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

10

141419A2

SUPPORT

BRACKET - corner trim, lower right-hand

1шт.

11

141420A2

SUPPORT

BRACKET - corner trim, lower left-hand

1шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

14

141416A2

SUPPORT

BRACKET - upper support angle, right-hand

1шт.

15

141417A2

SUPPORT

BRACKET - upper support angle, left-hand

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

18

189743A2

COVER

- curved, upper left-hand, Includes: decals, See Figures 9H-37 and 9H-41 for decals

1шт.

19

138880A2

SHEET

COVER - curved, upper right-hand

1шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

10шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

22

189306A2

DOOR

- grain tank cover, left-hand, Includes: decals, See Figures 9H-37 and 9H-41 for decals

1шт.

23

141428A2

DOOR

- grain tank cover, right-hand

1шт.

24

141785A1

SUPPORT

BRACKET - door latch

2шт.

25

141786A3

SUPPORT

- door latch bracket, used with bracket 190232A1, Ref. 43

2шт.

26

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

4шт.

27

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

28

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

30

182925A1

LOCK

LATCH - shield, cover door

2шт.

30

182926A1

LOCK

LATCH - shield, Australia only

2шт.

31

128919A3

HINGE

- grain tank cover door

2шт.

32

142217A1

SELF-TAP SCREW,Hex, M6.3 x 19mm

SCREW - special, self-tapping, for plastic tank corner

6шт.

33

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

10шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

35

128909A4

SHIELD

COVER - bottom, left-hand grain tank door

1шт.

36

128910A5

SHIELD

COVER - bottom, right-hand grain tank door

1шт.

37

128911A3

SUPPORT

BRACKET - support, bottom cover

2шт.

38

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

12шт.

39

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

40

193118A1

SUPPORT

BRACKET - corner trim stiffener, right-hand

1шт.

41

193120A1

SUPPORT

BRACKET - corner trim stiffener, left-hand

1шт.

42

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

43

190232A1

SUPPORT

BRACKET - latch guard, no longer available, order bracket 190232A2 below

1шт.

43a

190232A2

SUPPORT

BRACKET - latch guard

1шт.
