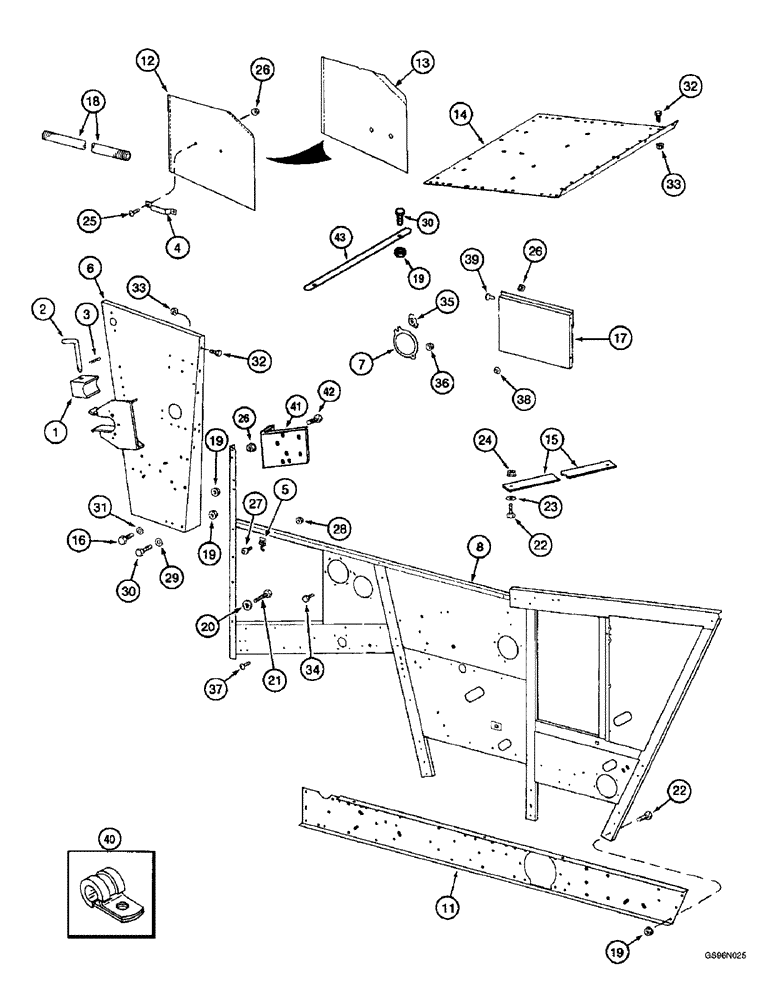

Запчасти Case IH 2166 (9H-06) - RIGHT-HAND SEPARATOR DOORS, SIDE AND SUPPORTS (12) - CHASSIS

1

1989327C2

RETAINER

BLOCK - feeder pivot

1шт.

2

192533C2

ROD

- feeder pivot block

1шт.

3

1978738C1

HAIR PIN COTTER

3/16"

1шт.

4

160638C1

HANDLE

- door

1шт.

5

167800C1

CLIP

- door retaining clip

4шт.

6

115443A4

SUPPORT

POST - separator, right-hand front

1шт.

7

188315C1

DOOR

- access, belt drive cover

1шт.

8

1970185C6

SIDE ASSY.

SIDE - separator, right-hand

1шт.

11

1317554C5

SUPPORT

- separator, right-hand main

1шт.

12

192623C2

DOOR

- separator, right-hand front, no longer available, order door 192623C3, Ref. 13

1шт.

13

192623C3

DOOR

- separator, right-hand front, used with support 192011C2 only, See Figure 9A-02

1шт.

14

1324970C2

PLATE

- engine deck

1шт.

15

196315C2

BAR

- separator frame diagonal support

1шт.

16

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

13шт.

17

181085C2

DOOR

- separator

1шт.

18

1319395C1

CONDUIT

- convoluted, 12-1/8 inch (308 mm) long, cut from bulk conduit 1262114C1 below

1шт.

19

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

17шт.

20

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3шт.

21

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

22

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

2шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

24

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

2шт.

25

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.

27

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

4шт.

28

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

29

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

2шт.

30

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

4шт.

31

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/2 x 1/8 inch

6шт.

32

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

9шт.

33

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

9шт.

34

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

35

126177

WING NUT

NUT - wing, 1/4 inch NC

1шт.

36

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

37

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

1шт.

38

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

39

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

5шт.

40

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

40

515-25254

CLAMP,1", Insul, 1/2" Bolt

P-type 1", Insul, 1/2" Bolt

1шт.

41

220624A1

SUPPORT

BRACKET - plate, reinforcement

1шт.

42

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

1шт.

43

235386A2

LARGE PLATE

STRAP - support, feeder pivot, 884 mm

1шт.

1262114C1

CONDUIT

- bulk, 31 inch (787 mm) long

1шт.
