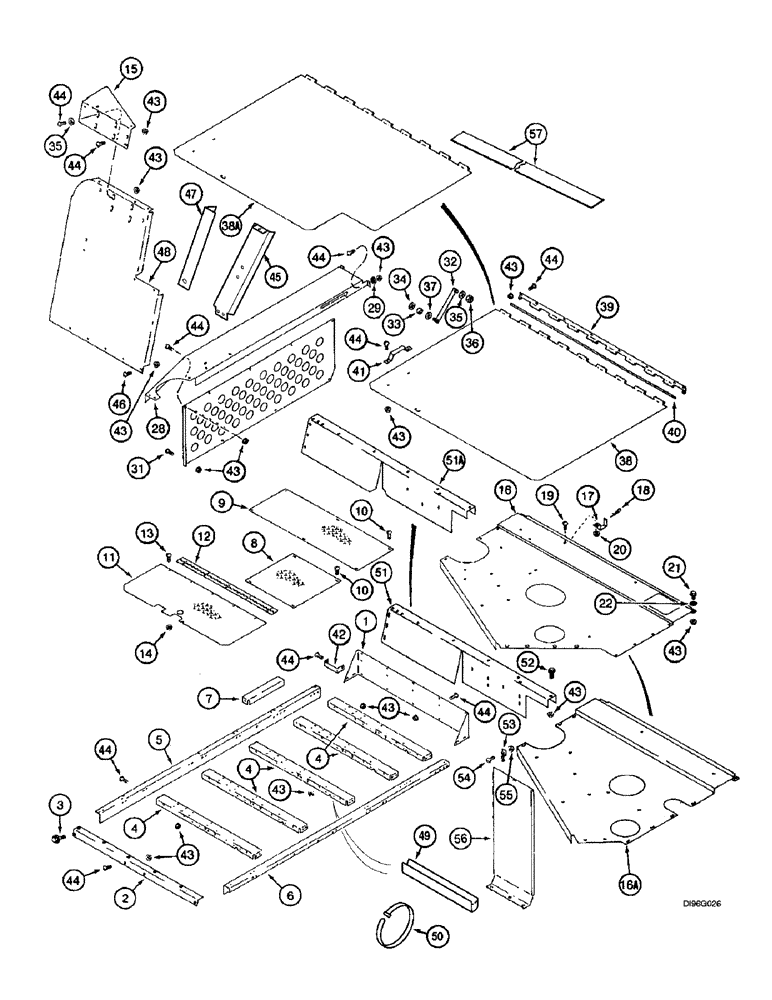

Запчасти Case IH 2166 (9H-02) - ENGINE SHIELD AND SERVICE DECK (12) - CHASSIS

1

193435C3

SUPPORT

- engine service deck

1шт.

2

193146C4

ANGLE

- engine deck, rear support

1шт.

3

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

4

192959C6

SUPPORT

- deck

5шт.

5

143344A1

ANGLE

BRACKET - deck support, left-hand

1шт.

6

192960C7

ANGLE BAR

BRACKET - deck support, right-hand

1шт.

7

1979830C1

SUPPORT

- deck

1шт.

8

1979827C2

PLATE

DECK - engine compartment

1шт.

9

1979874C1

PLATE

- engine compartment, front

1шт.

10

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

10шт.

11

1977155C2

DOOR

- service deck

3шт.

12

186695C1

HINGE

- door

3шт.

13

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

30шт.

14

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

30шт.

15

1330481C2

SUPPORT

- LH Rear, Upper shield

1шт.

16

189768A1

COVER

SUPPORT - upper rear cover, Includes: decals, prior to combine P.I.N. JJC0180000, See Figure 9H-37 or 9H-39 for decals

1шт.

16a

196607A2

COVER

SUPPORT - upper rear cover, Includes: decals, combine P.I.N. JJC0180000 and after, See Figure 9H-37 or 9H-39 for decals

1шт.

17

1979316C3

SUPPORT

- engine compartment door

1шт.

18

480523R1

HAIR PIN COTTER

1шт.

19

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

21

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

9шт.

22

495-81002

WASHER,3/8"

- flat, 7/16 x 1-3/8 x 5/64 inch

2шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch, not shown

3шт.

24

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch, not shown

1шт.

25

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Not shown

1шт.

26

PO22778

SPACER,1/4" Pipe x 2"

- pipe, 1/4 x 2 inch, Not shown

1шт.

27

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Not shown Hex Flg, 5/16"-18 x 1/2", Serr

1шт.

28

1541854C3

SUPPORT

- door and hood

1шт.

29

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

1шт.

30

1302703C2

SHEET ASSY.

PLATE - rotor cover

1шт.

31

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

3шт.

32

1302413C1

PROP

LINK - front, door hold up

1шт.

33

568257R1

SPACER,1/2" Tube x 3/8"

- 1/2 x 3/8 inch

1шт.

34

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch

1шт.

35

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

3шт.

36

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

2шт.

37

567532R1

WASHER

- flat, special, 21/64 x 1/2 x 5/32 inch

1шт.

38

186197C93

TRAP DOOR

DOOR - engine and rotor drive cover, Includes: decal, prior to P.I.N. JJC0180000, See Figure 9H-37 for decal

1шт.

38a

195103A2

DOOR

- engine and rotor drive cover, P.I.N. JJC0180000 and after

1шт.

39

194477C2

HINGE

- rotor cover door, front

1шт.

40

194478C1

ROD

- rotor door hinge

1шт.

41

160638C1

HANDLE

- door

1шт.

42

188419C1

CHANNEL

BRACKET - grain tank, upper left-hand rear

1шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

44

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

45

237715A1

SUPPORT

- rear, engine deck, left-hand

1шт.

46

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

5шт.

47

237716A1

BRACKET

ANGLE - rear engine trim support

1шт.

48

1347130C2

SHEET

SUPPORT - engine, left-hand rear

1шт.

49

NSS

NOT SOLD SEPARAT

TRIM - 6 inch (152 mm) long, cut from 1330108CX bulk trim below

1шт.

50

702093C1

CABLE TIE

STRAP - tie

1шт.

51

188708A1

SUPPORT

- air cleaner, prior to P.I.N. JJC0180000

1шт.

51a

195102A3

SUPPORT

- air cleaner, P.I.N. JJC0180000 and after

1шт.

52

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

53

167800C1

CLIP

- door retaining clip

2шт.

54

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

2шт.

55

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

56

1977286C3

SUPPORT

- air shield

1шт.

57

143347A1

LATCH

- engine cover, Australia only

1шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 15240 mm (600 inch) long

1шт.
