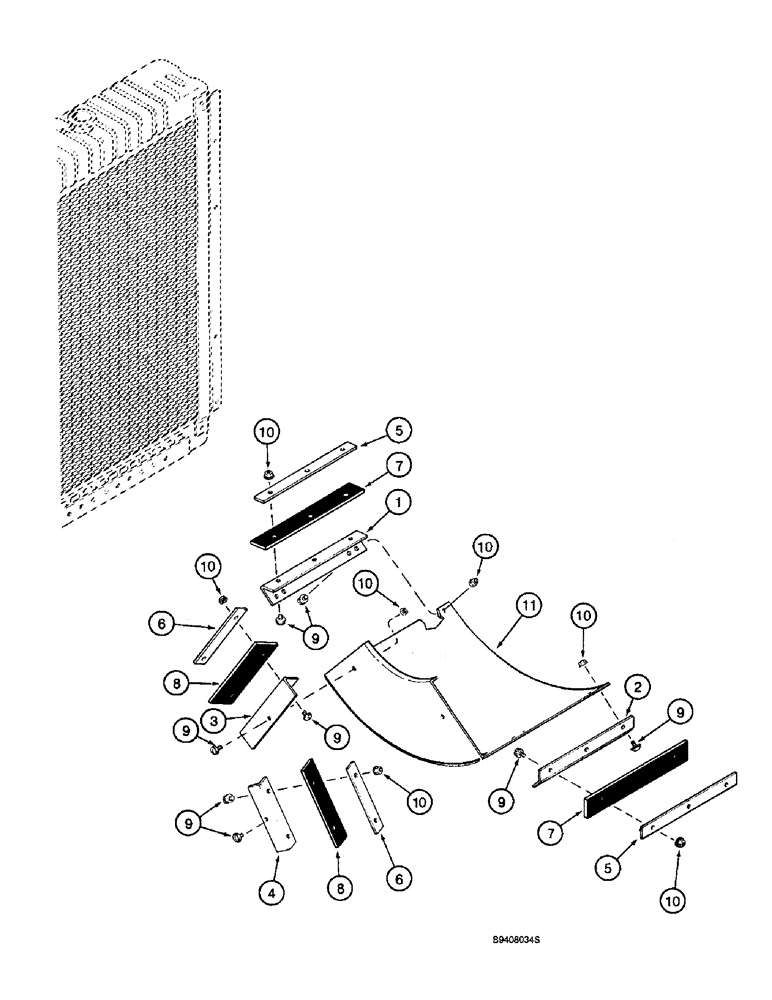

Запчасти Case IH 2166 (2-04) - ROTARY AIR SCREEN BAFFLE SEALS (01) - ENGINE

1

1977159C1

SUPPORT

- baffle, left-hand

1шт.

2

1977160C1

SUPPORT

- baffle, right-hand

1шт.

3

1977161C1

SUPPORT

- baffle, left-hand rear

1шт.

4

1977162C1

SUPPORT

- baffle, right-hand rear

1шт.

5

1977163C1

LARGE PLATE

STRIP - 11-13/16 inch (300 mm) long, baffle side

2шт.

6

1977164C1

SEALING STRIP

- 6-1/2 inch (165 mm) long, baffle rear

2шт.

7

1977165C1

SEAL

- 12 inch (304 mm) long, baffle side

2шт.

8

1977166C1

SEAL

- 8 inch (203 mm) long, baffle rear

2шт.

9

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

12шт.

10

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

12шт.

11

194224C1

BAFFLE ASSY.

BAFFLE - rotary air screen, See Figure 2-10, Ref. 6

1шт.
