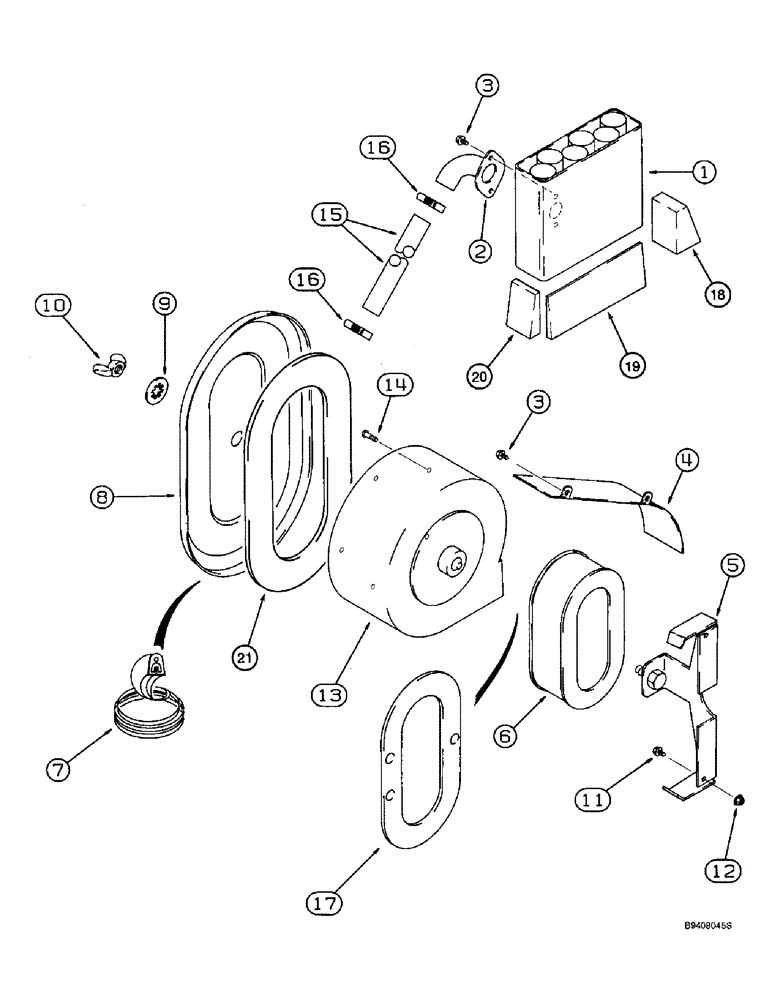

Запчасти Case IH 2166 (9G-38) - HEATING & AIR CONDITIONING SYSTEM, PRESSURIZER BLOWER, AIR FILTER & PRECLEANER MOUNTING (10) - CAB & AIR CONDITIONING

1

144300A2

PRECLEANER

- air conditioning

1шт.

2

144306A1

PRECLEANER

OUTLET - precleaner

1шт.

3

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10-24 x 5/8"

4шт.

4

144304A2

PROTECTOR

GUARD - air filter

1шт.

5

186976A2

SUPPORT

BRACKET - air filter

1шт.

6

144305A1

FILTER

- air

1шт.

7

199674A1

SEAL

TRIM - edge, 37-1/2 inch (953 mm) long, air filter

1шт.

8

144302A1

COVER

- air filter

1шт.

9

1347879C1

PLATE, LOCKING

WASHER - special

1шт.

10

A47102

WING NUT

- wing

1шт.

12

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

13

175435A2

BLOWER

- pressurizer, see figure 9G-10 for blower gasket

1шт.

14

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

- machine, pan Phillips, 5 - 0.8 x 16 mm

5шт.

15

195519A1

HOSE,25.40 mm ID x 5650.00 mm, SAE J20R3 D2

25.40 mm ID x 5650.00 mm, SAE J20R2 Type 1, Aspirator, See Figure 2-02, Ref. 33, For connecting tube (Replaces hose 135486A1)

1шт.

16

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

17

177505A2

GASKET

- air filter

1шт.

18

187479A1

INSULATOR

- precleaner, front

1шт.

19

187477A2

SEAL

- precleaner, side, 216 mm

1шт.

20

187478A1

SEAL

- precleaner, rear

1шт.

21

186400A1

GASKET

SEAL - air filter cover

1шт.

11

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

2шт.
