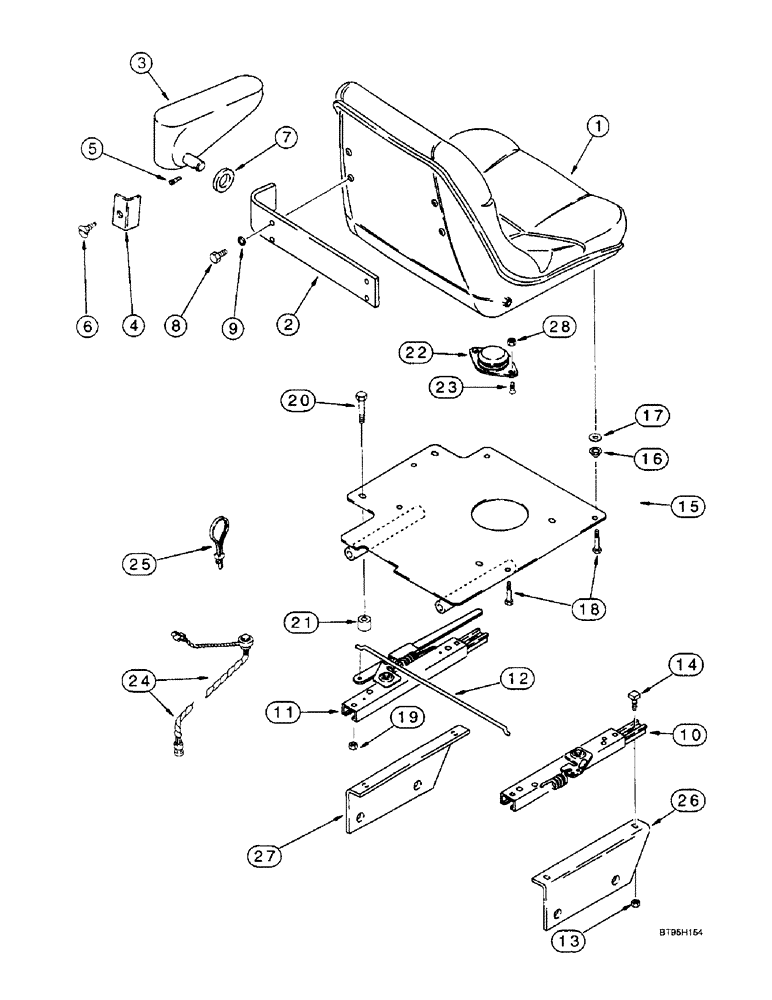

Запчасти Case IH 2166 (9G-34) - HEIGHT ADJUSTMENT SEAT, CUSHION AND SLIDE (10) - CAB & AIR CONDITIONING

180612A1

SEAT ASSY.

SEAT ASSEMBLY - height adjustment, Includes: Ref. 1 - 28 and parts shown on Figure 9G-36

1шт.

1

180614A1

SEAT ASSY.

SEAT - one-piece, without armrest

1шт.

1344104C1

SET OF PARTS

KIT - armrest, Includes: Ref. 2 - 9

2шт.

2

1344105C1

SUPPORT

BRACKET - armrest

1шт.

3

A45488

ARMREST

KIT - left-hand armrest, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - left-hand cover

1шт.

5

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, Hex Soc Hd, 1/4"-20 x 3/8"

1шт.

6

263-50510

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping, pan slotted, No. 10-16 x 5/8 inch

1шт.

7

A47352

WASHER

- wave, 1-1/8 inch ID

2шт.

8

NSS

NOT SOLD SEPARAT

BOLT - hex, special

4шт.

9

NSS

NOT SOLD SEPARAT

WASHER - lock, special

4шт.

180615A1

PACKAGE

KIT - seat slide, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

SLIDE - locking

1шт.

11

NSS

NOT SOLD SEPARAT

SLIDE - locking with handle

1шт.

12

NSS

NOT SOLD SEPARAT

ROD - wire

1шт.

13

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

14

117-109

SQUARE BOLT,5/18" - 16 x 3/4", Gr 5

4шт.

15

180616A2

LARGE PLATE

PLATE - seat adapter

1шт.

16

700711545

CUP WASHER

SPACER - cupped

4шт.

17

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

- flat, 11/32 x 7/8 x 1/16 inch

4шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

19

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

20

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

21

134144A1

SPACER

- plate

8шт.

22

242306C1

SWITCH - operator (Replaces switch 1983395C1)

1шт.

23

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

- machine, pan Phillips, 1/4 NC x 5/8 inch

2шт.

24

180601A1

WIRE HARNESS

HARNESS - seat, operator present

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

26

NSS

NOT SOLD SEPARAT

BRACKET - right-hand support

1шт.

Included in 180620A1 height adjustment kit shown on Figure 9G-36.

1шт.

27

NSS

NOT SOLD SEPARAT

BRACKET - left-hand support

1шт.

Included in 180620A1 height adjustment kit shown on Figure 9G-36.

1шт.

28

NSS

NOT SOLD SEPARAT

NUT - locking tab weld, 1/4 inch NC

2шт.
