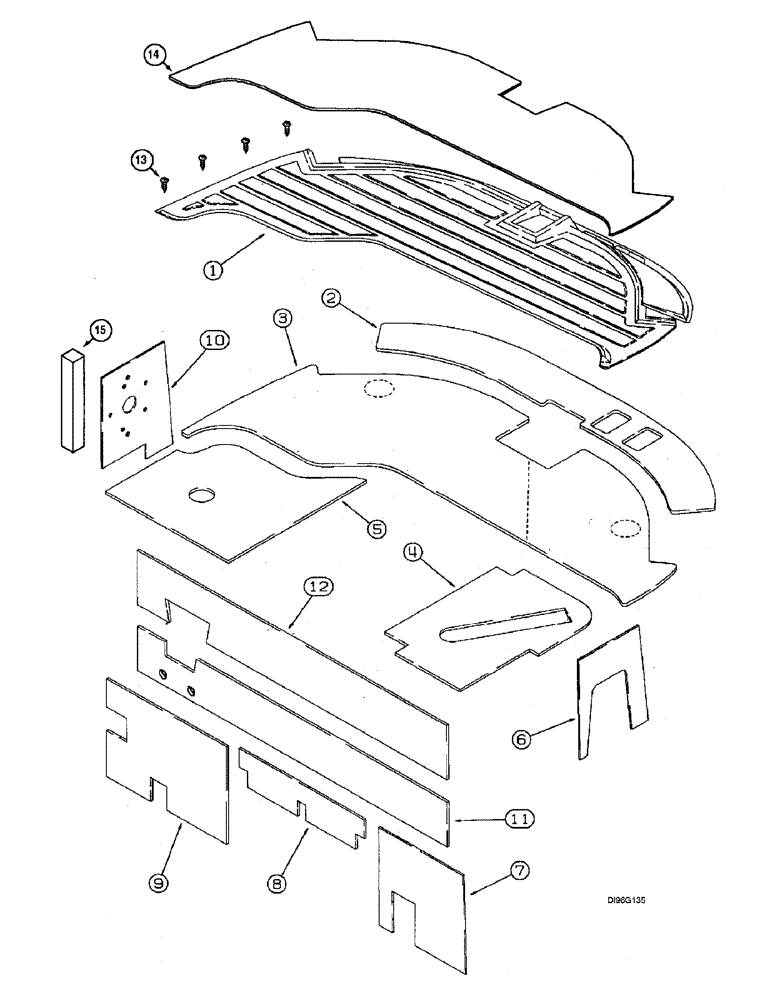

Запчасти Case IH 2166 (9G-10) - CAB, INSULATION AND FLOORMAT (10) - CAB & AIR CONDITIONING

1

132228A1

MAT

FLOORMAT - cab

1шт.

2

136485A1

MAT

INSULATION - floor, front

1шт.

3

136484A1

MAT

INSULATION - floor

1шт.

4

125038A1

FOAM INSULATION

INSULATION - foam, right-hand rear floor

1шт.

5

125037A1

PANEL

INSULATION - foam, left-hand rear floor

1шт.

6

125039A2

PANEL

INSULATION - foam, lower right-hand side, prior to combine P.I.N. JJC0182025

1шт.

6

247007A1

FOAM INSULATION

INSULATION - foam, lower right-hand side, combine P.I.N. JJC0182025 and after

1шт.

7

125040A1

PANEL

INSULATION - foam, lower right-hand rear

1шт.

8

119486A1

FOAM INSULATION

INSULATION - foam, lower rear center

1шт.

9

125041A1

PANEL

INSULATION - foam, lower left-hand rear

1шт.

10

125042A2

GASKET,6.4mm Thk

- pressurized blower

1шт.

11

137944A2

FOAM INSULATION

INSULATION - foam, center rear

1шт.

12

137945A1

FOAM INSULATION

INSULATION - foam, upper rear

1шт.

13

266-53516

SELF-TAP SCREW,Cross Oval Hd, #10 x 1"

SCREW - self-tapping, oval Phillips, No. 10 NC x 1 inch

4шт.

14

182658A1

PROTECTOR,Cardboard

COVER - floormat

1шт.

15

97192C1

SEAL

- foam, adhesive-backed, 19-5/8 inch (500 mm) long, cut from 1971350C1 bulk seal below

2шт.

1971350C1

SEAL

- bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.
