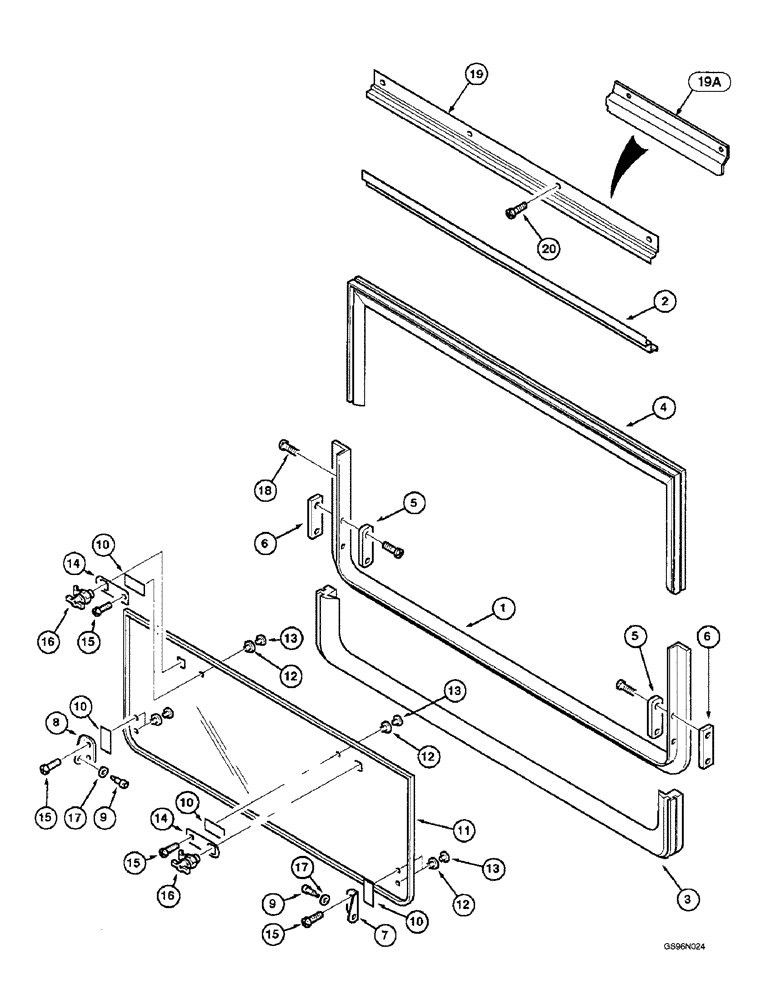

Запчасти Case IH 2166 (9G-09A) - CAB, REAR WINDOW, OPENABLE (10) - CAB & AIR CONDITIONING

247703A1

GLASS

WINDOW ASSEMBLY - openable, Includes: Ref. 1 - 18

1шт.

1

247904A1

WINDOW FRAME

FRAME - window, lower

1шт.

2

247903A1

WINDOW FRAME

FRAME - window, upper

1шт.

3

246010A1

SEAL,1102.5mm L

- lower frame

1шт.

4

246009A1

SEAL,1782.9mm L

- upper frame

1шт.

5

248379A1

PLATE

- hinge, inner

2шт.

6

248377A1

PLATE

- hinge, outer

2шт.

7

248380A1

HINGE

- RH

1шт.

8

248381A1

HINGE

- LH

1шт.

9

248410A1

HEX SOC SCREW

SCREW - socket head shoulder, 5/16 inch

2шт.

10

249363A1

ADHESIVE STRIP

TAPE - hinge bracket, 1-5/8 inch (40 mm), cut from 248383A1 bulk tape below

4шт.

11

248375A1

GLASS

- window

1шт.

12

248385A1

BUSHING,5.16mm ID x 6.35mm OD x 8.58mm L

- plastic

6шт.

13

248384A1

FLANGE NUT

- special

6шт.

14

248376A1

PLATE

- latch, anti-rotation

2шт.

15

249009A1

SELF-TAP SCREW,Cross Pan Hd, #8-32 x 3/8"

SCREW, SELF TAP, , Polyseal Cross Pan Hd, #8-32 x 3/8"

8шт.

16

249364A1

LOCK

LATCH - quarter turn cam

2шт.

17

249684A1

WASHER

- plastic

2шт.

18

260-14416

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW, SELF TAPPING, pan Phillips, No. 8-18 x 1"

4шт.

19

248239A1

SUPPORT

BRACKET - latch, no longer available, order bracket 253771A1, Ref. 19A

1шт.

19a

253771A1

SUPPORT

BRACKET - latch

1шт.

20

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10-24 x 5/8"

15шт.

248383A1

ADHESIVE STRIP

TAPE - bulk, double coated foam, 1296 inch (32918 mm) long

1шт.
