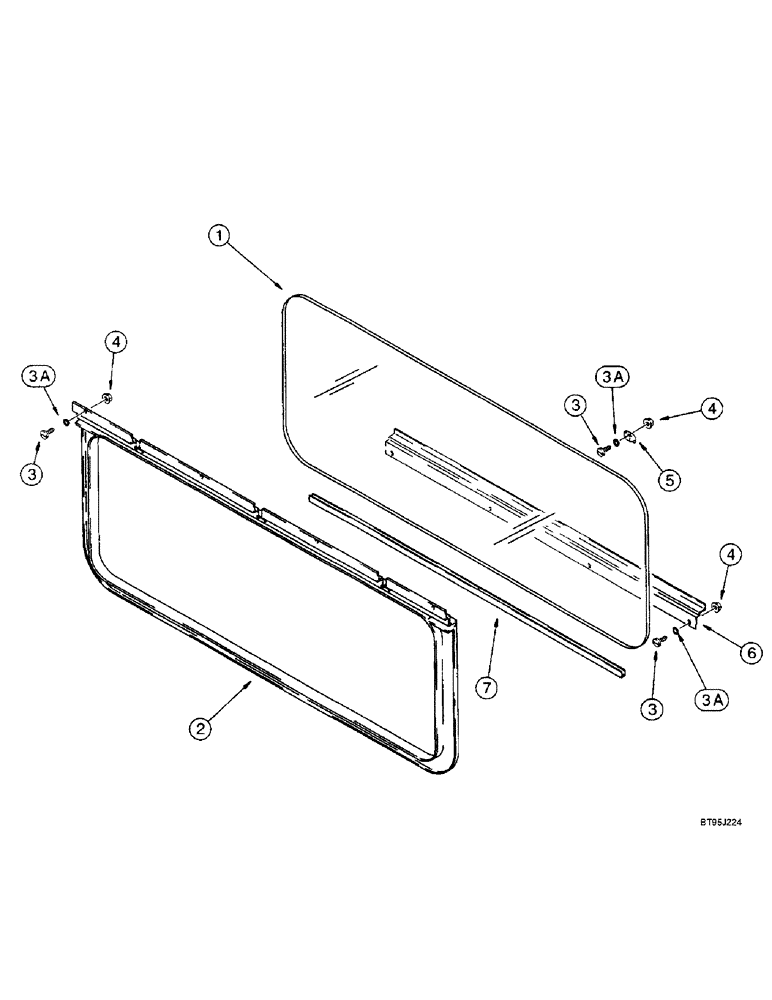

Запчасти Case IH 2166 (9G-08) - CAB, REAR WINDOW, FIXED (10) - CAB & AIR CONDITIONING

1

117725A2

GLASS,CAB

GLASS - rear window

1шт.

2

122722A2

FILLING STRIP

TRIM - rear window

1шт.

3

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

SCREW, SELF TAPPING, Cross Pan Hd, #10-24 x 3/4"

8шт.

3a

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

13шт.

5

129224A1

SPACER

- glass, if used

5шт.

6

117726A1

SUPPORT

BRACKET - window frame

1шт.

7

118185A1

PROTECTOR

TRIM - edge, 39-3/8 inch (1000 mm) long, cut from 2-6789T1 bulk trim below

1шт.

2-6789T1

SEAL, GLASS

TRIM - edge, bulk, 120 inch (3048 mm) long, sold by the foot

1шт.
