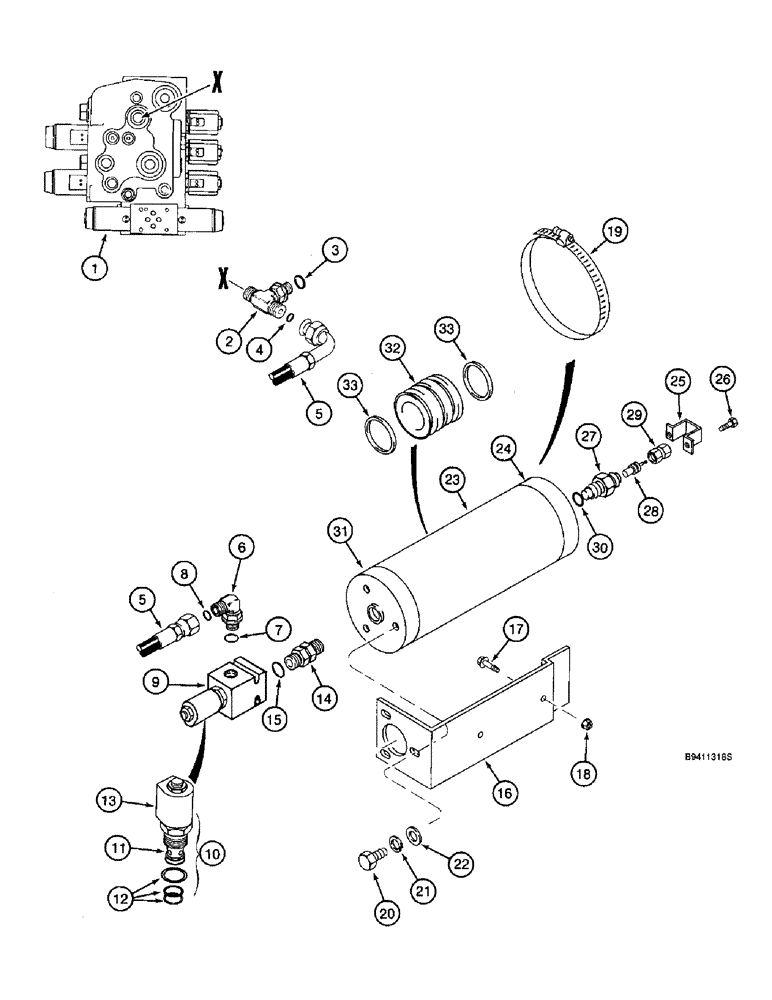

Запчасти Case IH 2166 (8-60) - ACCUMULATOR, MOUNTING AND SYSTEM (07) - HYDRAULICS

1

124565A3

VALVE, CONTROL

VALVE ASSEMBLY - header lift, parts list Figure 8-32

1шт.

2

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

- 1-14 face branch x face x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 3 & 4

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

128028A1

FLEXIBLE HOSE,12.7mm ID x 1140mm L

HOSE - supply, header lift accumulator, 44-7/8 inch (1140 mm) long

1шт.

6

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

- 90°, 13/16-16 face seal x 3/4-16" adjustable O-ring boss, Incl. Ref. 7 & 8

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

126008A2

VALVE

ASSEMBLY - accumulator, solenoid operated, Includes: Ref. 9 - 13

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 124565A3

1шт.

10

126048A1

SOLENOID

VALVE ASSEMBLY - solenoid, poppet type

1шт.

11

NSS

NOT SOLD SEPARAT

VALVE - 2-way, order valve assembly 126048A1

1шт.

12

149942C1

SEAL KIT

KIT - seal replacement, poppet solenoid valve, Includes: (2) O-rings and (1) backup ring

1шт.

13

1340843C1

SOLENOID,12V

KIT - solenoid coil, 12 volt

1шт.

14

183510A1

FITTING

UNION - special, valve to accumulator, Includes: Ref. 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

129512A1

SUPPORT

BRACKET - mounting, accumulator

1шт.

17

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

19

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

CLAMP - adjustable, 3-3/4 - 4-5/8 inch diameter

1шт.

20

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

3шт.

21

492-11038

LOCK WASHER,3/8"

3шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

108276A2

ACCUMULATOR

ASSEMBLY - hydraulic, header lift, Includes: Ref. 23 - 35

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - accumulator, order accumulator 108276A2

1шт.

24

NSS

NOT SOLD SEPARAT

CAP - end, gas, order accumulator 108276A2

1шт.

25

192895A1

PROTECTOR

GUARD - valve

1шт.

26

280-1356

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - self-tapping, hex washer head, No. 10-16 x 3/8 inch

2шт.

192900A1

VALVE

ASSEMBLY - accumulator charging, Includes: Ref. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

VALVE - accumulator charging, order valve assembly 192900A1

1шт.

28

1978143C1

PISTON

CORE - valve

1шт.

29

1978144C1

CAP

- valve

1шт.

30

1978158C1

O-RING

- valve

1шт.

31

NSS

NOT SOLD SEPARAT

CAP - end, hydraulic, order accumulator 108276A2

1шт.

32

192894A1

PISTON

- accumulator

1шт.

192936A1

SEAL KIT

KIT - seal repair, Includes: Ref. 33 - 35

1шт.

33

NSS

NOT SOLD SEPARAT

RING - wear, teflon, piston, order kit 192936A1

2шт.

34

NSS

NOT SOLD SEPARAT

RING - "V" type, not shown, order kit 192936A1

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - end, body, not shown, order kit 192936A1

2шт.
