Запчасти Case IH 2166 (8-58) - FEEDER CLUTCH CYLINDER (07) - HYDRAULICS

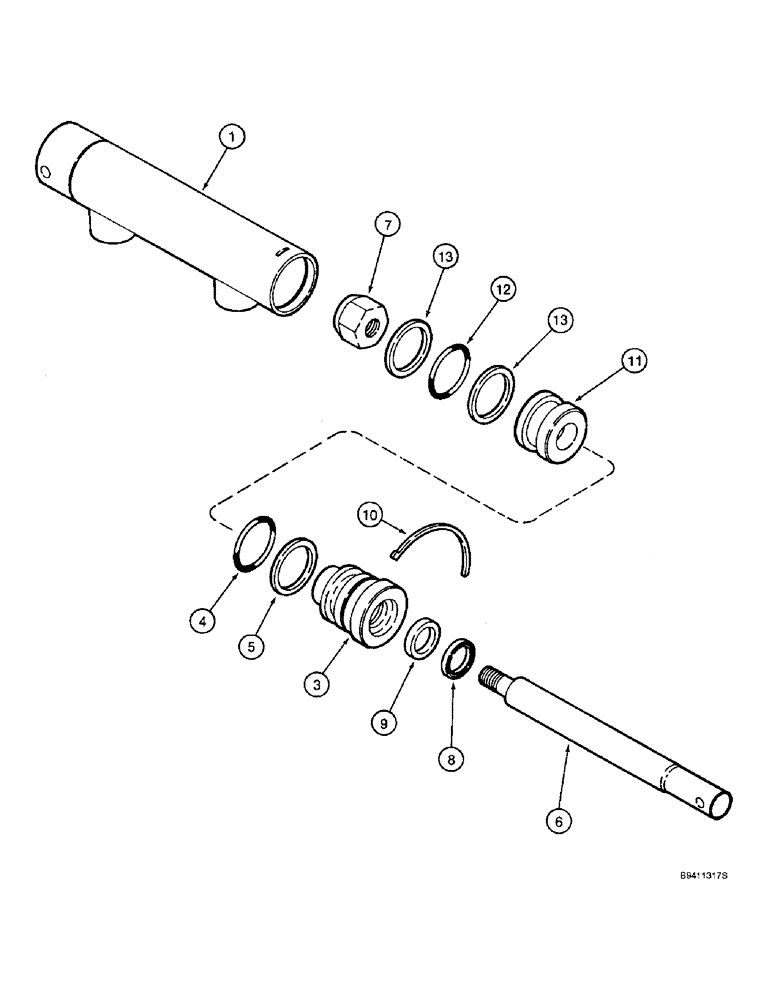

Схема запчастей Case IH 2166 - (8-58) - FEEDER CLUTCH CYLINDER (07) - HYDRAULICS
6
1
12
8
13
7
5
13
9
10
3
11
4

Артикул

Название

Примечание

Количество

133405C92

CYLINDER

ASSEMBLY - feeder clutch, 2 (51) ID x 2-1/2 inch (63 mm) stroke, Includes: Ref. 1 - 13

1шт.

87337239R

REMAN-HYD CYLINDER

2166 CASE IH AXIAL-FLOW COMBINE (NA), Assembly, feeder clutch, 2 (51) ID x 2-1/2 inch (63 mm) stroke (1/95-12/97), Reman for New PN 133405C92

1шт.

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 133405C92

1шт.

3

108641C1

GLAND

- cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92.

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92.

1шт.

6

108639C1

PISTON ROD

ROD - piston, cylinder

1шт.

7

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod seal, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92.

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston rod urethane, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92.

1шт.

10

NSS

NOT SOLD SEPARAT

WIRE - retaining, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92.

1шт.

11

108640C2

PISTON

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92.

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - backup, O-ring, order kit 63884C92

2шт.

63884C92

SEAL KIT

KIT - seal, Includes: Ref. 4, 5, 8, 9, 10 and 12

1шт.
