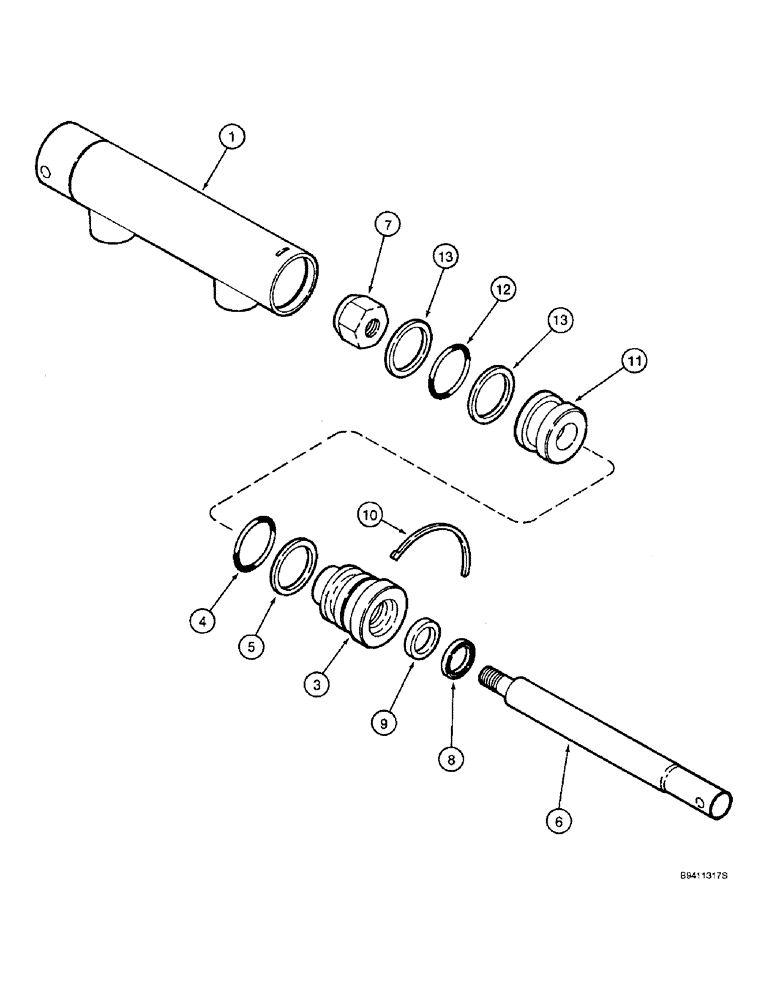

Запчасти Case IH 2166 (8-58[A]) - SEPARATOR CLUTCH CYLINDER (07) - HYDRAULICS

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

ASSEMBLY - separator clutch, 2 (51) ID x 12-1/2 inch (318 mm) stroke, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 133408C92

1шт.

3

108641C1

GLAND

- cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92.

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - backup, O-ring, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92.

1шт.

6

108639C1

PISTON ROD

ROD - piston, cylinder

1шт.

7

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod seal, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92.

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - urethane, piston rod, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92.

1шт.

10

NSS

NOT SOLD SEPARAT

WIRE - retaining, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92.

1шт.

11

108640C2

PISTON

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92.

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - backup, O-ring, order kit 63884C92

2шт.

63884C92

SEAL KIT

KIT - seal, includes: Ref. 4, 5, 8, 9, 10 and 12

1шт.
