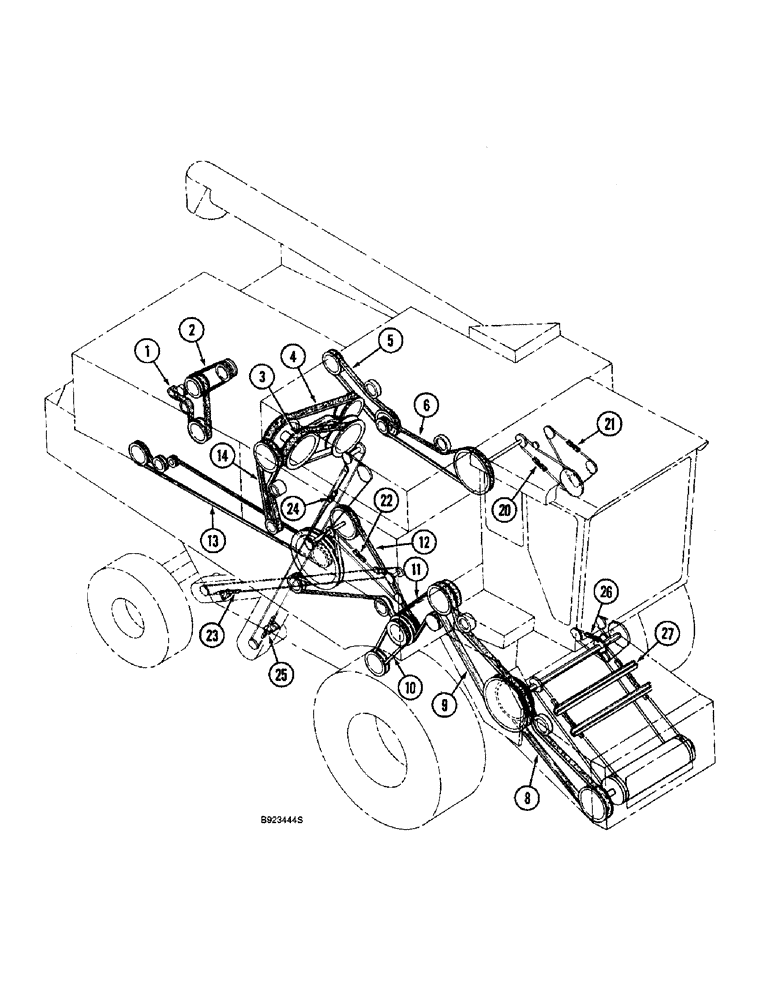

Запчасти Case IH 2166 (1-16) - PICTORIAL INDEX, BELTS, CHAINS (00) - PICTORIAL INDEX

1

Engine Fan and Alternator Belt, Page 2-21

1шт.

2

Air Conditioning Compressor Belt, Page 9G-53

1шт.

3

Rotor Drive Belt, Page 9A-9, 9B-5

1шт.

4

Separator Drive Belt, Page 9A-15

1шт.

5

Auxiliary Pump Drive Belt, Page 8-25

1шт.

6

Grain Tank Unloader Drive Belt, Page 9E-13

1шт.

8

Feeder Jackshaft Drive Belt, Page 9A-27

1шт.

9

Feeder Drive Belt, Page 9A-23

1шт.

10

Cleaning Fan Drive Belt, Page 9C-13

1шт.

11

Cleaning Fan Jackshaft Belt, Page 9A-3

1шт.

12

Elevator Drive Belt, Page 9A-7

1шт.

13

Straw Spreader Drive Belt, Page 9F-5

1шт.

14

Straw Chopper Drive Belt, Page 9F-9

1шт.

20

Grain Tank Unloader Drive Chain, Page 9E-19

1шт.

21

Rear Horizontal Auger Drive Chain, Page 9E-19

1шт.

22

Tailings Elevator Drive Chain, Page 9D-37

1шт.

23

Tailings Elevator Conveyor Chain, Page 9D-33

1шт.

24

Clean Grain Elevator Drive Chain, Page 9D-21

1шт.

25

Clean Grain Elevator Conveyor Chain, Page 9D-7

1шт.

26

Feeder Reverser Drive Chain, Page 9A-47, 9A-51

1шт.

27

Feeder Conveyor Chain, Page 9A-41

1шт.

28

Rotor Drive Speed Adjustment Chain, not shown, Page 9B-7

1шт.
