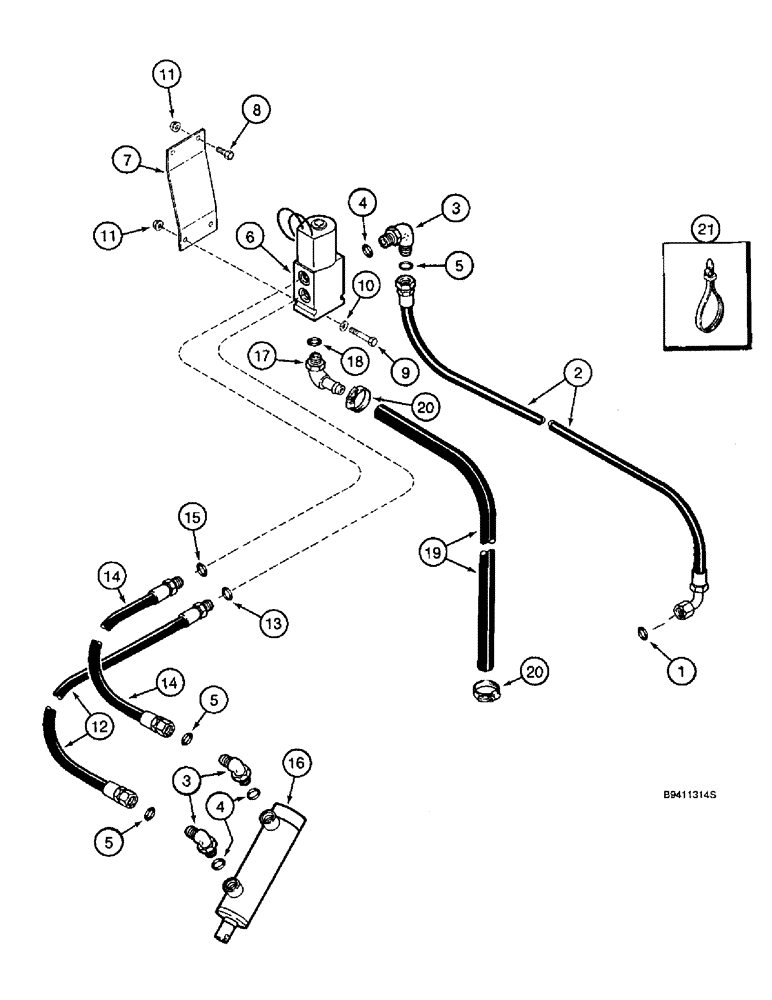

Запчасти Case IH 2166 (8-52) - SEPARATOR CLUTCH SYSTEM (07) - HYDRAULICS

1

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

2

128075A2

HOSE

- separator clutch valve supply, 45-1/4 inch (1150 mm) long

1шт.

3

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree, 11/16-16 face seal x 9/16-18 inch adjustable O-ring boss, Includes: Ref. 4 & 5

3шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

6

131152A1

CONTROL VALVE

VALVE ASSEMBLY - separator clutch, parts list Figure 8-56

1шт.

7

187506C1

SUPPORT

- separator clutch valve

1шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

9

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

10

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

- flat, 11/32 x 3/4 x 3/16 inch

2шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

12

136476A1

HOSE

ASSEMBLY - separator clutch disengage, 16-15/16 inch (430 mm) long, Includes: Ref. 13

1шт.

14

136477A1

HOSE

ASSEMBLY - separator clutch engage, 21-1/16 inch (535 mm) long, Includes: Ref. 15

1шт.

16

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

ASSEMBLY - 2 (51) ID x 12-1/2 inch (318 mm) stroke, separator clutch, parts list Figure 8-58

1шт.

17

217-347

FITTING,90 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

ELBOW - 90 degree, 3/8 stem end x 9/16-18 inch adjustable O-ring boss, Includes: Ref. 18

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE - clutch valve return, 42-15/16 inch (1090 mm) long, cut from S118400X bulk hose below

1шт.

20

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

CLAMP, HOSE, , Adjustable #6, 0.44/0.78 Type M Worm

2шт.

21

702093C1

CABLE TIE

STRAP - tie

1шт.

S118400X

LARGE HOSE,9.53mm ID x 7620mm L, SAE 30R2

HOSE - bulk, 3/8 (10) x 5/8 (15) x 300 inch (7620 mm) long

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
