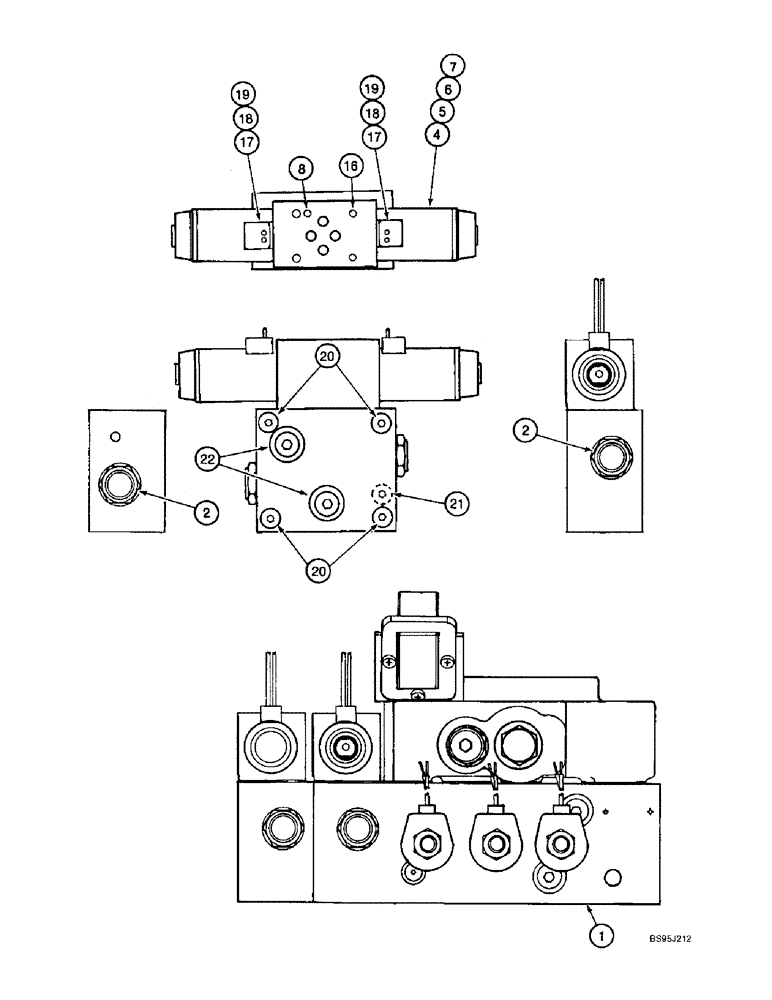

Запчасти Case IH 2166 (8-34) - CONTROL VALVE, HEADER LIFT WITH FORE AND AFT VALVE ASSEMBLY (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
124566A3
VALVE, CONTROL
VALVE ASSEMBLY - header lift with reel fore and aft, Includes: Ref. 1 - 22
1шт.
1
124565A3
VALVE, CONTROL
VALVE ASSEMBLY - header lift, parts list Figures 8-33 and 8-33B, Includes: Ref. 2 - 22
1шт.
131153A2
CONTROL VALVE
VALVE ASSEMBLY - reel fore and aft, Includes: Ref. 2 - 22
1шт.
2
190712A1
VALVE
ASSEMBLY - check, single pilot operated, Includes: Ref. 3
2шт.
190990A1
VALVE
ASSEMBLY - 4-way, 3 position, stack, Includes: Ref. 4 - 19
1шт.
4
196736A1
BODY
ARMATURE - solenoid
2шт.
5
196737A1
SPLIT PIN/SAFETY PIN
PIN - push
2шт.
6
196738A1
SPRING
- centering
2шт.
7
196739A1
WASHER
- special
2шт.
8
196710A1
PLUG
- orifice
1шт.
9
191120A1
SEAL KIT
KIT - seal replacement, 4-way, 3 position valve, not shown, Includes: Ref. 10 - 15
1шт.
10
238-5012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
-012, 70 Duro, .364" ID x .070" Thk
4шт.
11
238-5015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro
-015, 70 Duro, .551" ID x .070" Thk
2шт.
12
238-5017
O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro
-017, 70 Duro, .676" ID x .070" Thk
2шт.
13
238-5020
O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro
-020, 70 Duro, .864" ID x .070" Thk
2шт.
14
238-5114
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
2шт.
15
S83071
BACK-UP RING
RING - backup
2шт.
16
61-31020
HEX SOC SCREW,#10 - 24 x 1 1/4"
SCREW, , Mounting Hex Soc Hd, #10-24 x 1 1/4"
4шт.
18
188106A1
NUT
- special, solenoid coil
2шт.
19
238-5017
O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro
-017, 70 Duro, .676" ID x .070" Thk
2шт.
20
864-10080
HEX SOC SCREW,M10 x 80mm, Cl 8.8
4шт.
21
238-5111
O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro
1шт.
22
238-5117
O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro
2шт.
Выбрано товаров: 25
