Запчасти Case IH 2166 (8-08) - HYDROSTATIC PUMP SUCTION FILTER (07) - HYDRAULICS

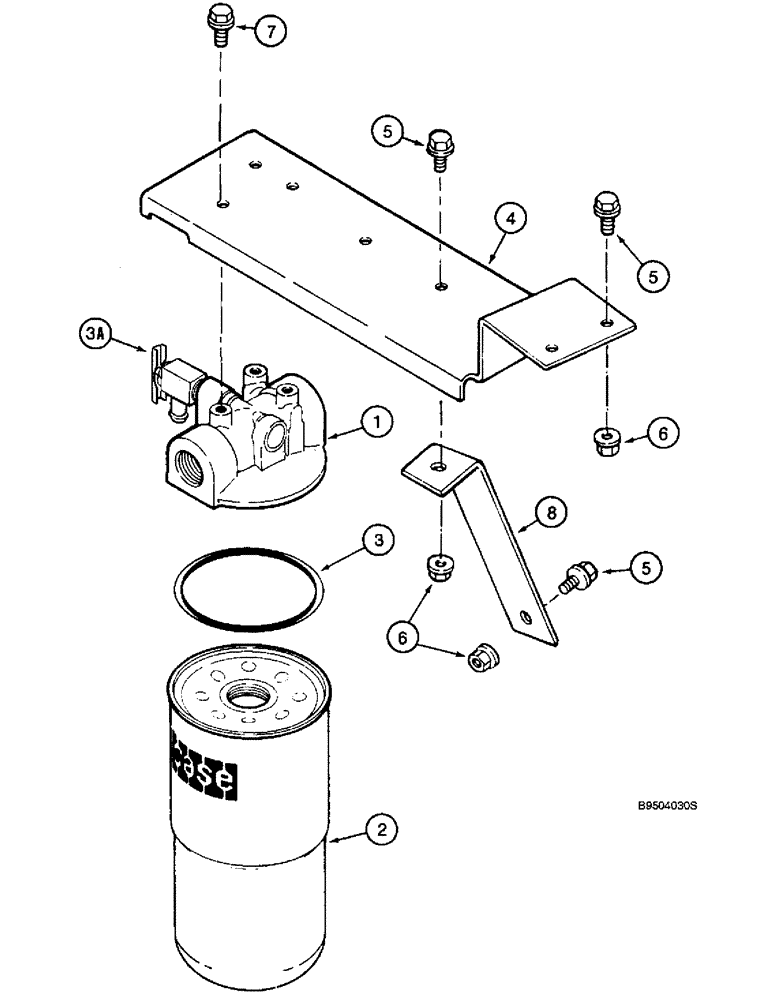

Схема запчастей Case IH 2166 - (8-08) - HYDROSTATIC PUMP SUCTION FILTER (07) - HYDRAULICS
6
5
4
1
5
7
3a
5
3
2
8
6

Артикул

Название

Примечание

Количество

87784C92

HYDRAULIC OIL FILTER

FILTER ASSEMBLY - hydrostatic pump suction, Includes: Ref. 1 - 3A

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter, order filter assembly 87784C92

1шт.

2

A177605

HYDRAULIC OIL FILTER

ELEMENT - filter, order kit 1329214C1

1шт.

Both elements must be changed at the same time.

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET - filter element, order kit 1329214C1

1шт.

3a

301803R1

SHUT-OFF VALVE

VALVE - shutoff, drain

1шт.

4

1347113C3

BRACKET

SUPPORT - charge filter, suction mounting

1шт.

5

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

Suction filter mounting Hex Flg, 3/8"-16 x 1", Serr

4шт.

6

231-5146

FLANGE NUT,3/8"-16

Suction filter mounting Flg, USR, 3/8"-16

4шт.

7

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

- hex serrated flange, 3/8 NC x 1/2 inch, suction filter mounting

3шт.

8

1347116C2

SUPPORT

BRACKET - charge filter support, suction mounting

1шт.

1329214C1

HYDRAULIC OIL FILTER

KIT - filter element, Includes: two (2) elements, four (4) gaskets and instructions, suction mounting

1шт.

Выбрано товаров: 12
