Запчасти Case IH 2166 (8-04) - HYDROSTATIC PUMP HYDRAULIC SYSTEM, RESERVOIR TO PUMP (07) - HYDRAULICS

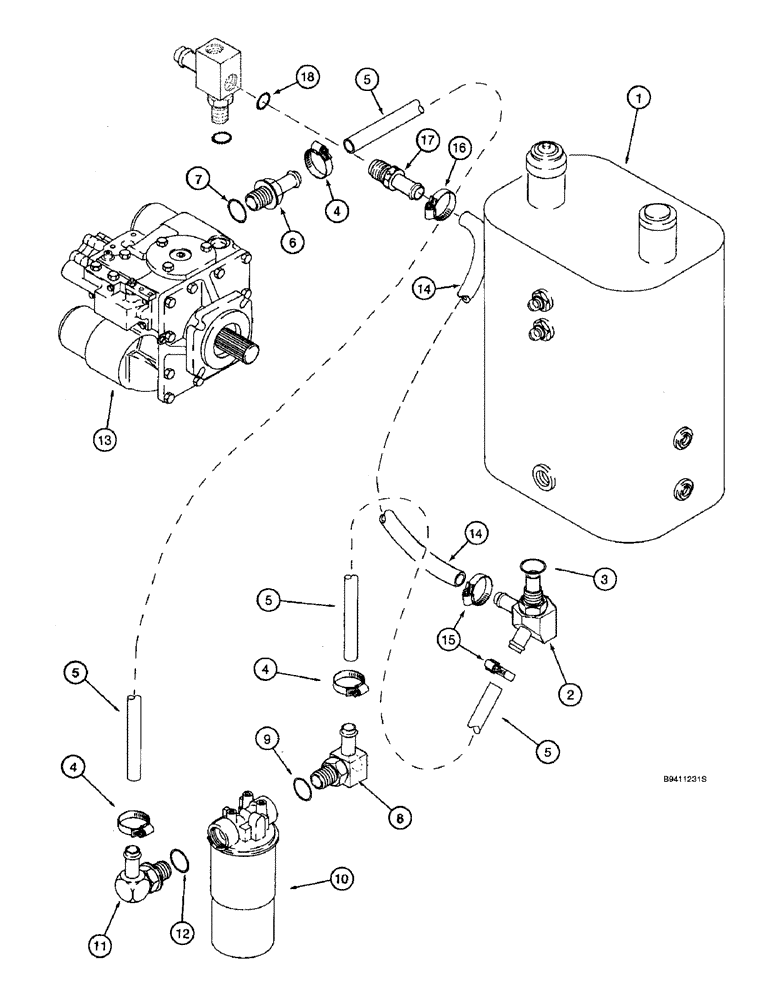

Схема запчастей Case IH 2166 - (8-04) - HYDROSTATIC PUMP HYDRAULIC SYSTEM, RESERVOIR TO PUMP (07) - HYDRAULICS
9
14
6
3
2
5
8
13
5
1
4
18
5
5
4
4
10
16
7
15
14
17
11
12

Артикул

Название

Примечание

Количество

1

123413A3

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, parts list Figure 8-02

1шт.

2

182812A1

TEE

ASSEMBLY - special, Includes: Ref. 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

4

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adjustable 1.25/2.125 HD Worm, W/liner

3шт.

5

1541688C1

FLEXIBLE HOSE

HOSE - charge pump suction, 26 inch (660 mm) long, cut from 1541953C1 bulk hose below

2шт.

6

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

Includes Ref. 7 1 1/4" Hose X 1 5/16"-12 ORB, Beaded

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

8

123522A1

FITTING

TEE - ASSEMBLY special, Includes: Ref. 9

1шт.

9

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

10

87784C92

HYDRAULIC OIL FILTER

FILTER ASSEMBLY - hydraulic charge pump, parts list Figure 8-08

1шт.

11

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW, 90°, 1 1/4" Hose x 1 5/8"-12 ORB Beaded, Adjustable, Includes Ref. 12

1шт.

12

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

13

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, parts list Figures 6-18 - 6-28

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE - tee to cooler bypass valve, 26 inch (660 mm) long, cut from 364361C1 bulk hose below

1шт.

15

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adjustable 1.00/1.875 HD Worm, W/liner

2шт.

16

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

CLAMP, HOSE, , Adjustable #16, .81/1.50 Type F Worm, W/liner

1шт.

17

123487A1

VALVE

ASSEMBLY - bypass, 40 psi, Includes: Ref. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

1541953C1

HOSE

- bulk, 1-1/4 (32) ID x 300 inch (7620 mm) long

1шт.

364361C1

HOSE

- bulk, 1 (25) ID x 600 inch (15240 mm) long

1шт.

Выбрано товаров: 20
