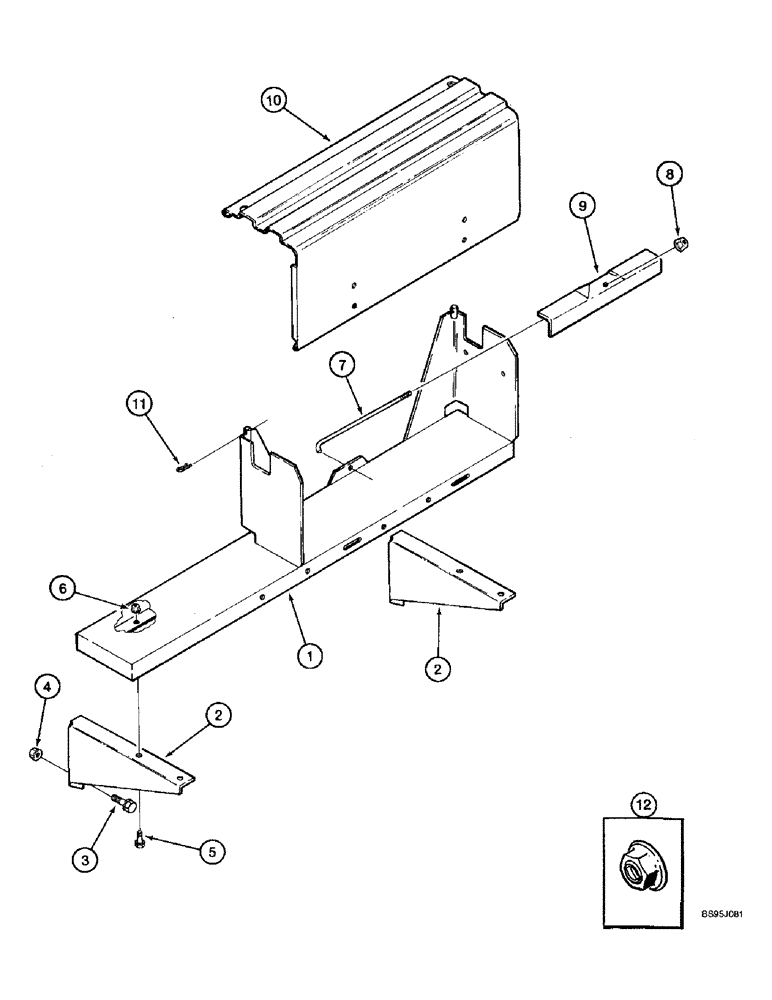

Запчасти Case IH 2166 (4-54) - BATTERY BOX (06) - ELECTRICAL

1

142490A2

SUPPORT

- battery box

1шт.

REF ITEM 1 P/N 142490A2-IF DLR IS LOOKING FOR THE TOOL BOX BRACKET WHICH ATTACHES TO THIS SUPPORT, PLS SEE KIT BREAKDOWN OF P/N 141546A2 TOOL BOX KIT. REF CASE# 463297 (ALLEN JANSSEN) JBEDFORD 9/15/97.

1шт.

2

142495A2

SUPPORT

BRACKET - box support

2шт.

3

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

4

231-5146

FLANGE NUT,3/8"-16

4шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

7

A147915

BOLT

- hook, battery

1шт.

8

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

9

A162337

CLAMP

- hold down

1шт.

10

142496A1

COVER

- battery box

1шт.

11

480523R1

HAIR PIN COTTER

2шт.

12

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

4шт.

13

135370A1

PROTECTION STRIP

TRIM - edge, 7-5/8 inch (194 mm) long, cut from 1330108CX bulk trim below, not shown

2шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long

1шт.
