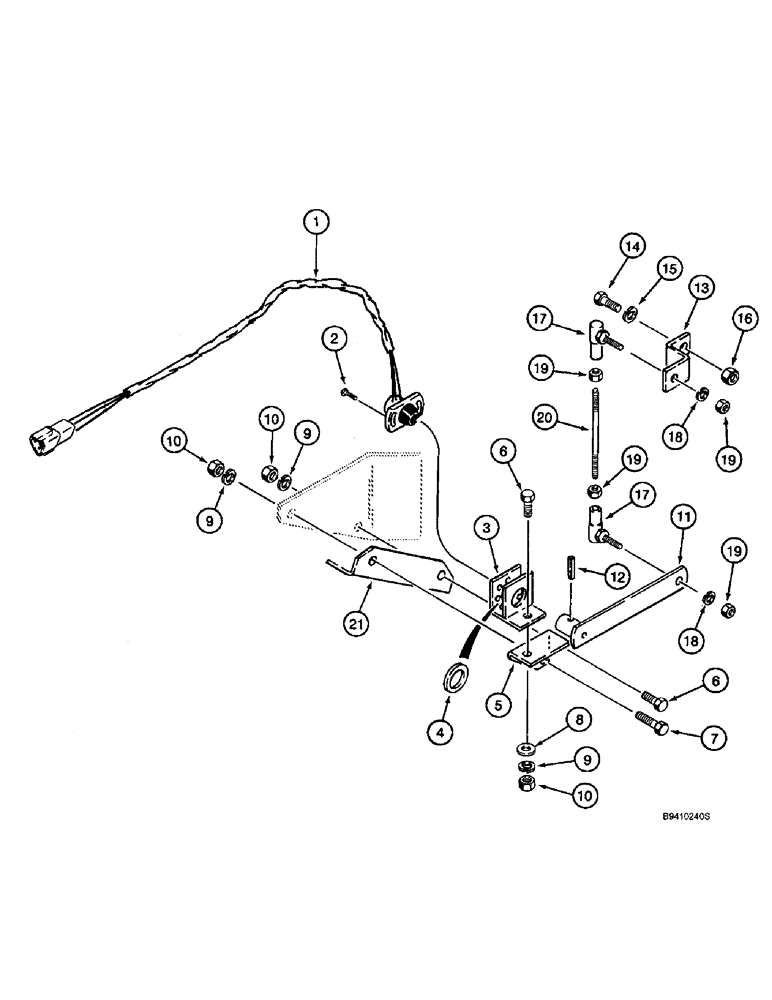

Запчасти Case IH 2166 (4-44) - FIELD TRACKER SENSOR POTENTIOMETER MOUNTING (06) - ELECTRICAL

1

100283A1

POTENTIOMETER,4000 Ohm

Spring Loaded, See Figure 4-42 for Harness 4000 Ohm

1шт.

2

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

- machine, pan Phillips, No. 8 NC x 3/8"

2шт.

3

100297A1

BRACKET

- pivot arm

1шт.

4

108651A1

WASHER

- special

1шт.

5

100293A1

SUPPORT

- lower

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

5шт.

11

100296A1

ARM ASSY.

ARM - pivot

1шт.

12

38-3806

PIN,3.17mm OD x 9.53mm L, Coiled

1шт.

13

100294A1

SUPPORT

- upper

1шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

17

100282A1

BALL JOINT

JOINT - ball, 1/4 inch NF

2шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

425-114

NUT,1/4"-28, G5

4шт.

20

100281A1

STUD

ROD - adjusting

1шт.

21

100289A1

ANGLE

- shield support

2шт.
