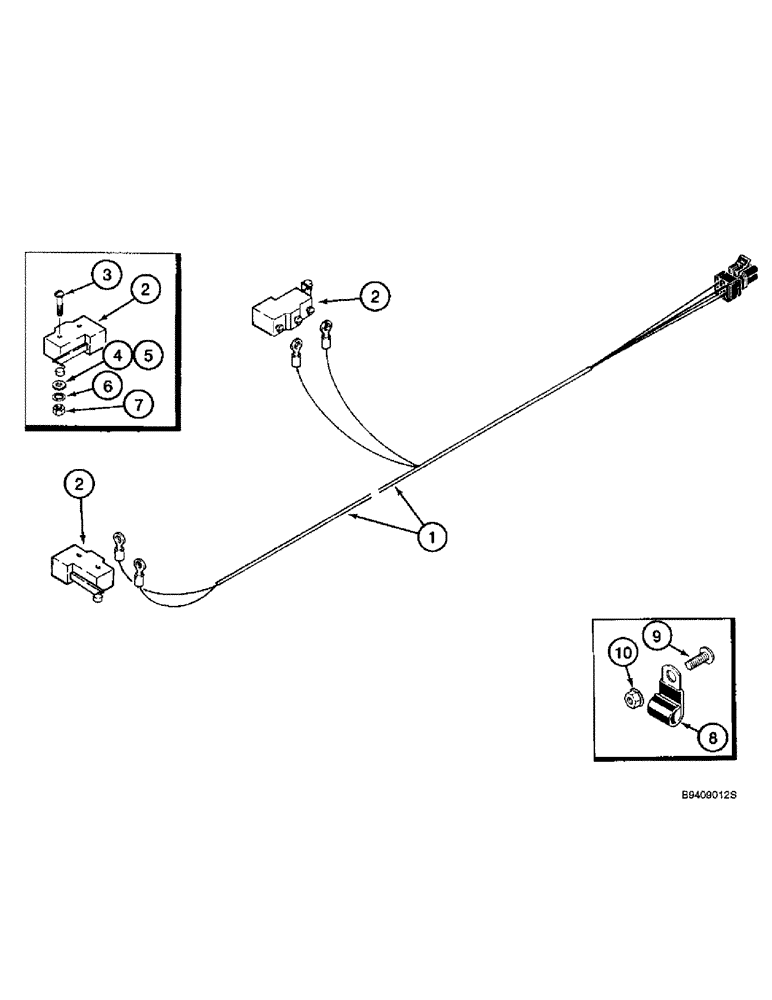

Запчасти Case IH 2166 (4-32) - ROTOR LIMIT SWITCH HARNESS (06) - ELECTRICAL

1

245240C1

WIRE HARNESS

HARNESS - rotor limit switch

1шт.

2

128298A2

MECHANICAL SWITCH

- limit, rotor

2шт.

3

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

- machine, pan head slotted, No. 6 NC x 1-1/4 inch

4шт.

4

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

- flat, 17/64 x 3/4 x 1/16 inch

2шт.

5

495-31016

WASHER,#6

2шт.

6

138526

LOCK WASHER

- internal tooth lock, special, No. 6

4шт.

7

225-14106

NUT,#6-32

4шт.

8

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

Retaining (Replaces clamp 363444R1) J, 9/16" Insul, 3/8" Bolt

1шт.

9

477-73808

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1/2"

BOLT - serrated slotted truss head, 3/8 NC x 1/2 inch (Replaces screw 116494C1 )

1шт.

10

231-5146

FLANGE NUT,3/8"-16

1шт.
