Запчасти Case IH 2166 (4-28) - REAR HARNESS (06) - ELECTRICAL

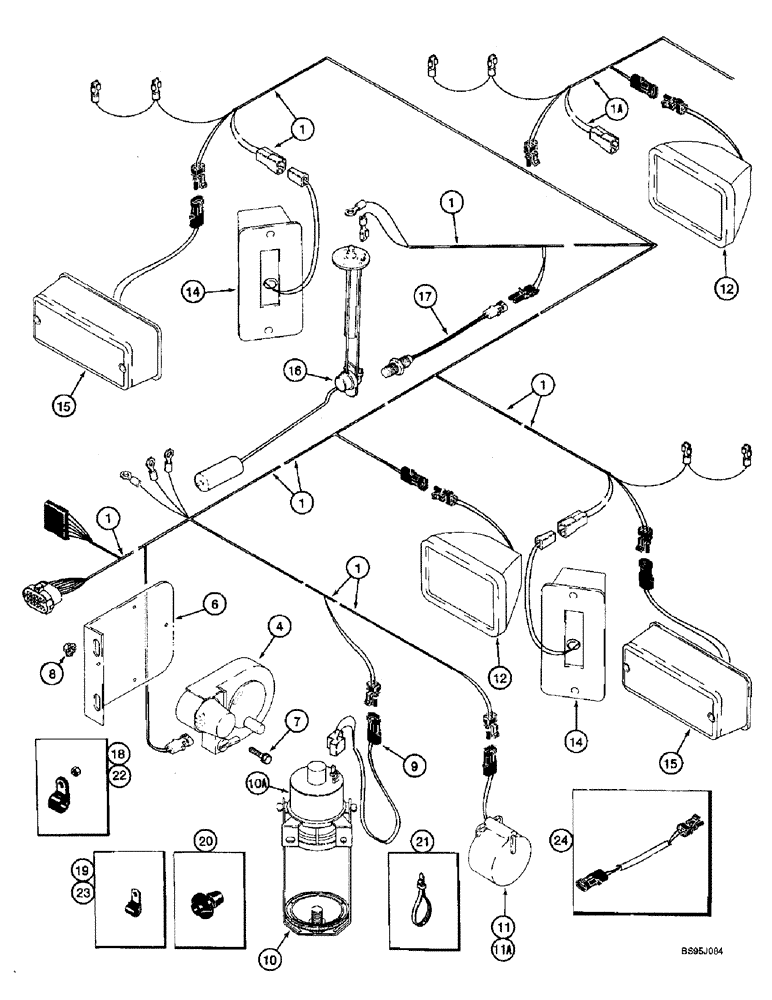

Схема запчастей Case IH 2166 - (4-28) - REAR HARNESS (06) - ELECTRICAL
1a
12
9
15
7
1
15
10
1
1
14
1
19
6
8
23
21
16
17
11
10a
1
24
22
14
18
12
20
11a
1
4

Артикул

Название

Примечание

Количество

1

184748A1

HARNESS

ASSEMBLY - rear, used on models with one rear flood lamp, Includes: Ref. 2 & 3, no longer available, order harness 184748A2, Ref. 1A

1шт.

1a

184748A2

HARNESS

ASSEMBLY - rear, used on models with two rear flood lamps, Includes: Ref. 2 & 3

1шт.

2

187308A1

CAP

- splice connector, not shown

1шт.

3

187309A1

BAR

- buss, 6 terminal, not shown, cut as needed

1шт.

4

127813A1

LAMP

ASSEMBLY - service, right-hand, Includes: Ref. 5

1шт.

5

P40556

BULB,12V, 10W

- lamp, 12 volt, not shown

1шт.

6

139049A2

SUPPORT

Bracket - Lamp Mounting

1шт.

7

905-8020

BOLT,Hex Flg, M8 x 20mm

- hex serrated flange, 8 - 1.25 x 20 mm

4шт.

8

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

9

141730A1

WIRE HARNESS

HARNESS - ether injection solenoid

1шт.

10

185552A2

SOLENOID

ASSEMBLY - ether injection, 12 volt, parts list Figure 2-16, Includes: Ref. 10A

1шт.

10a

190752A1

HOUSING

- ether injection solenoid

1шт.

11

1345485C1

TRANSMITTER

SENSOR - monitor control, rotary air screen, use with Ref. 24 adapter, no longer available, order sensor 1345485C2, Ref. 11A

1шт.

11a

1345485C3

TRANSMITTER

SENSOR - rotary air screen, does not require Ref. 24 adapter

1шт.

12

185116A1

HEADLIGHT,12V, 37.5W

LAMP ASSEMBLY - rear flood, Includes: Ref. 13

1-2шт.

13

139120A1

BULB

- lamp, Type C-6, No. 894, not shown

1шт.

14

130882C91

LAMP

LAMP ASSEMBLY - warning, parts list Figure 4-48

2шт.

15

92260C1

LAMP,12V, 27W, Red

ASSEMBLY - stop and tail, parts list Figure 4-48

2шт.

16

198024C1

FUEL GAUGE

SENSOR - fuel level

1шт.

17

245193C2

SENSOR

- speed, straw spreader

1шт.

18

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

- P-type, 7/8 inch ID, rear harness

8шт.

19

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

Retaining, Rear harness (Replaces clamp 363444R1) J, 9/16" Insul, 3/8" Bolt

3шт.

20

195804C1

GROMMET

- rear harness

2шт.

21

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch, Rear harness

1шт.

22

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

8шт.

23

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

- retaining, ether solenoid harness

1шт.

24

224073A1

ADAPTER

- shaft speed sensor filter, use with Ref. 11 sensor to alleviate the flashing lamps of the grain scan monitor

1шт.
