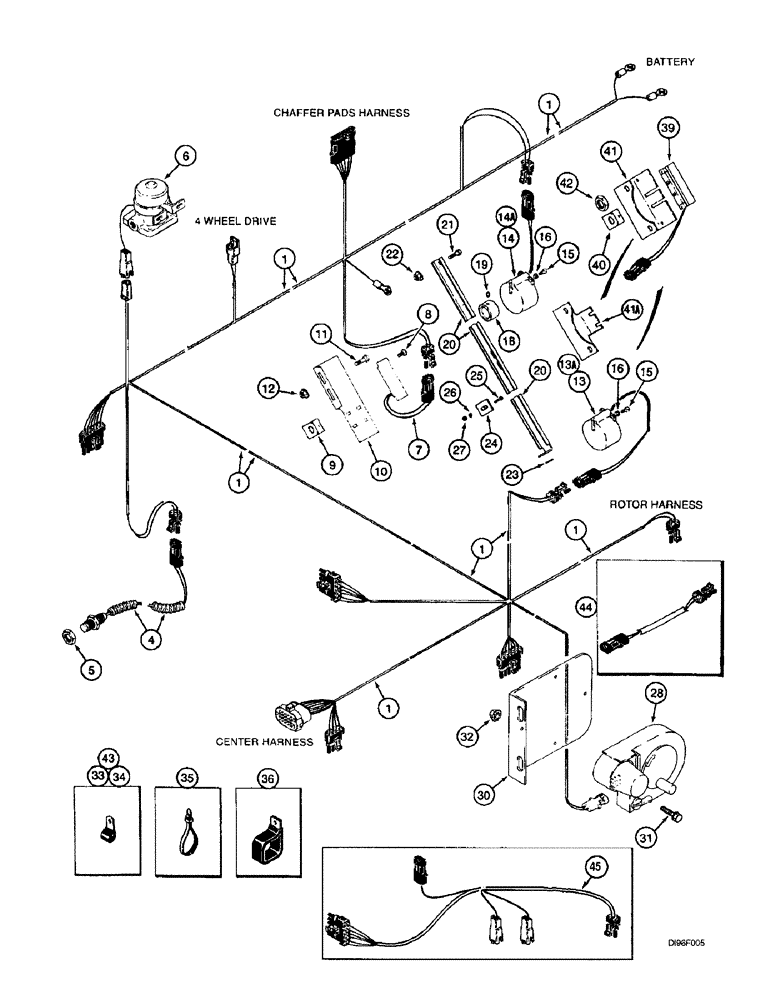

Запчасти Case IH 2166 (4-26) - LEFT-HAND SIDE HARNESS (06) - ELECTRICAL

1

141660A5

HARNESS

ASSEMBLY - side, left-hand, Includes: Ref. 2 & 3

1шт.

2

187308A1

CAP

- splice connector, not shown

3шт.

3

187309A1

BAR

- buss, 6 terminal, not shown, cut as needed

3шт.

4

1252494C2

TRANSMITTER

SENSOR - engine RPM

1шт.

5

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NF

2шт.

6

196503C2

PUMP

- fuel, electric

1шт.

7

245364C1

SWITCH

- monitor control, shoe speed

1шт.

8

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

2шт.

9

187996C1

MAGNET

- shoe sensor

1шт.

10

187998C3

BRACKET

SUPPORT - sensor

1шт.

11

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

13

1345485C1

TRANSMITTER

SENSOR - monitor control, beater, use with Ref. 44 adapter, see Ref. 39 below for chopper sensor, no longer available, order sensor 1345485C3, Ref. 13A

1шт.

13a

1345485C3

TRANSMITTER

SENSOR - beater, does not require Ref. 44 adapter

1шт.

14

1345482C1

TRANSMITTER

SENSOR - monitor control, tailings elevator speed, use with Ref. 44 adapter, no longer available, order sensor 1345482C2, Ref. 14A

1шт.

14a

1345482C3

TRANSMITTER

SENSOR - tailings elevator speed, does not require Ref. 44 adapter

1шт.

15

470-1086

SCREW,Pan HD, #8 - 32 x 3/8"

- machine, pan head slotted, No. 8 NC x 3/8 inch

4шт.

16

492-11008

LOCK WASHER,#8

Washer, Lock, #8

4шт.

18

455102R21

COLLAR

- locking, bearing, Includes: set screw

1шт.

19

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - self-tapping, hex washer head, 1/4-14 x 1/2 inch

1шт.

20

116892A1

CHANNEL

- sensor mounting

1шт.

21

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

3шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

23

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

24

1301560C1

SUPPORT

BRACKET - mounting

1шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

28

127813A1

LAMP

ASSEMBLY - service, left-hand, Includes: Ref. 29

1шт.

29

P40556

BULB,12V, 10W

- lamp, 12 volt, not shown

1шт.

30

139049A2

SUPPORT

Bracket - Lamp Mounting, LH

1шт.

31

905-8020

BOLT,Hex Flg, M8 x 20mm

- hex serrated flange, 8 - 1.25 x 20 mm

4шт.

32

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

33

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type 7/8", Insul, 3/8" Bolt

3шт.

34

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

2шт.

35

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

2шт.

36

1301387C2

CLIP

CLAMP - square, 2 inch ID

3шт.

37

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Clamp Mounting, Not Shown Hex Flg, M8 x 25, 8.8

3шт.

38

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8, Clamp mounting, not shown

3шт.

39

245410C1

TRANSMITTER

SENSOR - monitor control, chopper, used in place of Ref. 13 on models with straw chopper

1шт.

40

178799C1

CLAMP,44.45mm - 63.5mm

MAGNET - sensor, used with Ref. 39, sensor

1шт.

41

144706A1

SUPPORT

BRACKET - sensor mounting, used on models with straw chopper, no longer available, order bracket 144706A3, Ref. 41A

1шт.

41a

144706A3

SUPPORT

BRACKET - sensor mounting, used on models with straw chopper

1шт.

42

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

43

362666R1

CLIP

CLAMP - retaining

2шт.

44

224073A1

ADAPTER

- shaft speed sensor filter, use with Ref. 13 or 14 sensor to alleviate the flashing lamps of the grain scan monitor

1шт.

45

221134A1

HARNESS

- grain scan, prior to combine P.I.N. JJC0173150

1шт.
