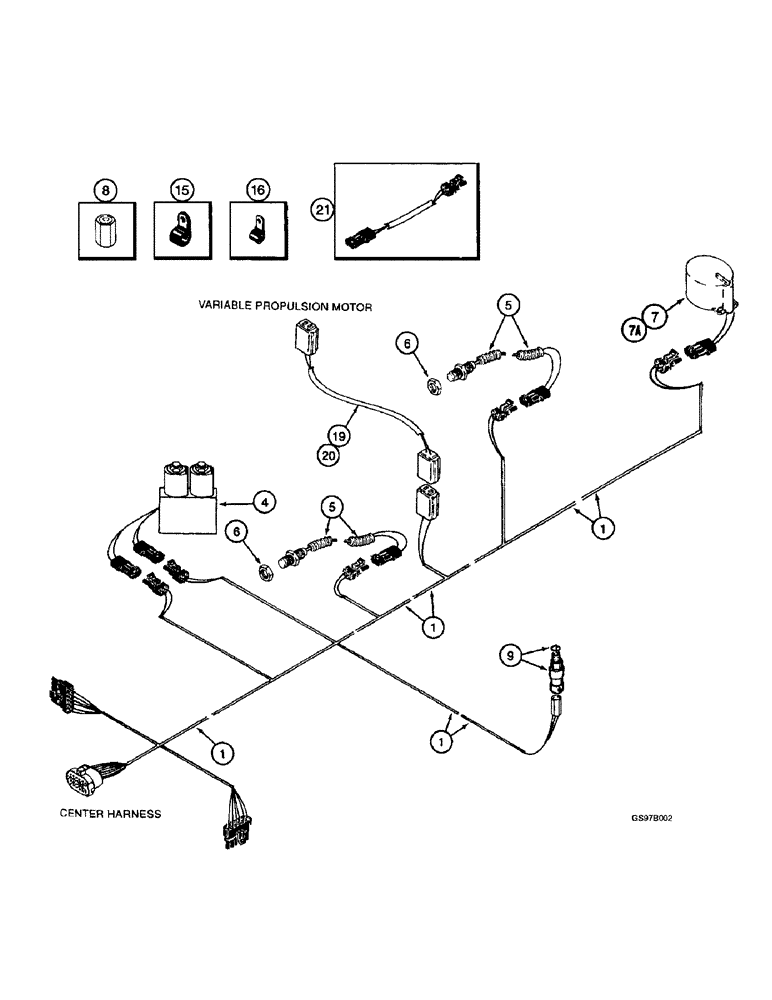

Запчасти Case IH 2166 (4-24) - LOWER HARNESS (06) - ELECTRICAL

1

141727A2

HARNESS

ASSEMBLY - lower, prior to combine P.I.N. JJC0182025, Includes: Ref. 2 & 3

1шт.

1

243187A1

WIRE HARNESS

HARNESS ASSEMBLY - lower, combine P.I.N. JJC0182025 and after, Includes: Ref. 2 & 3

1шт.

2

187308A1

CAP

- splice connector, not shown

2шт.

3

187309A1

BAR

- buss, 6 terminal, not shown, cut as needed

2шт.

4

129010A3

VALVE

ASSEMBLY - parking brake and feeder clutch, parts list Figure 8-40

1шт.

5

245193C2

SENSOR

- ground speed and fan speed

2шт.

6

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NF, ground and fan speed sensors

2шт.

7

1345482C1

TRANSMITTER

SENSOR - monitor control, clean grain speed, use with Ref. 21 adapter, no longer available, order sensor 1345482C3, Ref. 7A

1шт.

7a

1345482C3

TRANSMITTER

SENSOR - with resistor, clean grain speed, does not require Ref. 21 adapter

1шт.

8

106666A1

SPECIAL NUT

- hex, special, 3/8 inch NC, left-hand thread

1шт.

9

122761A1

SENSOR

- float pressure, Includes: O-ring, See Figure 8-28 for manifold

1шт.

15

92386C1

CLAMP,7/8", Insul, 7/16" Bolt

- P-type, 7/8 inch ID

3шт.

16

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

Retaining (Replaces clamp 363444R1) J, 9/16" Insul, 3/8" Bolt

6шт.

17

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Not Shown Hex Flg, M8 x 25, 8.8

2шт.

18

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8, Not shown

3шт.

19

226149A1

DIODE

ASSEMBLY - motor, two speed variable propulsion, solenoid to lower harness, if used, Includes: Ref. 20

1шт.

REF. #19. In 1997 production the diode was incorporated into the solenoid assembly. Therefore diode part #226149a1 is not used on the later production. See NHE SB 014.1 98 for coil part numbers. 12-2-98 TD TSG.

1шт.

20

113699A1

RECTIFIER

- locking, 2-5/8 inch long

1шт.

21

224073A1

ADAPTER

- shaft speed sensor filter, use with Ref. 7 sensor to alleviate the flashing lamps of the grain scan monitor

1шт.

FOOTNOTE

1шт.

Parking Brake Pressure switch is p/n 125829a1. BB TSG 10/16/97

1шт.
